KRASO Floor Penetration Type BDF - thermally insulated -
KRASO Floor Penetration Type BDF - thermally insulated -
in accordance with DIN EN 14758, for installation in waterproof base plates for connection to KG/HT pipes or KG 2000 lines, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side and thermally insulated body surrounding approx. 5 cm, KRASO Cover as installation aid
| DafStB waterproof concrete guidline: Stress class 1 + 2
Simple, tight and approved
+ The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.
+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).
+ Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ Also available with oil- and bitumen resistant KRASO Foil Flange.
+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes.
+ Including KRASO Cover as an installation aid.
+ KRASO Product Innovation: Type BDF as thermally insulated floor penetration!
+
DafStB waterproof concrete guidline: Stress class 1 + 2
Info
Scope of supply:
KRASO Type BDF - thermally insulated -, KRASO Cover as installation aid
KRASO Type BDF - thermally insulated -, KRASO Cover as installation aid
Downloads
Produktinformation
Prüfzeugnis
DWG-Dateien
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_TPE (310.25 KiB)
-
DWG_KRASO_Typ_BDF_wärmegedämmt_DN110 (294.64 KiB)
|

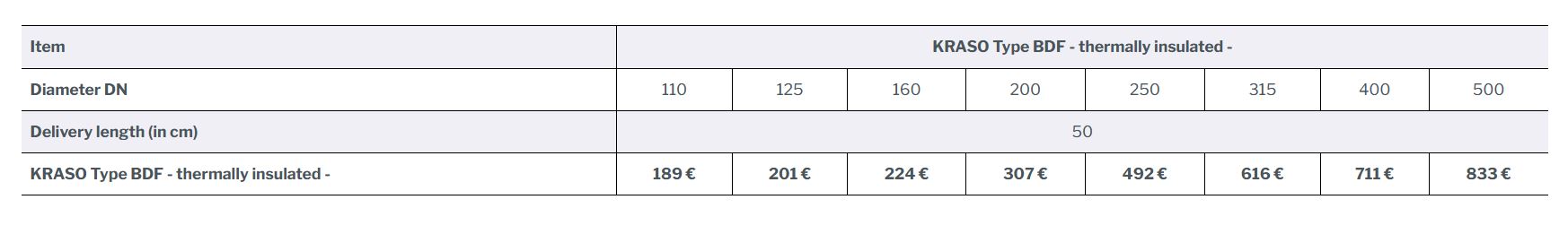

Type / Item |
KRASO Type BDF - thermally insulated - |
|||||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
|
Delivery length (in cm) |
50 |
|||||||
KRASO Floor Drain - thermally insulated -
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal
| DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Inside and outside - tight and dry
+ For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight!
+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs!
+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Wall Collar
for pressure-tight integration of pipelines with smooth surface (KG, KG 2000, HT) in waterproof concrete structures: Base plate and wall, MPA-tested up to 5 bar| DafStB waterproof concrete guideline: Stress class 1 + 2 + fast, simple and tight solution for sealing pipes in waterproof concrete constructions - base plate and wall
+ water-tight integration of pipelines: MPA-tested up to 5 bar! + Methane gas resistant! + for almost all smooth pipes in DN 110, DN 125 and DN 160: KG, KG 2000 and HT pipes + tool-free assembly - simple and fast:
the KRASO Wall Collar only has to be pulled over the pipe! The KRASO Wall Collar comes with a cover can be used during the construction period! + DafStB waterproof concrete guideline: Stress class 1 + 2
KRASO Wall Collar
for pressure-tight integration of pipelines with smooth surface (KG, KG 2000, HT) in waterproof concrete structures: Base plate and wall, MPA-tested up to 5 bar| DafStB waterproof concrete guideline: Stress class 1 + 2 + fast, simple and tight solution for sealing pipes in waterproof concrete constructions - base plate and wall
+ water-tight integration of pipelines: MPA-tested up to 5 bar! + Methane gas resistant! + for almost all smooth pipes in DN 110, DN 125 and DN 160: KG, KG 2000 and HT pipes + tool-free assembly - simple and fast:
the KRASO Wall Collar only has to be pulled over the pipe! The KRASO Wall Collar comes with a cover can be used during the construction period! + DafStB waterproof concrete guideline: Stress class 1 + 2
KRASO Floor Penetration Type BDF - KG 2000
in accordance with DIN EN 14758, for the installation in waterproof base plates for connection to system KG 2000 lines, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Cover as installation aid, also available with KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50 | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Simple, tight and approved
+ The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).
+ Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ Also available with oil- and bitumen resistant KRASO Foil Flange.+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes.
+ Including KRASO Cover as an installation aid.
+ KRASO Product Innovation: Type BDF as thermally insulated floor penetration!
+
DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Rodding eye for KRASO Type BDF
15 x 15 cm - screwable -Simple, tight and approved - KRASO Floor Penetration Type BDF+ The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).
+ Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ Also available with oil- and bitumen resistant KRASO Foil Flange.+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes.
+ Including KRASO Cover as an installation aid.
+ KRASO Product Innovation: Type BDF as thermally insulated floor penetration!
+
DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Wall Collar Lightning Protection Duo
for the waterproof integration of earthings with factory-closed openings| DafStB waterproof concrete guideline: Stress class 1 + 2+ for the waterproof integration of earthings with factory-closed openings: rectangular earthing tape (30 x 3,5 mm) and round earthing wire (ø 8 - 10 mm) + with Torque Control Wrench KRASO DKS: for safe and easy tightening of tension straps + MPA-tested up to 5 bar! + Methane gas resistant! + Radon tight – according to FHRK leaflet MB 101. + DafStB waterproof concrete guideline: Stress class 1 + 2
KRASO Floor Penetration Type BDF
in accordance with DIN EN 1401, for installation in waterproof base plates for connection to KG/ HT pipes, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Cover as installation aid, also available with KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50 | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-ESimple, tight and approved
+ The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!
+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).
+ Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ Also available with oil- and bitumen resistant KRASO Foil Flange.+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes.
+ Including KRASO Cover as an installation aid.
+ KRASO Product Innovation: Type BDF as thermally insulated floor penetration!
+
DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Penetration Type FBV-BDF
floor penetration for a conformist integration of FBV-films, made of high-quality, dimensionally and pressure stable solid wall material or KG 2000 (polypropylene (PP), mineral- filled, smooth walls, long-lasting, high impact strength), for installation in waterproof concrete base plates with fresh concrete composite film on the part of the building site, using the 20 cm sourrounding, angular FBV-sealing flange, Torque Control Nut KRASO DKM,
for connection to KG, HT or KG 2000 lines, approx. 50 cm long, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Cover as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2
The effective sealing system
+ Floor Penetration for a conformist integration of fresh concrete composite films.
+ Vendor independence: fresh concrete composite films (FBV) of all vendors can be integrated.
+ KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, surrounding 20 cm.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ KRASO Floor Penetration Type BDF: the approved floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar! Radon-tight!+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ Formed plug-in sleeve on one side for the connection of KG, HT or KG 2000 - pipes.
+ Including KRASO Cover as an installation aid.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Wall Collar
for pressure-tight integration of pipelines with smooth surface (KG, KG 2000, HT) in waterproof concrete structures: Base plate and wall, MPA-tested up to 5 bar| DafStB waterproof concrete guideline: Stress class 1 + 2 + fast, simple and tight solution for sealing pipes in waterproof concrete constructions - base plate and wall
+ water-tight integration of pipelines: MPA-tested up to 5 bar!+ IAF-tested: radon tight!+ Methane gas resistant! + for almost all smooth pipes in DN 110, DN 125 and DN 160: KG, KG 2000 and HT pipes + tool-free assembly - simple and fast:
the KRASO Wall Collar only has to be pulled over the pipe! The KRASO Wall Collar comes with a cover can be used during the construction period! + DafStB waterproof concrete guideline: Stress class 1 + 2
KRASO Wall Penetration Type B - thermally insulated -
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG, HT or KG 2000 lines on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid and thermally insulated body surrounding approx. 5 cm | DafStB waterproof concrete guidline: Stress class 1 + 2
The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
