Cable Penetrations

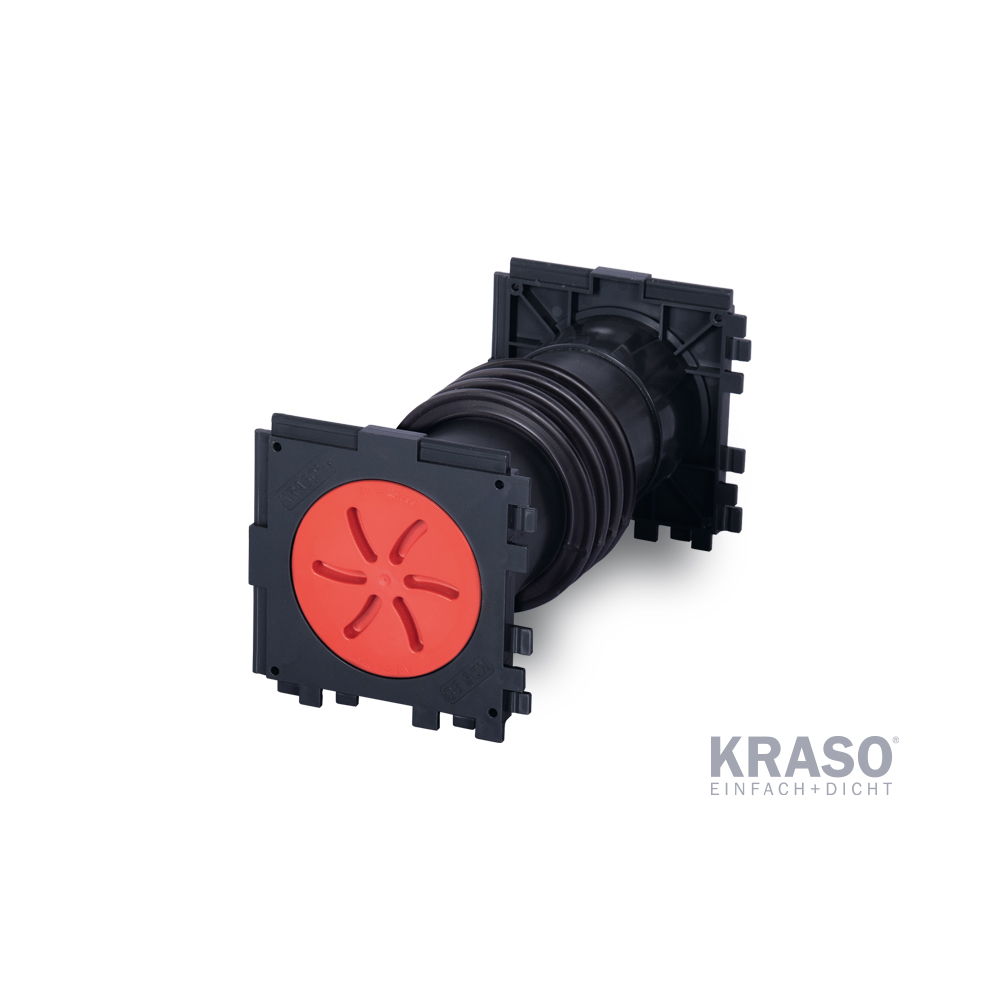

KRASO Cable Penetration KDS double wall penetration

cable penetration system for concreting, with plug-in system on both sides for forming packages, for the later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply).Optionally available: KRASO Spacer 40 mm for KDS 150 double wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the double wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Penetration KDS single wall penetration

cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal and KDS closure covers, with plug-in system on one side for forming packages, for later installation of media lines using a KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS 150 single wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

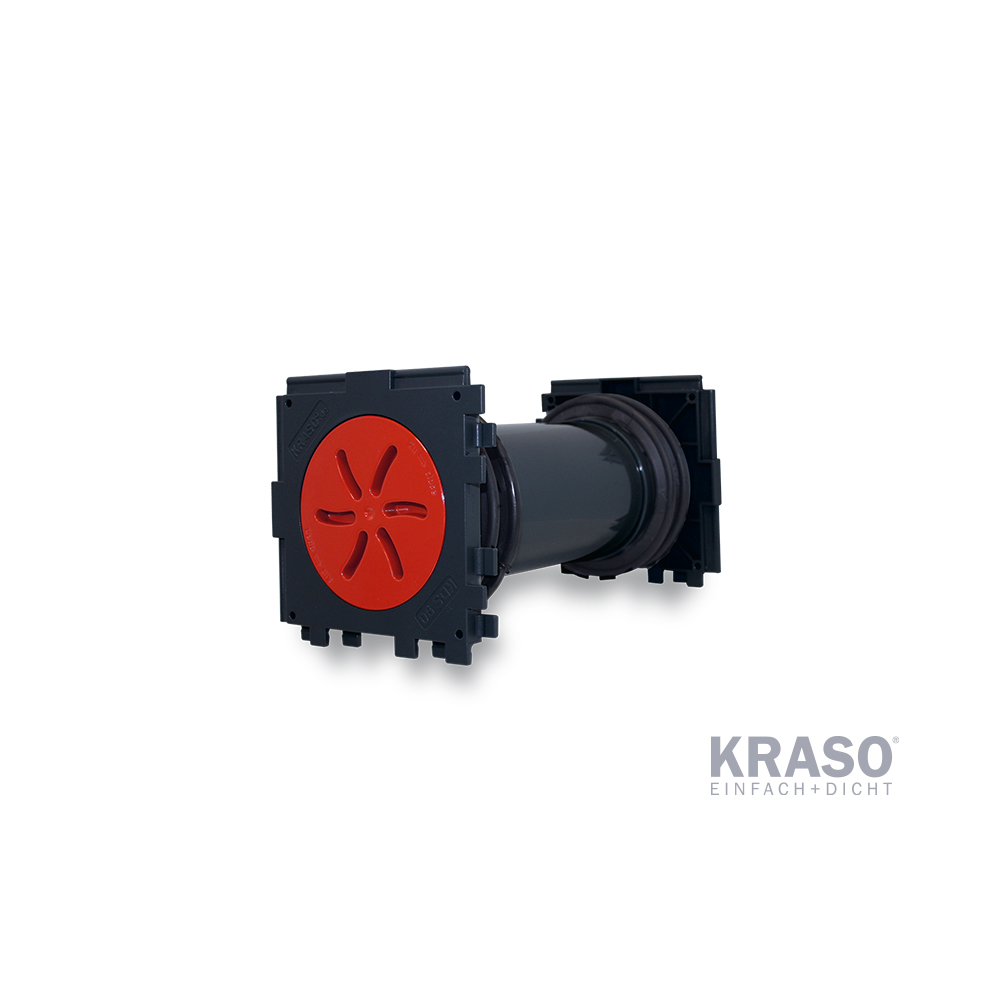

KRASO Cable Penetration KDS/DFW double wall penetration

cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on both sides and 2 KDS closure covers, with plug-in system on both sides for forming packages, for the later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS/DFW 150 double wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the double wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

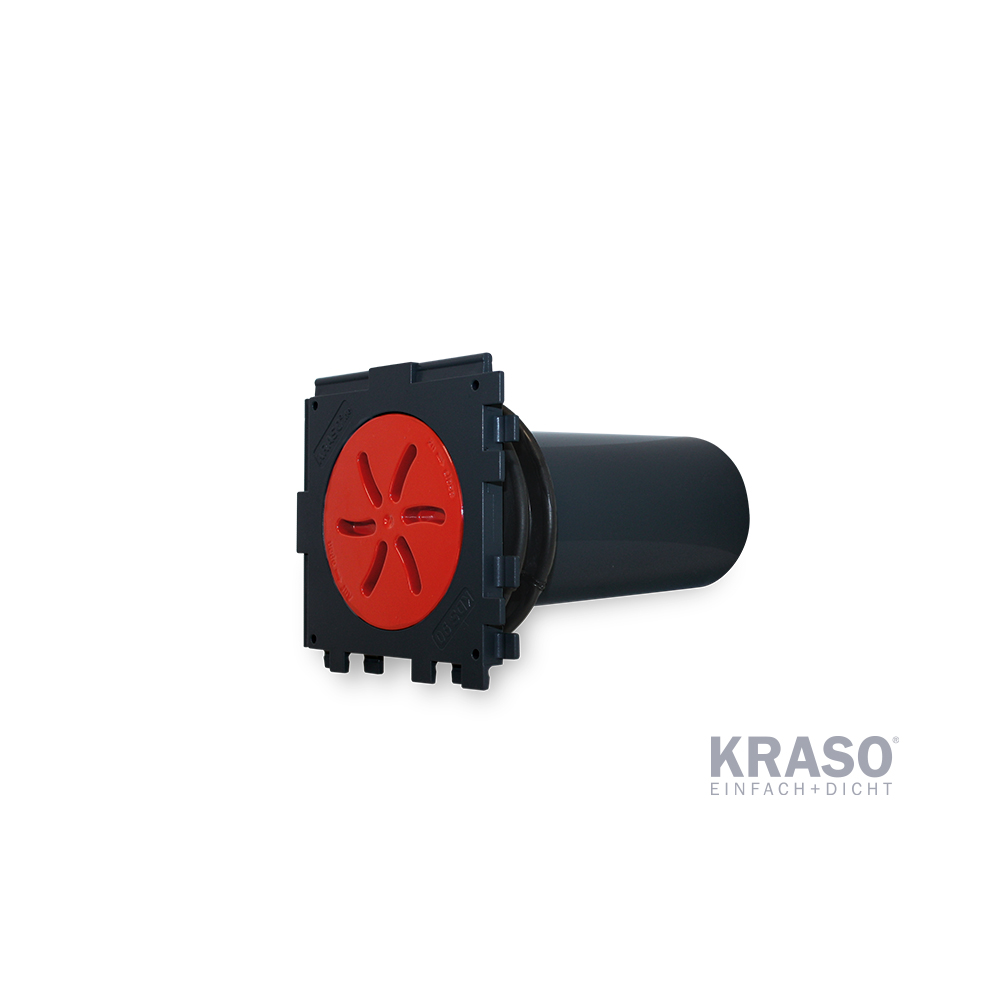

KRASO Cable Penetration KDS/DFW single wall penetration

cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on one side and KDS closure cover, with plug-in system on one side for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS/DFW 150 single wall penetration for enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to the water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

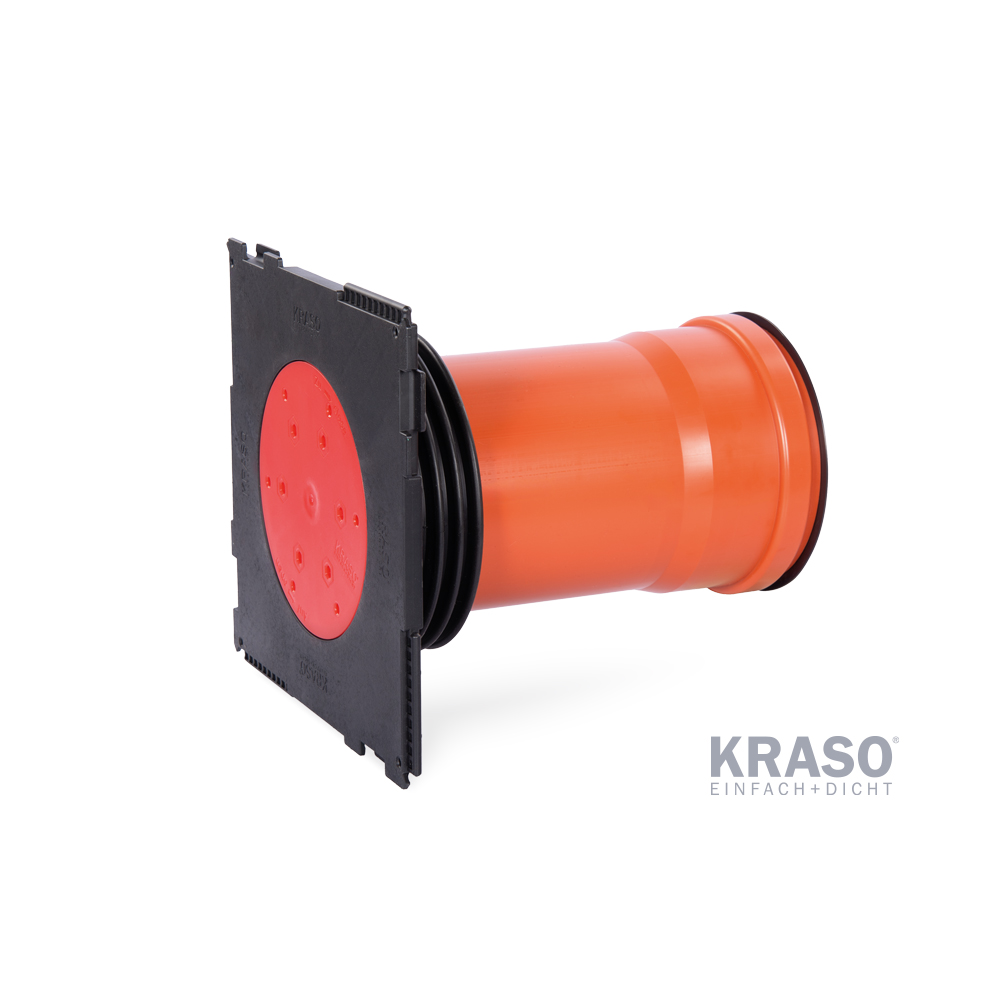

KRASO Cable Penetration KDS 150 single wall penetration with plug-in sleeve

for later installation of pipes or cables using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or KRASO System Cover KDS 150 (not included in the scope of supply), with water pressure tight surrounding KRASO 4 Seal, with plug-in system on one side for forming packages, one side with plug-in sleeve including connection for KG, HT or KG 2000 pipes DN 160 | DafStB waterproof concrete guideline: stress class 1 + 2Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

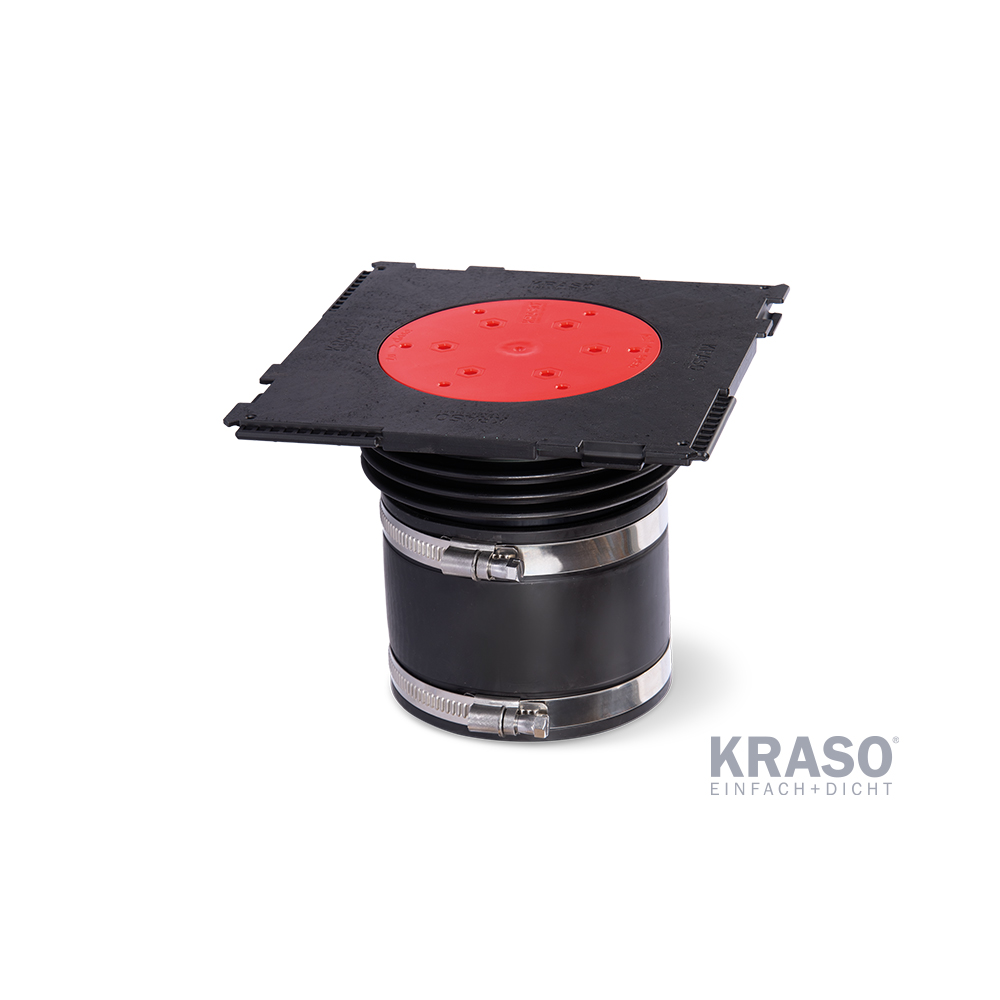

KRASO Cable Penetration KDS 150 single floor penetration with hose connection

for later installation of pipes or cables using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or KRASO System Cover KDS 150 (not included in the scope of supply), with water pressure tight surrounding KRASO 4 Seal, with plug-in system on one side for forming packages, one with hose connection including connection e.g. for KRASO FLS - Flexible Empty Pipe System | DafStB waterproof concrete guideline: stress class 1+2Compatible, tight, secure - the single wall penetration+ Compatible with all other current systems! Tight due to the water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Penetration KDS 150 double wall penetration with trowel flange

cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal, incl. 2 KDS closure covers, with trowel flange, tissue coated or roughened, surrounding approx. 7 cm for a secure connection of bitumen or reactive sealing (e.g. KMB) or a fresh concrete composite system, for later installation of media lines using KRASO System Sealing Insert KDS 150 or for connection of empty pipe hoses using KRASO System Cover KDS 150 | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the double wall penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial or commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45 ° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Penetration KDS 150 single wall penetration with trowel flange

cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal, incl. KDS closure cover, with trowel flange, tissue coated or roughened, surrounding approx. 7 cm, for a secure connection of bitumen and reactive sealing or a fresh concrete composite system, for later installation of media lines using KRASO System Sealing Insert KDS or for connecting empty pipe hoses using KRASO System Cover | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the single cable penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings:public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Protrusion Flange FDS 150

protrusion flange made of stainless steel-reinforced plastic, for dowel-fixing in front of a core drilling for the connection of KRASO System Cover KDS 150 with hose adapter for KRASO FLS, KRASO System Sealing Insert KDS 150 | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the cable penetration system+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings:public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Penetration KDS 150 double wall penetration - 45 degrees -

with pre-installed clamps and styrofoam holders for installation at an angle of 45° | DafStB waterproof concrete guideline: stress class 1 + 2Compatible, tight, secure - the double wall penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ Matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Penetration KDS 150 FL/ZE double wall penetration

cable penetration KDS 150 FL/ZE as double wall penetration, with fixed-loose flange and exterior protrusion flange FDS 150 for concreting, for installation of media pipes using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or for connection of KRASO KDS 150 Accessories (e.g. system cover) with bayonet fitting, made of non-corrosive stainless steel V2A, with water pressure tight surrounding KRASO 2 Seal, for buildings with exterior sealing (“black tank“) against pressing water / non-pressing water according DIN 18533. Available in non-corrosive stainless steel V2A or with special coating | DIN 18533 W2.1 -E, W2.2 -E Compatible, tight, secure - the double wall penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose!+ DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Cable Inlet Box System KDS 150

for the installation of cables and utility lines such as e.g. water - electricity - telecommunication etc. in buildings without basement. Attention: do not use a KRASO System Sealing Insert KDS 150 for the sealing of media lines, but use KRASO Sealing Inserts instead! | DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -EThe flexible system for industry and commercial buildings+ The secure and reliable way for the installation of cables and pipes right into buildings: with a radius of 650 mm or 1000 mm, main pipes and cable protective hoses can be connected at a 90-degree angle to buildings without basement+ KRASO Cable Penetration System KDS 150: flexible and combinable in various ways+ The KRASO Cable Inlet Box System KDS 150 can be expanded to any number of rows thanks to the plug-in system - depending on your requirements!+ For the installation of cables and pipes such as water, electricity, telecommunication etc. into buildings without a basement: the perfect solution for industrial and commercial buildings!+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal+ With stable installation device for correct positioning before concreting+ Flexible plug-in possibilities on the outer side using KRASO Cable Penetration System KDS 150+ Additional media pipe sealing from the inside using KRASO Sealing Inserts+ Included in the scope of supply: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E

KRASO FLS - Flexible Empty Pipe System

flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4 and 3 bar, under-pressures of 0,7 and 0,5 bar , heavy design for high mechanical load, smooth interior for smooth cable pulling, smooth exterior for optimal sealing, flexible, enhanced resistance against pressure and vacuum, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO Quick Sealing Plug for FLS

for sealing the KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO Hose Connection

for the connection of e.g. KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS +Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO Spacer

guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather- and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Sealing Insert KDS 150 Universal Multiple - split -

for installation of one or several media lines/cables, for installation into the bayonet fitting of KRASO Cable Penetration KDS 150, split design for retrofit installation, Torque Control Nut KRASO DKM, 30 mm seal, external diameter 160 mm, specifically for the use in cable penetrations | DafStB waterproof concrete guideline: stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Cover KDS 150 with hose adapter

incl. bayonet fitting with union nut and anti-twist lock, hose adapter for the connection of KRASO FLS, PE corrugated pipes or PVC and PP pipes to KRASO Cable Penetration KDS 150. In combination with KRASO FLS water pressure tight up to 2,5 bar. Scope of application in the table below | DafStB waterproof concrete guideline: stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Cover KDS 150 with sleeve

incl. bayonet fitting with unit nut and anti-twist lock, sleeve for the connection of PVC and PP pipes to KRASO Cable Penetration KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Cover KDS 150 - heat-shrink technology

incl. bayonett fitting with unit nut and anti-twist lock (prevents unintentional opening), with 1, 3 or 7 adapters for installation of pipes or cables, incl. heat-shrink hose (length approx. 20 cm), connection via heat-shrink technology, KRASO System Cover KDS 150 - heat-shrink technology - 3-fold and 7-fold with factory-installed, water pressure tight cover, simple opening by knocking off before installation (on-site), scope of application in the table below | DafStB waterproof concrete guideline: stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetration and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Cover KDS 90 with hose adapter 90

incl. bayonet fitting, hose adapter for connection of KRASO FLS, PE corrugates pipes or PVC pipes to KRASO Cable Penetration KDS 90 | DafStB waterproof concrete guideline: stress class 1 + 2 Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

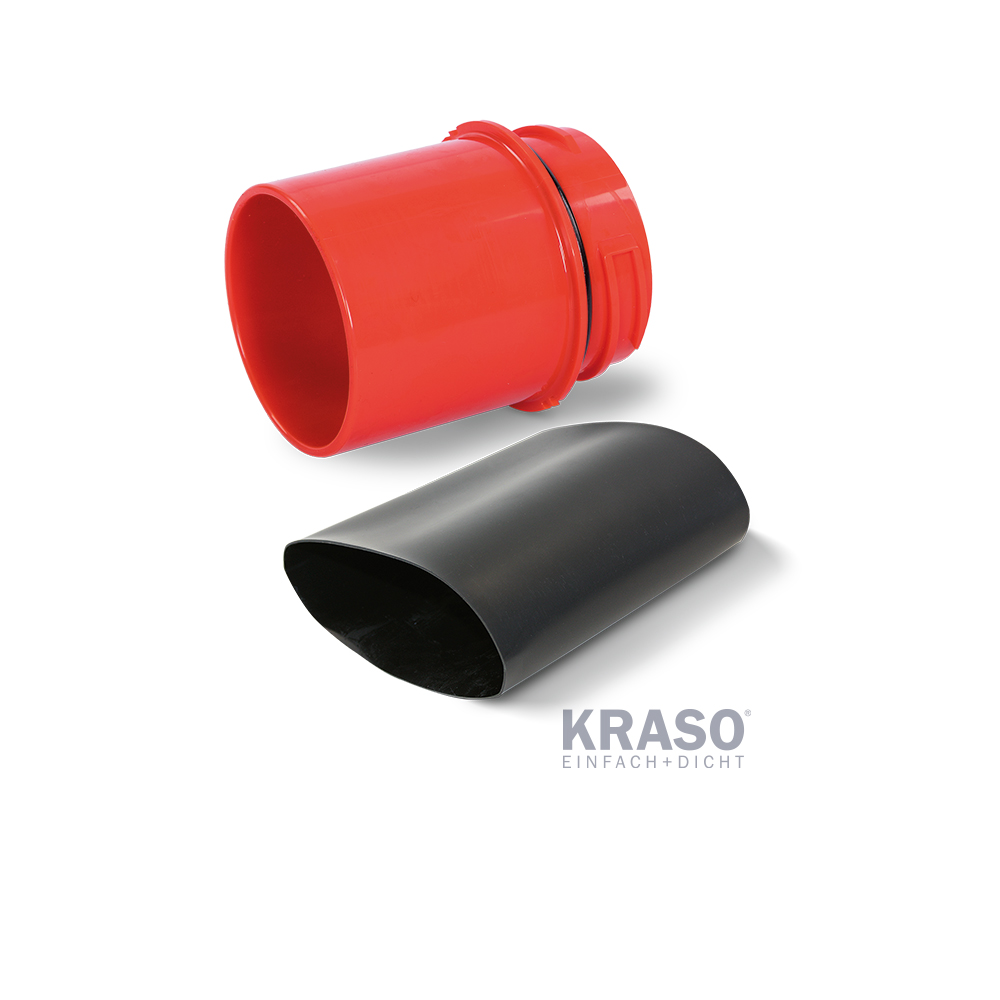

KRASO System Cover KDS 90 with heat-shrink hose

heat-shrink hose for KRASO System Cover KDS 90 (incl. in the scope of supply)Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO System Sealing Insert KDS 90 Universal

system sealing insert especially for installation in KRASO Cable Penetration KDS 90, 20 mm seal, against pressing water up to 1 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A. Also usable as blind plug for feed-through of pipes or cables. | DafStB waterproof concrete guideline: stress class 1 + 2 Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO Y-Wrench

Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
