KRASO Wall Collar
KRASO Wall Collar

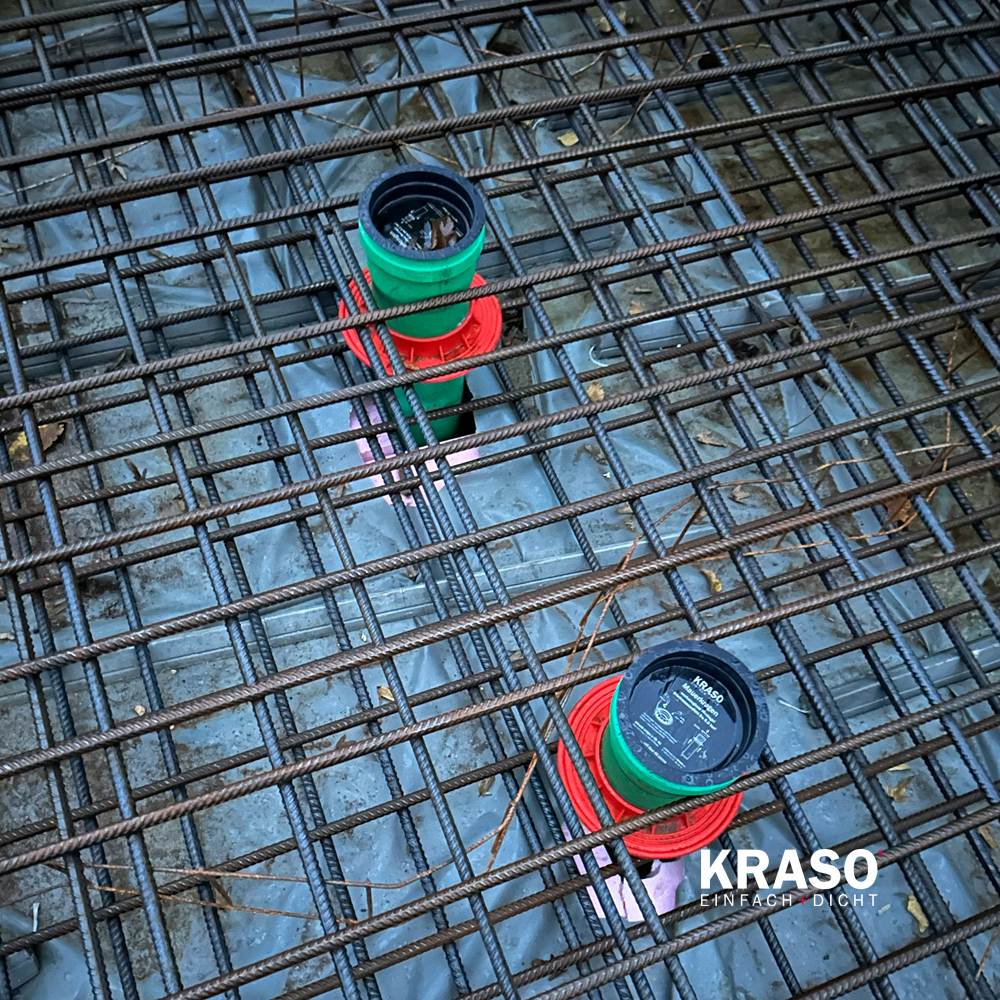

for water pressure tight connection of pipelines with a smooth surface (KG, KG 2000, HT) in waterproof concrete structures: base plate and wall, MPA-tested up to 5 bar | DafStB waterproof concrete guideline: stress class 1 + 2
Fast, simple and tight
+ The fast, simple and tight solution for sealing pipes in waterproof concrete structures –
base plate and wall
+
Water pressure tight connection of pipelines: MPA-tested up to 5 bar!
+ IAF-tested: radon-tight!
+
Resistant to methane gas!
+
For all smooth pipes in DN 110, DN 125, DN 160 and DN 200!
+

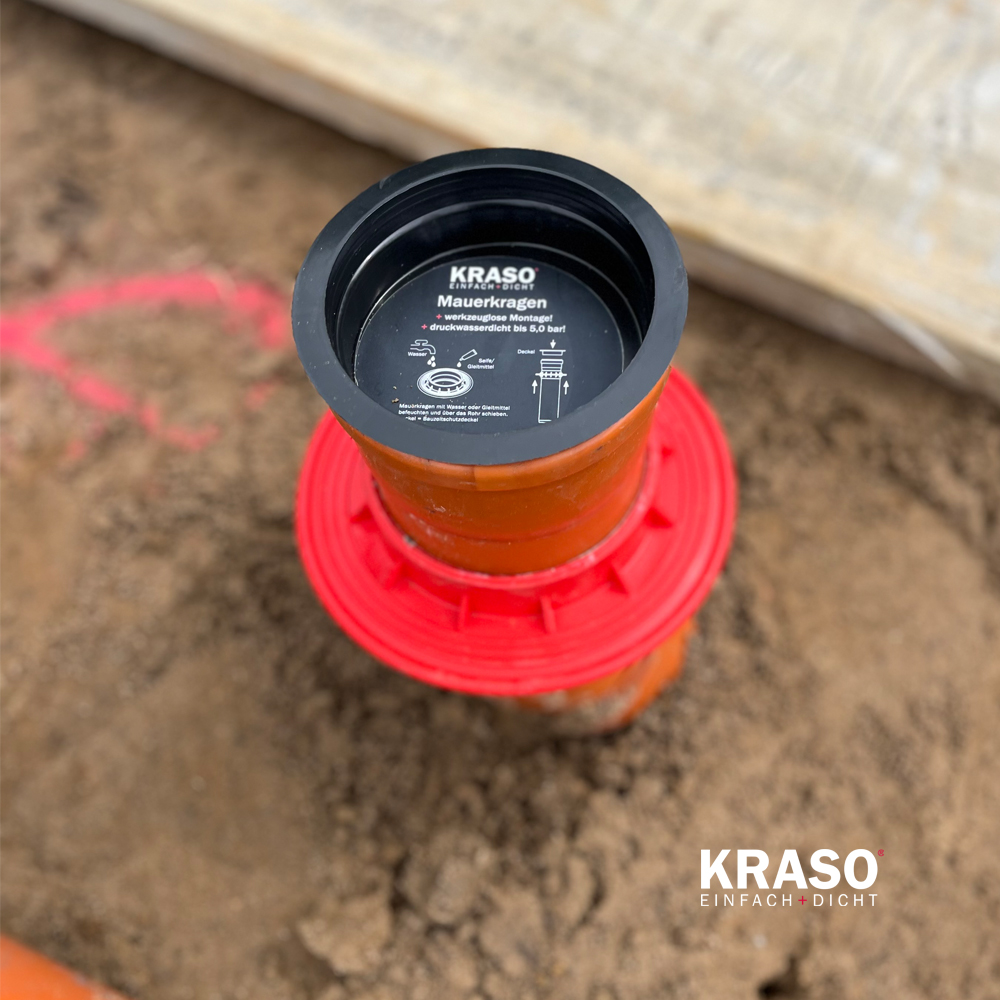

Tool-free assembly – simple and fast: simply pull the KRASO Wall Collar over the pipe
+
Including KRASO Cover as building period protective cover!
+
DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Wall Collar, KRASO Cover as building period protective cover
Further special designs available on request!

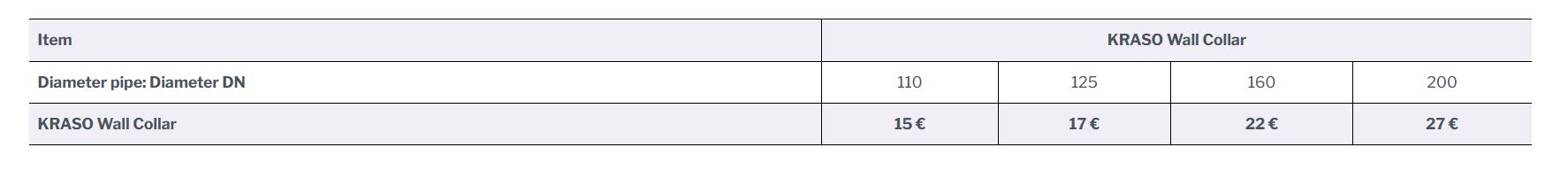

Item |
KRASO Wall Collar |
|||
|
Diameter pipe: Diameter DN |
110 |
125 |
160 |
200 |
|
KRASO Wall Collar |
15 € |
17 € |
22 € |
27 € |
KRASO Wall Collar DKS Universal
for water pressure tight connection of pipelines with a smooth surface in waterproof concrete structures: base plate and wall,
MPA-tested up to 5 bar| DafStB waterproof concrete guideline: stress class 1 + 2
Simple, tight, universally usable!
+
The fast, simple and tight solution for sealing pipes in waterproof concrete structures –
base plate and wall
+
Stepless onion ring technology! Scope of application 10 - 50 mm or 50 - 90 mm!
For all smooth cables and pipes!
+
Water pressure tight connection of pipelines: MPA-tested up to 5 bar!+
Radon-tight – according to FHRK leaflet MB 101!
+ Resistant to methane gas! +
With Torque Control Wrench KRASO DKS: for safe and easy tightening of straps
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Collar Lightning Protection Duo
for the water pressure tight integration of earthing cables, with factory-sealed openings: square earthing strap (30 x 3.5 mm) and earthing wire (ø 8 – 10 mm) | DafStB waterproof concrete guideline: stress class 1 + 2
Double the benefit, half the storage!
+
With Torque Control Wrench KRASO DKS: for safe and easy tightening of straps
+
MPA-tested up to 5 bar!
+
Resistant to methane gas!
+
Radon-tight – according to FHRK leaflet MB 101!+
DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Floor Penetration Type BDF
for connection to KG/HT pipes, also available with KRASO Foil Flange,
oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of
the foil flange, we recommend our adhesive and sealant KRASO PU 50 | DafStB
waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533
W1 -E
Simple, tight and approved+ KRASO 4 Seal – MPA-tested up
to 10 bar!+ IAF-tested : radon-tight+ Made of dimensionally stable and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures+ Also available in KG 2000: polypropylene (PP-MD), mineral- filled, smooth walls, long-lasting+ Also available with oil- and bitumen resistant KRASO Foil Flange+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes+ Including KRASO Cover as building period protective cover+ Also available as thermally insulated floor penetration!+
DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E
KRASO Universal Funnel
for the installation in waterproof concrete base plates for the connection of displaced KG/HT pipes and for the connection to KG/KG 2000 lines, with one-sided spigot, walkable building period protective cover. Optionally available: screwable KRASO Stainless Steel Clamping Flange for the connection to non-adhesive foils | DafStB waterproof concrete guideline: stress class 1 + 2The floor penetration for more flexibility
+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Break-resistant solid wall material, KG 2000 system compatible+ Displaced fall pipes can be corrected easily up to 45 degrees! + Integrated plug-in sleeve with diameter DN 110 and threefold reinforced lip ring+ Surrounding connection flange with textured surface+ Optionally available: screwable stainless steel clamping flange for fixed-loose flange construction+ Easy installation: ready-to-use, lugs, including walkable building period protective cover
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E
Häufig gestellte Fragen (FAQ)
Wofür wird der KRASO Mauerkragen verwendet?
Der KRASO Mauerkragen dient der druckwasserdichten Einbindung von Rohrleitungen in WU-Betonkonstruktionen wie Bodenplatten und Wänden.
Welche Rohrtypen können mit dem Mauerkragen abgedichtet werden?
Er ist geeignet für glatte Rohre wie KG -, KG 2000 - und HT - Rohre.
Bis zu welchem Druck ist der KRASO Mauerkragen geprüft?
Der Mauerkragen ist MPA-geprüft bis 5 bar Druckwasser.
Welche Durchmesser stehen zur Verfügung?
Es gibt Varianten für DN 110, DN 125, DN 160 und DN 200.
Ist der KRASO Mauerkragen radondicht?
Ja, der Mauerkragen ist IAF-geprüft radondicht.
Ist das Produkt methangasbeständig?
Ja, der KRASO Mauerkragen ist methangasbeständig.
Wie wird der Mauerkragen montiert?
Die Montage erfolgt werkzeuglos. Der Mauerkragen wird einfach über das Rohr geschoben.
Entspricht das Produkt der WU-Richtlinie?
Ja, der Mauerkragen ist geeignet für die Beanspruchungsklassen 1 und 2.
Was ist im Lieferumfang enthalten?
Im Lieferumfang befinden sich KRASO Mauerkragen und KRASO Deckel als Bauzeitschutzdeckel.
Gibt es Sonderanfertigungen?
Ja, abweichende Sonderanfertigungen sind auf Anfrage möglich.
