KRASO Floor Penetration Type BDF for KG 2000

for the connection to system KG 2000 lines, also available with KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50 | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E

Simple, tight and approved

+ KRASO 4 Seal - MPA-tested up to 10 bar!

+ IAF-tested: radon-tight!

+ Made of dimensionally stable and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures

+ For KG 2000: polypropylene (PP-M), mineral- filled, smooth walls, long-lasting

+ Also available with oil- and bitumen resistant KRASO Foil Flange

+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes

+ Including KRASO Cover as building period protective cover

+ Also available as thermally insulated floor penetration!

+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E

Info

Scope of supply:

KRASO Type BDF for KG 2000 or KRASO Type BDF for KG 2000 with foil flange, KRASO Cover as building period protective cover

Further diameters and lengths from 50 cm available on request!

Downloads

KRASO Floor Penetration Type BDF for KG 2000

Installation instructions KRASO Floor Penetration Type BDF for KG 2000

Installation instructions KRASO Floor Penetration Type BDF for KG 2000 with foil flange

Product Information KRASO Floor Penetration Type BDF for KG 2000

Prüfbericht KRASO Vierstegdichtung

Prüfbericht KRASO Vierstegdichtung TPE

Technical Data Sheet KRASO Floor Penetration Type BDF for KG 2000

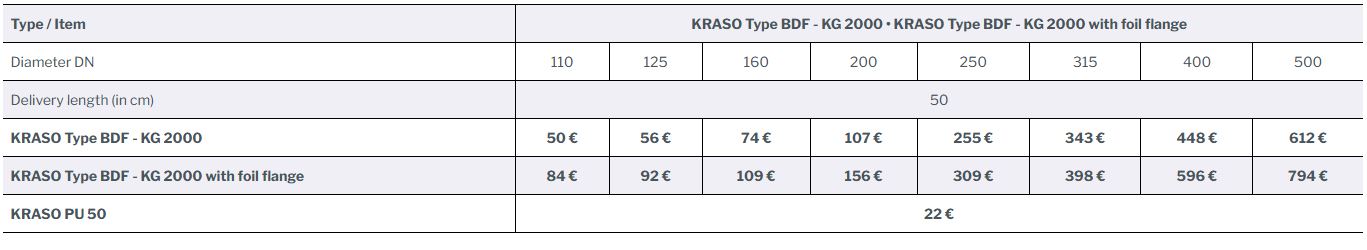

Item	KRASO Type BDF for KG 2000 • KRASO Type BDF for KG 2000 with foil flange
Diameter DN	110	125	160	200	250	315	400	500
Delivery length (in cm)	50
KRASO Type BDF for KG 2000	50 €	56 €	74 €	107 €	255 €	343 €	448 €	612 €
KRASO Type BDF for KG 2000 with foil flange	84 €	92 €	109 €	156 €	309 €	398 €	596 €	794 €
KRASO PU 50	22 €
