KRASO Floor Penetration Type BDF

in accordance with DIN EN 1401, for installation in waterproof base plates for connection to KG/ HT pipes, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Cover as installation aid, also available with KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50 | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E

Simple, tight and approved

+ The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar!

+ Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.

+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures.

+ Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).

+ Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.

+ Also available with oil- and bitumen resistant KRASO Foil Flange.

+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes.

+ Including KRASO Cover as an installation aid.

+ KRASO Product Innovation: Type BDF as thermally insulated floor penetration!

+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E

Info

Scope of supply:

KRASO Type BDF or KRASO Type BDF with foil flange, KRASO Cover as installation aid

Downloads

Produktinformation

Produktinfo_KRASO_Bodendurchfuehrung_Typ_BDF (2.82 MiB)

Datenblatt

Datenblatt_KRASO_Bodendurchführung_Typ_BDF+F_zv (252.94 KiB)
EN_Data_Sheet_KRASO_Floor-Penetration_Type BDF + F (344.62 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)

DWG-Dateien

DWG_KRASO_Typ_BDF_DN_110 (329.98 KiB)

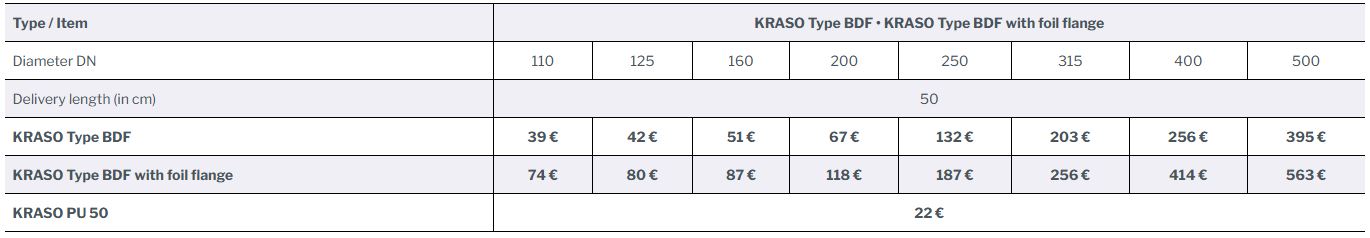

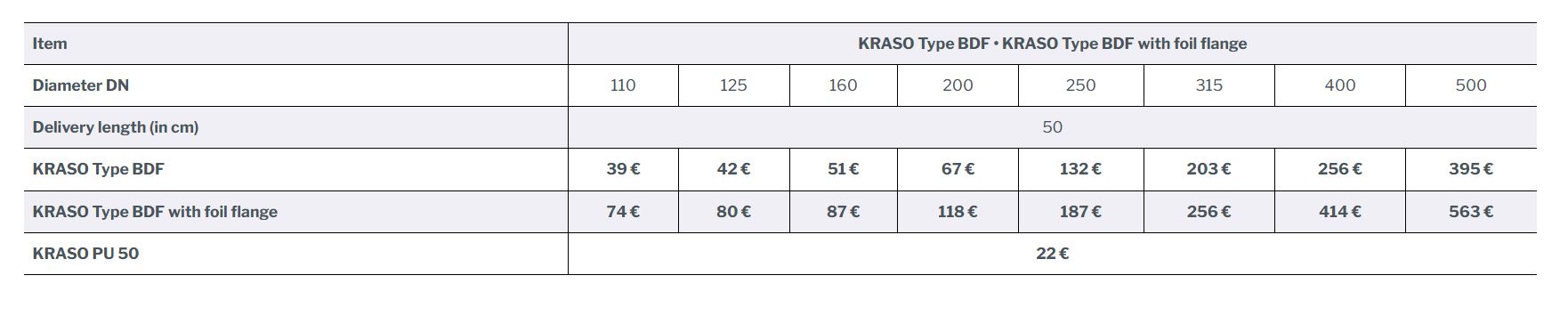

Type / Item	KRASO Type BDF • KRASO Type BDF with foil flange
Diameter DN	110	125	160	200	250	315	400	500
Delivery length (in cm)	50

Downloads auf ausschreiben.de

KRASO Wall Penetration Type FR

in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2 Always the right direction of flow + Thanks to the KRASO Wall Penetration Type FR waste water always maintains the correct direction of flow! Unnecessary edges are prevented. Blocked pipes: impossible! + The flexible and yet watertight connection to the pipe system means that stresses due to settling of the KG lines are prevented! + Basements and cellars remain dry thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal and are protected from radon. + Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of solid wall material! Also available as KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting. + Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO Wall Penetration Type FR - KG 2000

in accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2 Always the right direction of flow + Thanks to the KRASO Wall Penetration Type FR waste water always maintains the correct direction of flow! Unnecessary edges are prevented. Blocked pipes: impossible! + The flexible and yet watertight connection to the pipe system means that stresses due to settling of the KG lines are prevented! + Basements and cellars remain dry thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal and are protected from radon. + Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of solid wall material! Also available as KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting. + Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000). + DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO Wall Penetration Type FBV-FR - flow direction

wall penetration for a conformist integration of FBV-films, in flow direction, for installation in waterproof concrete walls with with fresh concrete composite film on the part of the building site, using the 20 cm sourrounding, angular FBV-sealing flange, incl. frame for an easy fixation, Torque Control Nut KRASO DKM, for connection to KG, HT or KG 2000 lines on both sides. Formed plug-in sleeve on one side, one-sided spigot, with water pressure tight surrounding KRASO 4 Seal and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2 Always the right direction of flow using FBV-system + Wall Penetration for a conformist integration of fresh concrete composite films. + Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated. + KRASO FBV-Sealing Flange made of non-corrosive stainless steel V2A with angular fresh concrete composite film, 20 cm surrounding.+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thanks to the KRASO Wall Penetration Type FR waste water always maintains the correct direction of flow! Unnecessary edges are prevented. Blocked pipes: impossible! + The flexible and yet watertight connection to the pipe system means that stresses due to settling of the KG lines are prevented! + Basements and cellars remain dry thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal and are protected from radon. + Made of solid wall material! Also available as KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO Wall Penetration Type Universal

in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal. The markings are for a simple shortening on site to standard wall thicknesses | DafStB waterproof concrete guidline: Stress class 1 + 2The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures. + Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration! + DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO Floor Penetration Type BDF - thermally insulated -

in accordance with DIN EN 14758, for installation in waterproof base plates for connection to KG/HT pipes or KG 2000 lines, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side and thermally insulated body surrounding approx. 5 cm, KRASO Cover as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2Simple, tight and approved + The proven floor penetration with KRASO 4 Seal - MPA-tested up to 10 bar! + Radon-tight: prevents from a harmful to health concentration of the radioactive noble gas.+ Made of pressure- and dimensionally stable solid wall material with low abrasion! Easy installation at low temperatures. + Pipes and pipe material in accordance with terms of DIN EN 1401 (KG) or DIN EN 14758 (KG 2000). + Also available as KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting. + Also available with oil- and bitumen resistant KRASO Foil Flange.+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes. + Including KRASO Cover as an installation aid. + KRASO Product Innovation: Type BDF as thermally insulated floor penetration! + DafStB waterproof concrete guidline: Stress class 1 + 2

KRASO PU 50

high-quality, permanently elastic and strong PU-sealant, also suitable on moist surface, recommended for all products with KRASO Foil Flange, colour black
