KRASO Pump Sump Type Q - square -
KRASO Pump Sump Type Q - square -
for collecting waste water, made of plastic, with water pressure tight surrounding, thermally welded KRASO 4 Seal, factory bracing, concrete anchors, 1 piece water pressure tight KG pipe connection DN 110, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guidline: Stress class 1 + 2
Low weight - low freight - fast delivery: the simple and tight plastic solution:
+ Low weight = low freight and easy handling without crane on-site.
+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering.
+ No risk due to leaking concrete joints and/or pipe connections.
+ Resistance against many acids and lyes.
+ Made of high-quality and impact-resistant-plastic. Special dimensions are available within a few days!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
Info
Scope of supply:
KRASO Pump Sump Type Q - square -
KRASO Pump Sump Type Q - square -
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
DWG-Dateien
-
Produktinfo_KRASO_Pumpensumpf_Typ_Q (753.15 KiB)
-
Datenblatt_KRASO_Pumpensumpf_Typ_Q_zv (412.21 KiB)
-
Prüfbericht_KRASO_Rohrdurchführung (2.19 MiB)
-
DWG_KRASO_Pumpensumpf_Typ_Q_eckig_60x60x60 (678.58 KiB)
|

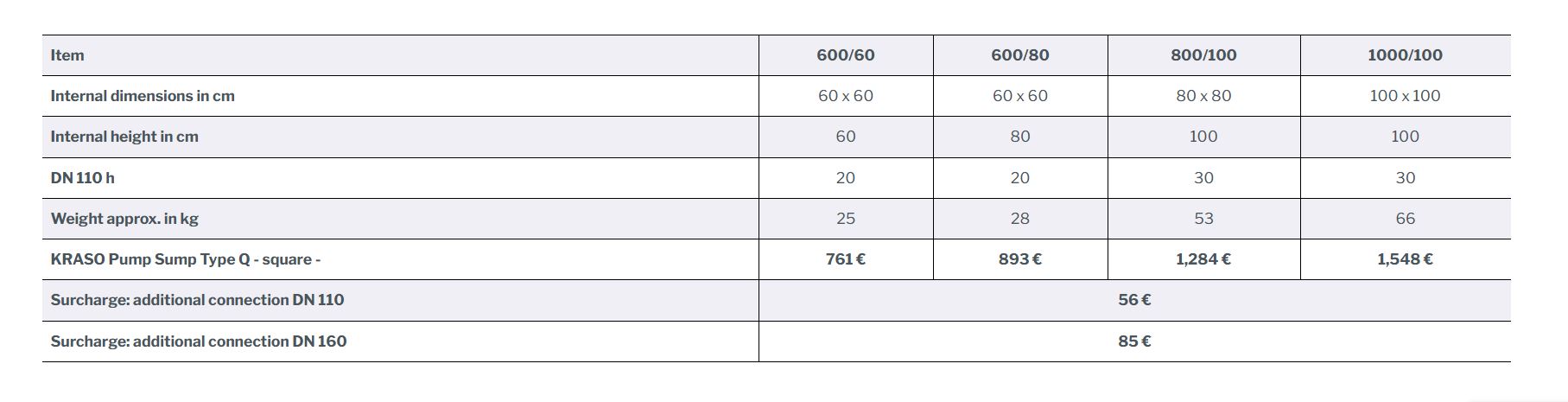

Type / Item |
600/60 |
600/80 |
800/100 |
1000/100 |
|
Internal dimensions in cm |
60 x 60 |
60 x 60 |
80 x 80 |
100 x 100 |
|
Internal height in cm |
60 |
80 |
100 |
100 |
|
DN 110 h |
20 |
20 |
30 |
30 |
|
Weight approx. in kg |
25 |
28 |
53 |
66 |
KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV-sealing flangePump sumps, lift pits, cable ducts and inspection shafts
+ Ready-made concrete parts as special designs for a conformist integration of fresh concrete composite films: pump sumps, lift pits, cable ducts.
+ Complete foil cover for intergation into the base plate! Vendor independence: fresh concrete compound foils (FBV) of all vendors can be integrated.+ Weather-independent prodcution and produced by us exactly as per your requirements!
+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight construction joint tape KRASO Duo-Fix 150 “plus” guarantee a water pressure tight passage to the base plate.
+ Made of waterproof concrete in one piece cast - without additional joints.
+ With crane lifting lugs for an easy and fast placement on the site.
KRASO Pump Sump - concrete -
for collecting waste water, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with water pressure tight surrounding, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, KRASO Pipe Connection, suitable for KG, HT and KG 2000 pipes, rebar connection 8/15 and crane lifting lugs for easy placement on the site. Pipe connection heights are indicated with the level of the lower edge of KRASO Pipe Connection at the internal base of the shaft!
| DafStB waterproof concrete guidline: Stress class 1 + 2
Save time and money - in one piece cast
+ Formworks on-site can be avoided - and therefore time and money - by the ready-made concrete KRASO Pump Sump.+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints.
+ The 12 cm thick, reinforced walls as well as the surrounding water pressure tight construction joint tape KRASO Duo-Fix 150 “plus” guarantee a water pressure tight passage to the base plate.
+ With crane lifting lugs for an easy and fast placement on the site.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Pump Sump Type Q - Faeces -
Low weight, high performance
The high-performance solution for sewage containing faeces: the combination of KRASO Pump Sump Type Q and closed pumping system.» Suitable for single-family homes, basement flats, sanitation in private basements.» Pumping medium: for clear water and for wastewater containing sewage and faeces.» Low weight = less freight costs and an easy handling - no crane necessary on site.» No higher risks due to leaking concrete joints and / or pipe connections.» Made of shock-resistant and light, almost unbreakable plastic. Special dimensions are available within just a few working days!» Doubled bottom: Fixation only in the upper base plate necessary.» Installation and connection of pumping system has to be done by a plumbing and heating contractor» Optional available: • Wedge gate valves (on the water pressurised site necessary according DIN)• Cover for screed installation 100/100
KRASO Pump Sump Poly 400 - complete - KG 2000
for collecting and pumping out of sewage free of faeces, with water pressure tight surrounding, thermally welded KRASO 4 Seal, shear key and pipe connection DN 110 suitable for KG, HT and KG 2000 - pipes, water pressure tight empty pipe system. KRASO Poly 400 - Pump - (for sewage, excl. maintenance contract), split, flexible, kink-resistant drain hose 1,25 m, internal diameter: 38 mm, with universal hose connector 20 cm, empty pipe extension to adjust for subsequent floor construction, KRASO Sealing Insert Poly - complete -, non-corrosive stainless steel V2A and KRASO Poly 400 Cover - walkable -
| DafStB waterproof concrete guidline: Stress class 1 + 2Light, tight and complete+ The lightweight and water pressure tight complete solution for sewage free of faeces - for new building or rehabilitation!+ Saves time and money: simple installation due to light weight - no additional formwork or concreting sections for several days required.+ Without higher risks due to leaky concreting joints and/or pipe connections! + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Pump Sump Cover - fillable -
fillable galvanised tub, water and odour-tight, loading after filling with concrete C 35/45 : approx. 125 kN (dimensions in cm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
KRASO Grating Cover - walkable -
galvanised (dimensions in cm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
KRASO Pump Sump Cover - fit for traffic up to 5 t, wheel pressure up to 1,25 t
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate, galvanised, fit for traffic up to 5 t, wheel pressure up to 1,25 t (dimensions in mm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site
+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!
+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
KRASO Pump Sump Cover - walkable
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate, galvanised, walkable (dimensions in mm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!
+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate, galvanised, fit for traffic up to 15 t, wheel pressure up to 3,75 t (dimensions in mm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
KRASO Pump Sump Cover - walkable -, water and odour-tight screwable
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate, galvanised, walkable, water and odour-tight screwable (dimensions in mm, approx. values - subject to correction!)KRASO Pump Sumps - directly to the construction site+ KRASO Pump Sumps - whether made of concrete or plastic - save time and money!+ Precise planning of your construction progress is possible with a delivery directly to your construction site. KRASO Pump Sumps made of concrete with crane lifting lugs - for an easy and fast placement on-site!
