KRASO Pump Sump Cover - fillable -

Pump sump dimension in cm

60 x 60

80 x 80

100 x 100

120 x 120

KRASO Pump Sump Cover - fillable -

fillable galvanised tub, water and odour-tight, loading after filling with concrete C 35/45 : approx. 125 kN

Info

Special designs available on request!

Downloads

KRASO Pump Sump Cover - fillable -

Montageanleitung Pumpensumpf Abdeckung verfüllbar

Product Information KRASO Pump Sump Cover - fillable -

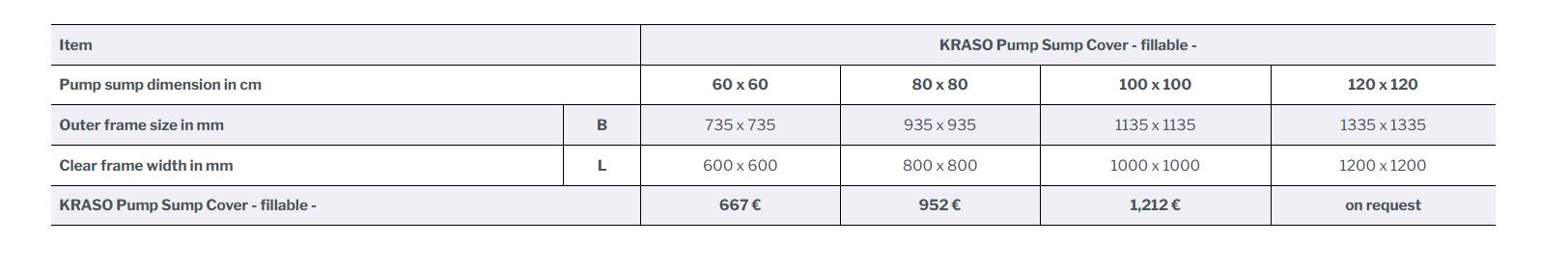

Item		KRASO Pump Sump Cover - fillable -
Pump sump dimension in cm		60 x 60	80 x 80	100 x 100	120 x 120
Outer frame size in mm	B	735 x 735	935 x 935	1135 x 1135	1335 x 1335
Clear frame width in mm	L	600 x 600	800 x 800	1000 x 1000	1200 x 1200
KRASO Pump Sump Cover - fillable -		667 €	952 €	1,212 €	on request

KRASO Grating Cover - walkable

galvanised

KRASO Pump Sump Cover - fit for traffic up to 5 t, wheel pressure up to 1.25 t

for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, fit for traffic up to 5 t, wheel pressure up to 1.25 t

KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3.75 t

for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, fit for traffic up to 15 t, wheel pressure up to 3.75 t

KRASO Pump Sump Cover - walkable

for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, walkable

KRASO Pump Sump Cover - walkable, water and odour-tight screwable

for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, walkable, water and odour-tight screwable

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections!+ Resistant against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump FBV - concrete -

Pump sumps, lift pits, inspection shafts+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!

KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money in one piece cast+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

Häufig gestellte Fragen (FAQ)

Was ist die KRASO Pumpensumpf Abdeckung - verfüllbar -?

Die KRASO Pumpensumpf Abdeckung - verfüllbar - ist eine verzinkte Abdeckung für Pumpensümpfe, die nach dem Einbau mit Beton verfüllt wird. Dadurch entsteht eine besonders stabile, tagwasserdichte und geruchsdichte Oberfläche für den dauerhaften Einsatz im Außen- und Innenbereich.
