KRASO Grating Cover - walkable -
slide 3 of 2
slide 1 to 2 of 2
KRASO Grating Cover - walkable -
galvanised
Info
Special designs available on request!
Downloads
KRASO Grating Cover - walkable -
Loading...
|

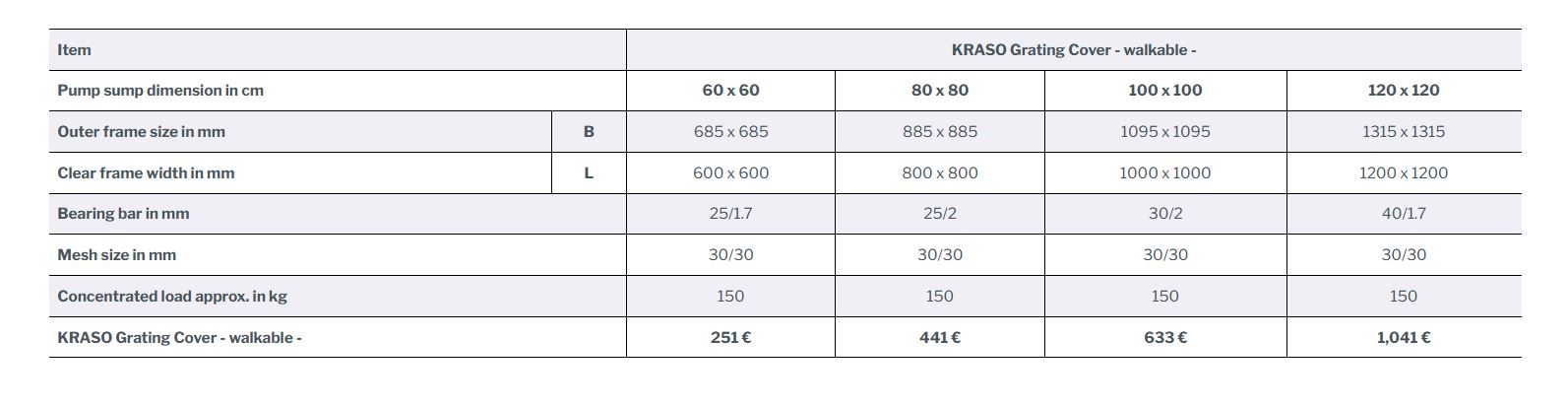

Type / Item |
KRASO Grating Cover - walkable - |
||||
|
Pump sump dimension in cm |
60 x 60 |
80 x 80 |
100 x 100 |
120 x 120 |
|
|
Outer frame in mm |
B |
685 x 685 |
885 x 885 |
1095 x 1095 |
1315 x 1315 |
|
Clear frame in mm |
L |
600 x 600 |
800 x 800 |
1000 x 1000 |
1200 x 1200 |
|
Bearing bar in in mm |
25/1,7 |
25/2 |
30/2 |
40/1,7 |
|
|
Mesh size in mm |
30/30 |
30/30 |
30/30 |
30/30 |
|
|
Concentrated load approx. in kg |
150 |
150 |
150 |
150 |
|
|
KRASO Grating Cover - walkable - |
251 € |
441 € |
633 € |
1.041 € |
|
slide 7 to 9 of 4
KRASO Pump Sump Type Q - square -
for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Pump Sump - concrete -
for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2
Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts
+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.
slide 6 to 8 of 5
KRASO Pump Sump Cover - walkable
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, walkable
KRASO Pump Sump Cover - walkable -, water and odour-tight screwable
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, walkable, water and odour-tight screwable
KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, fit for traffic up to 15 t, wheel pressure up to 3,75 t
