KRASO Pump Sump Cover - walkable -, water and odour-tight screwable
KRASO Pump Sump Cover - walkable -, water and odour-tight screwable
for KRASO Pump Sump - concrete - and KRASO Pump Sump Type Q - square -, bulb plate galvanised, walkable, water and odour-tight screwable
Info
Special designs available on request!
Downloads
KRASO Pumpensumpf Abdeckung - begehbar - tagwasser- und geruchsdicht verschraubbar
|

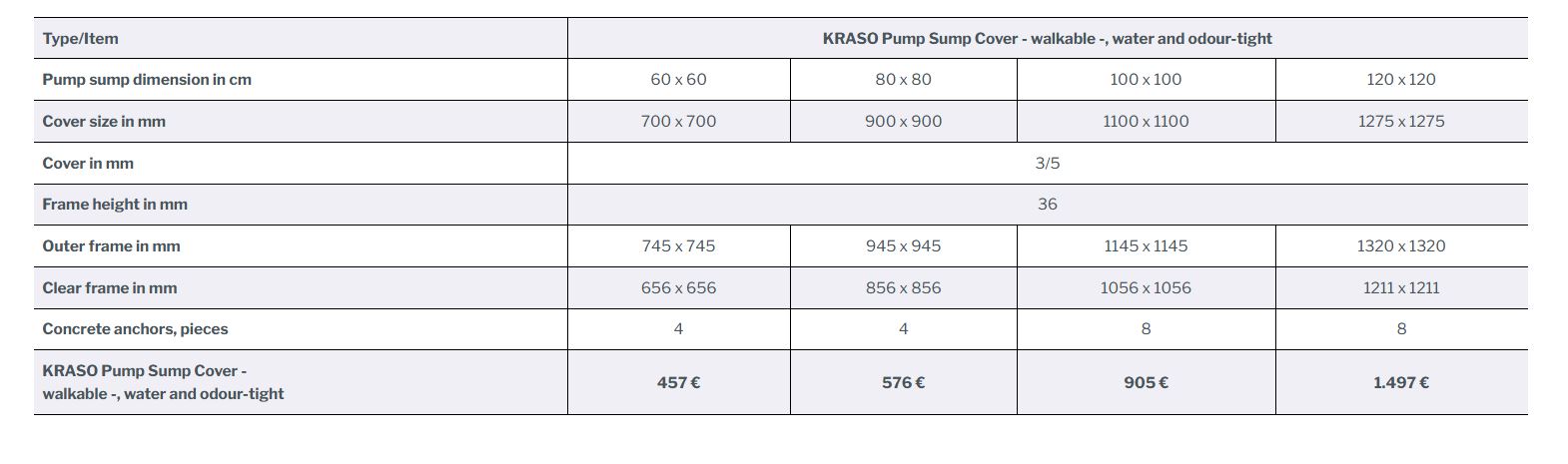

Type/Item |
KRASO Pump Sump Cover - walkable -, water and odour-tight |
|||
|
Pump sump dimension in cm |
60 x 60 |
80 x 80 |
100 x 100 |
120 x 120 |
|
Cover size in mm |
700 x 700 |
900 x 900 |
1100 x 1100 |
1275 x 1275 |
|
Cover in mm |
3/5 |
|||
|
Frame height in mm |
36 |
|||
|
Outer frame in mm |
745 x 745 |
945 x 945 |
1145 x 1145 |
1320 x 1320 |
|
Clear frame in mm |
656 x 656 |
856 x 856 |
1056 x 1056 |
1211 x 1211 |
|
Concrete anchors, pieces |
4 |
4 |
8 |
8 |
|
KRASO Pump Sump Cover - |
457 € |
576 € |
905 € |
1.497 € |
KRASO Pump Sump Cover - fillable -
fillable galvanised tub, water and odour-tight, loading after filling with concrete C 35/45 : approx. 125 kN
KRASO Pump Sump Type Q - square -
for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Pump Sump - concrete -
for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2
Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts
+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.
KRASO Inspection Shaft - concrete -
as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes
| DafStB waterproof concrete guideline: stress class 1 + 2
Saves time and money - in one piece cast
+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs!
+ DafStB waterproof concrete guideline: stress class 1 + 2
