KRASO Multi-Flange Plate Type MFP
KRASO Multi-Flange Plate Type MFP
for installation of pipes, sealing width to the media pipe or cable 20 mm | DafStB waterproof concrete guideline: stress class 1 + 2
Smart combination - innovative solution
+ Combination of high-quality KRASO Sealing Insert and flange plate made of high-strength special plastic!
+ Fast and easy installation thanks to the low weight - even by just one person!
+ Installation in front of the waterproof concrete wall. EPDM flat seal, fixing material and adhesive and sealant KRASO PU 50 are included in the scope of supply.
+ For new buildings and rehabilitation! Easy and fast installation and sealing of all kinds of media lines, also retrospectively. Special designs can usually be produced and dispatched within 24 hours.
+ MPA-tested: water pressure tight up to 1 bar!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Multi-Flange Plate Type MFP, EPDM flat seal incl. fixing material and adhesive and sealant KRASO PU 50
KRASO Multi-Flange Plate Type MFP, EPDM flat seal incl. fixing material and adhesive and sealant KRASO PU 50
Further sizes and diameters available on request!
Downloads
KRASO Multi Flange Plate Type KFP
|

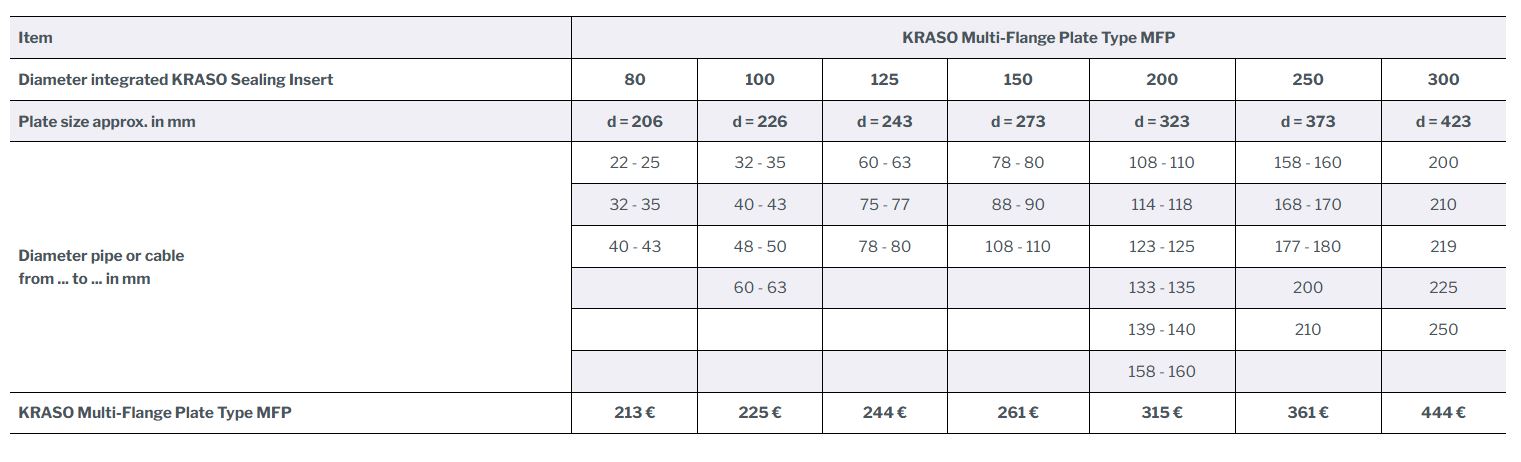

Item |
KRASO Multi-Flange Plate Type MFP |
||||||
|
Diameter integrated KRASO Sealing Insert |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Plate size approx. in mm |
d = 206 |
d = 226 |
d = 243 |
d = 273 |
d = 323 |
d = 373 |
d = 423 |
|
Diameter pipe or cable |
22 - 25 |
32 - 35 |
60 - 63 |
78 - 80 |
108 - 110 |
158 - 160 |
200 |
|
32 - 35 |
40 - 43 |
75 - 77 |
88 - 90 |
114 - 118 |
168 - 170 |
210 |
|
|
40 - 43 |
48 - 50 |
78 - 80 |
108 - 110 |
123 - 125 |
177 - 180 |
219 |
|
|
60 - 63 |
133 - 135 |
200 |
225 |
||||
|
139 - 140 |
210 |
250 |
|||||
|
158 - 160 | |||||||
|
KRASO Multi-Flange Plate Type MFP |
213 € |
225 € |
244 € |
261 € |
315 € |
361 € |
444 € |
KRASO Foil Clamping Flange Type FKF
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1.2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 30 mm seal | DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Metal components made of non-corrosive stainless steel V2A+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2.5 bar!+ Certified with the quality seal of the FHRK e. V.+ DIN 18533 W1 -E and W2.1 -E
KRASO Flange Plate non-corrosive stainless steel V2A
for installation of pipes or cables using a sealing insert (not included in the scope of supply), in front of a core drilling in concrete or masonry wall, made of non-corrosive stainless steel V2A, EPDM flat seal. ID = InternalDiameter | DafStB waterproof concrete guideline: stress class 1 + 2Gegen Mehrpreis lieferbar:+ Split design+ Fixed-loose consttruction according to DIN 18533+ Non-corrosive stainless steel V4A
KRASO Plastic Flange Plate Type KFP
for installation of pipes or cables using a sealing insert (not included in the scope of supply), no core drilling required, EPDM flat seal, ID = InternalDiameter
| DafStB waterproof concrete guideline: stress class 1 + 2
The flange plate made of high-strength special plastic+ Due to changes in the groundwater level the rehabilitation of old buildings and the sealing of basements become necessary from time to time. Existing pipes and cables should also be sealed using the latest technology.
+ The sealing of the media lines inside the plastic flange plate is completed by using a sealing insert.
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1 -E and W2.1 -E
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also usable on moist surfaces, recommended for all products with KRASO Foil Flange, colour black, 290 ml cartridge for cartridge press
