KRASO Foil Clamping Flange Type FKF
KRASO Foil Clamping Flange Type FKF
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1.2 mm, according DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 30 mm seal | DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ Innovative: water pressure tight sealing of any even and stable cable with our KRASO Foil Clamping Flange Type FKF foil flange!
+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Metal components made of non-corrosive stainless steel V2A
+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 2.5 bar!
+ Certified with the quality seal of the FHRK e. V.
+ DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Foil Clamping Flange Type FKF, adhesive sealant KRASO PU 50, serrated spatula, pressure roller and pencil
Further sizes and diameters available on request! Also available with other sealing sheets!
|

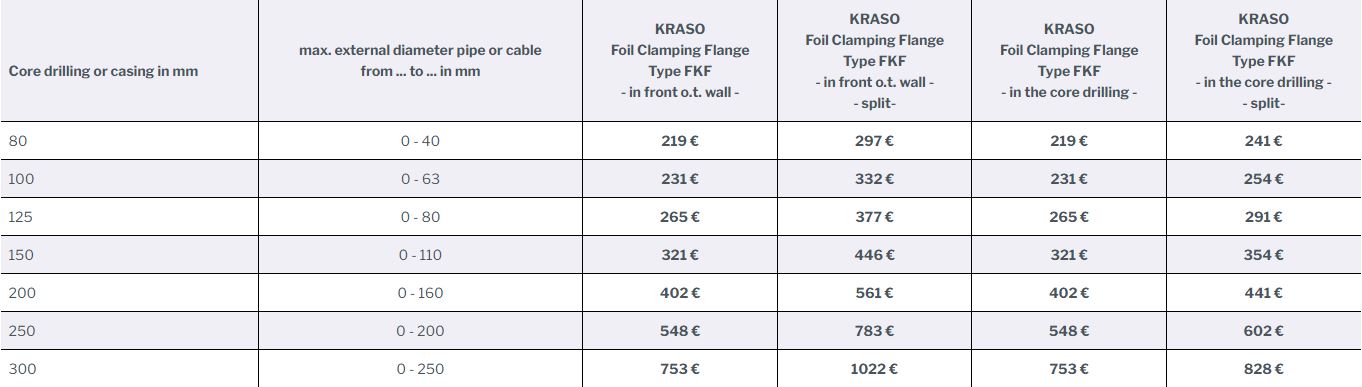

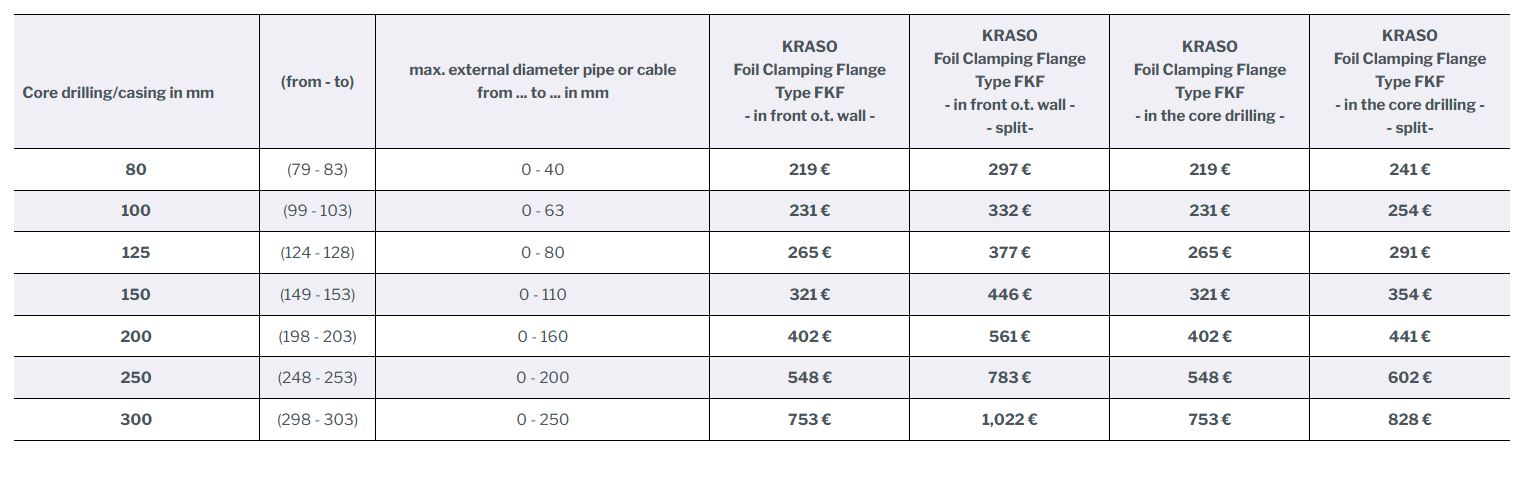

(from - to) |
max. external diameter pipe or cable |
KRASO - in front o.t. wall - |
KRASO - in front o.t. wall - |
KRASO |
KRASO |
|
80 |
(79 - 83) |
0 - 40 |
219 € |
297 € |
219 € |
241 € |
|
100 |
(99 - 103) |
0 - 63 |
231 € |
332 € |
231 € |
254 € |
|
125 |
(124 - 128) |
0 - 80 |
265 € |
377 € |
265 € |
291 € |
|
150 |
(149 - 153) |
0 - 110 |
321 € |
446 € |
321 € |
354 € |
|
200 |
(198 - 203) |
0 - 160 |
402 € |
561 € |
402 € |
441 € |
|
250 |
(248 - 253) |
0 - 200 |
548 € |
783 € |
548 € |
602 € |
|
300 |
(298 - 303) |
0 - 250 |
753 € |
1,022 € |
753 € |
828 € |
KRASO Foil Clamping Flange Type FKF DD/GR
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1.2 mm, according to DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 40 mm specially soft seal, central pressure distribution plate for even pressure distribution with corrugated media pipes, against pressing water up to 1 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A
|
DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas
+ For ribbed media pipes+ Suitable for all external diameters of media lines and for all materials!+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc.+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Metal components made of non-corrosive stainless steel V2A+ For new buildings and rehabilitation! Various designs for almost every situation!+ Simple and fast mounting!+ MPA-tested: water pressure tight up to 1 bar!
+ Certified with the quality seal of the FHRK e. V. + DIN 18533 W1 -E and W2.1 -E
KRASO Foil Clamping Flange Type FKF Universal
for the sealing of media of all kinds of materials in front of a wall or in the core drilling, with foil flange 1.2 mm, according to DIN 16937, oil- and bitumen resistant, surrounding approx. 15 cm, 40 mm seal, against pressing water up to 1.5 bar, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A
|
DIN 18533 W1 -E and W2.1 -E
The revolution in terms of the integration of media lines into the sealing of larger areas+ Innovative: water pressure tight sealing of any even and stable pipe or cable with our KRASO Foil Clamping Flange FKF foil flange+ Suitable for all external diameters of media lines and for all materials!
+ We can individually customise the type of sealing sheets or foils: e.g. PVC, EPDM, FPO, RESITRIX®, PP, PE, KRASO-Fol, PYE-PV 200 S5 etc .
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Metal components made of non-corrosive stainless steel V2A+ For new buildings and rehabilitation! Various designs for almost every situation!
+ Simple and fast mounting!
+ MPA-tested: water pressure tight up to 1.5 bar! + Certfied with the quality seal of the FHRK e. V.+ DIN 18533 W1 -E and W2.1 -E
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also usable on moist surfaces, recommended for all products with KRASO Foil Flange, colour black, 290 ml cartridge for cartridge press
