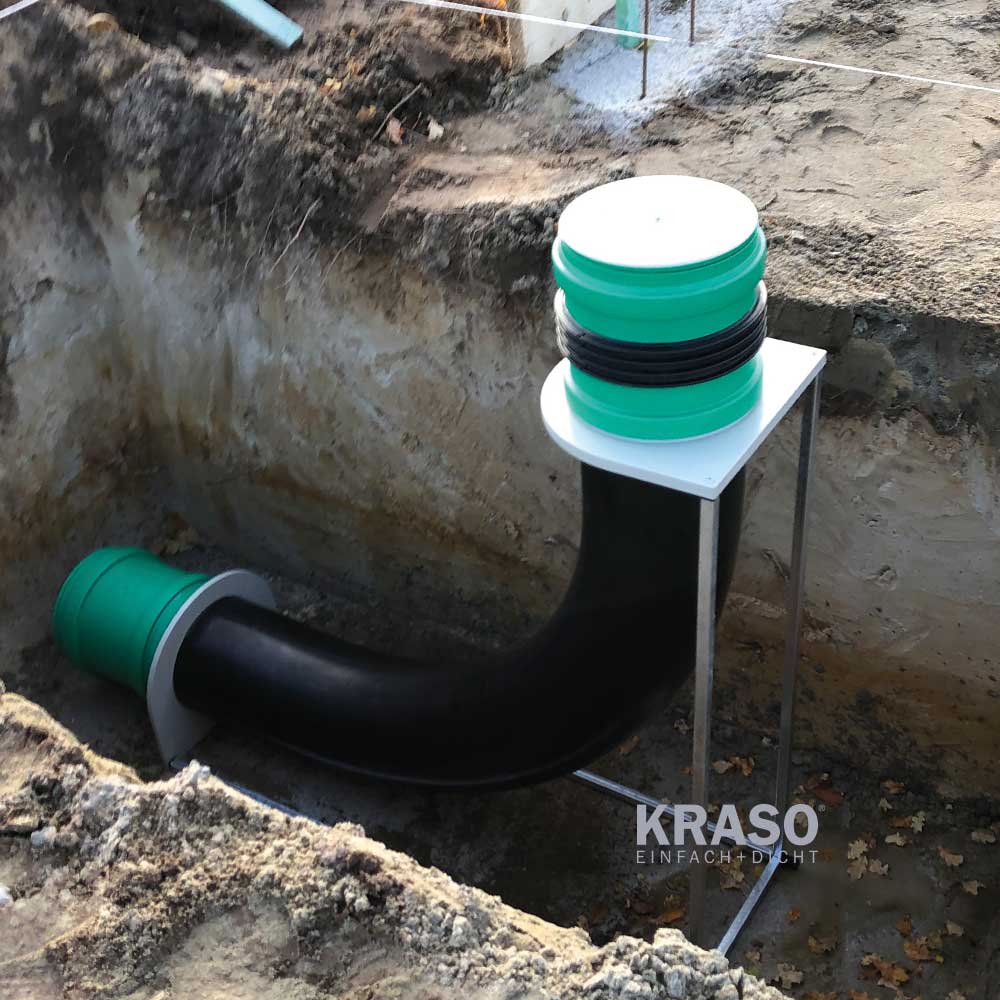

KRASO Builder's Convenience Box - floor - NFE - Basis
KRASO Builder's Convenience Box - floor - NFE - Basis
for the connection to the local, district and geothermal energy network. Optionally available: KRASO Foil Flange for the integration into the floor sealing | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
+ The comfortable solution for the connection to air-water-heat pumps (monobloc) or to the local, district and geothermal energy network - for flexible and insulated pipelines with integrated supply and reflux
+ Fully assembled stable installation device: positioning – arrangement – concreting – connection – ready!
+ For buildings without basement: single-/multi-family houses, public and commercial buildings
+ On request also available with KRASO Foil Flange – for the integration into the floor sealing
+ KRASO Builder's Convenience Box - floor - NFE - Basis including:
• KRASO Builder's Convenience Box - floor - NFE - Basis DN 200, DN 250 or DN 315 with water pressure tight surrounding KRASO 4 Seal
• KRASO Empty Pipe Insert: for the internal floor construction
Simple, comfortable, tight to the heat pump or to the local, district and geothermal energy network
+ The comfortable solution for the connection to air-water-heat pumps (monobloc) or to the local, district and geothermal energy network - for flexible and insulated pipelines with integrated supply and reflux
+ Fully assembled stable installation device: positioning – arrangement – concreting – connection – ready!
+ For buildings without basement: single-/multi-family houses, public and commercial buildings
+ On request also available with KRASO Foil Flange – for the integration into the floor sealing
+ KRASO Builder's Convenience Box - floor - NFE - Basis including:
• KRASO Builder's Convenience Box - floor - NFE - Basis DN 200, DN 250 or DN 315 with water pressure tight surrounding KRASO 4 Seal
• KRASO Empty Pipe Insert: for the internal floor construction
• Building period protection cover
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
Info
Scope of supply:
KRASO Builder's Convenience Box - floor - NFE - Basis with installation device, empty pipe insert and building period protection cover. Optionally available: KRASO Foil Flange, installation kit with KRASO Sealing Insert Type DD/GR - GF and centering disk
KRASO Builder's Convenience Box - floor - NFE - Basis with installation device, empty pipe insert and building period protection cover. Optionally available: KRASO Foil Flange, installation kit with KRASO Sealing Insert Type DD/GR - GF and centering disk
Two-fold version on request!
Downloads
KRASO Builder's Convenience Box - floor - NFE - Basis
|

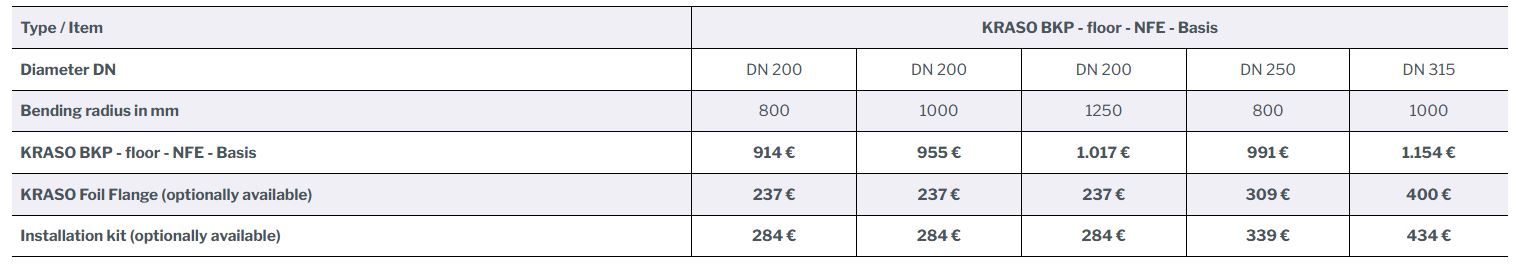

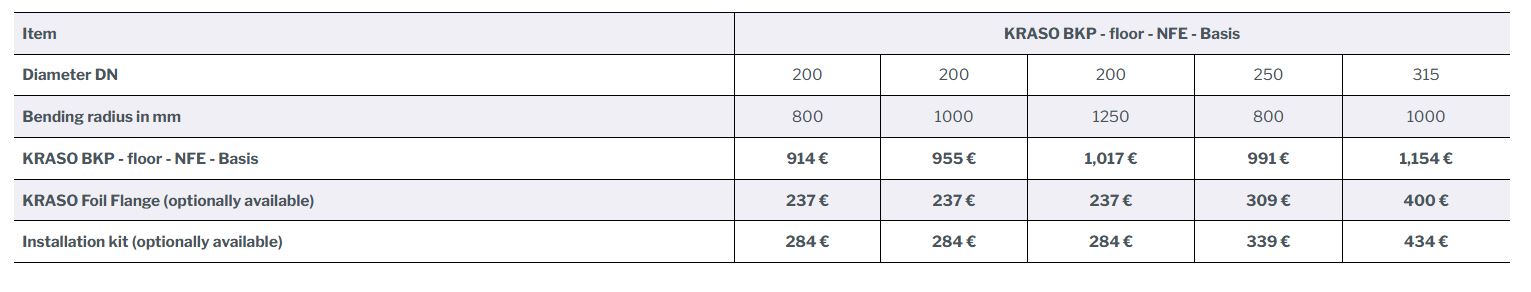

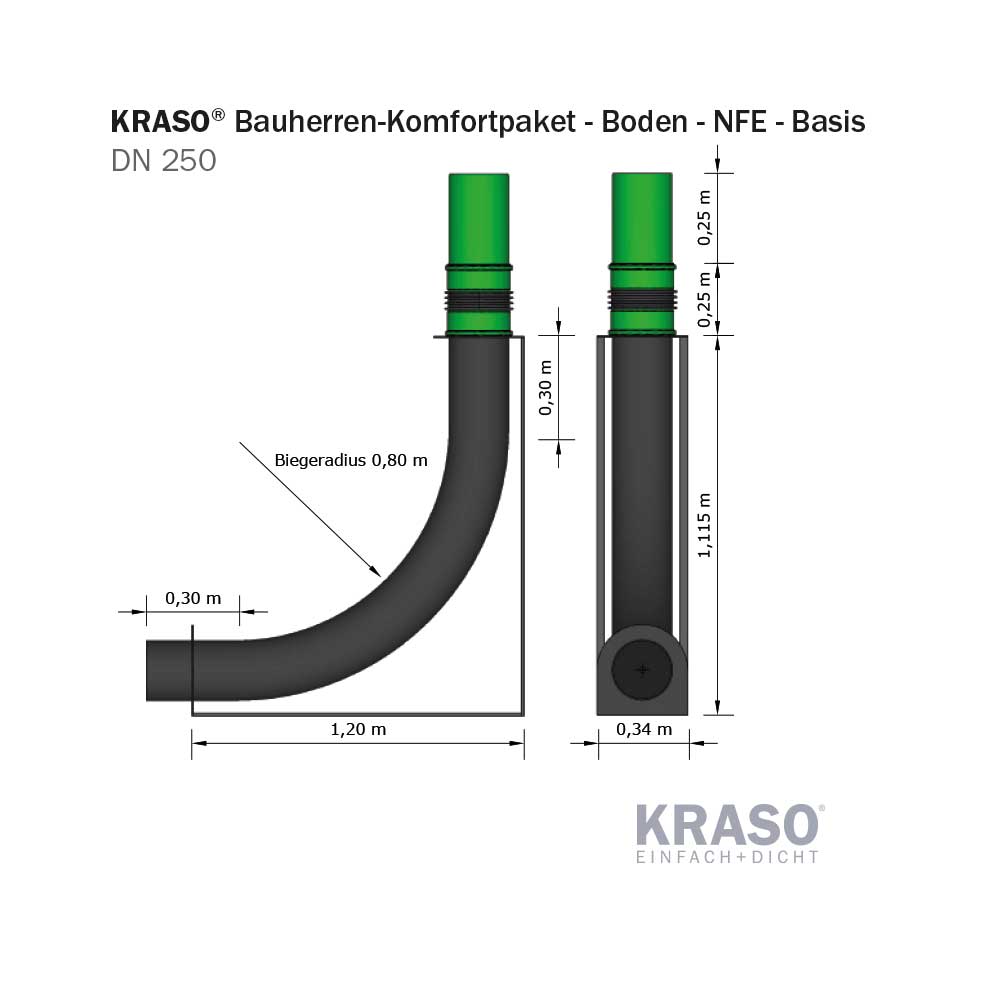

Item |
KRASO BKP - floor - NFE - Basis |
||||
|
Diameter DN |
200 |
200 |
200 |
250 |
315 |
|
Bending radius in mm |
800 |
1000 |
1250 |
800 |
1000 |
|
KRASO BKP - floor - NFE - Basis |
914 € |
955 € |
1,017 € |
991 € |
1,154 € |
|
KRASO Foil Flange (optionally available) |
237 € |
237 € |
237 € |
309 € |
400 € |
|
Installation kit (optionally available) |
284 € |
284 € |
284 € |
339 € |
434 € |
KRASO Cable Inlet Box System KDS 150
for the installation of cables and utility lines such as e.g. water - electricity - telecommunication etc. in buildings without basement. Attention: do not use a KRASO System Sealing Insert KDS 150 for the sealing of media lines, but use KRASO Sealing Inserts instead! | DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -EThe flexible system for industry and commercial buildings+ The secure and reliable way for the installation of cables and pipes right into buildings: with a radius of 650 mm or 1000 mm, main pipes and cable protective hoses can be connected at a 90-degree angle to buildings without basement+ KRASO Cable Penetration System KDS 150: flexible and combinable in various ways+ The KRASO Cable Inlet Box System KDS 150 can be expanded to any number of rows thanks to the plug-in system - depending on your requirements!+ For the installation of cables and pipes such as water, electricity, telecommunication etc. into buildings without a basement: the perfect solution for industrial and commercial buildings!+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal+ With stable installation device for correct positioning before concreting+ Flexible plug-in possibilities on the outer side using KRASO Cable Penetration System KDS 150+ Additional media pipe sealing from the inside using KRASO Sealing Inserts+ Included in the scope of supply: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E
Cable Inlet Box KDS 150 - special
bending radius approx. 200 cm, for the secure connection of supply lines like e.g. water - electricity - telecommunication into buildings without basement. With installation device, empty pipe extension 20 cm and water pressure tight surrounding KRASO 4 Seal and 2 KRASO KDS Closure Covers
KRASO BKP - floor - NFE - Installation Kit
optionally available installation kit for KRASO Builder's Convenience Box - floor - NFE, includingKRASO Sealing Insert Type DD/GR - GF for ribbed pipes, with large flange, MPA-tested water pressure tightness up to 1 barCentral pressure distribution plate for internal fixing of the district heating line
(Please indicate the
external diameter of the local / district heating line upon ordering. Ask your
local supplier for this information.)
KRASO Builder's Convenience Box - wall
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings with basement, KRASO BKP Gas Installation Kits optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN18533 W1 -E and W2.1 -E Multi utility connection for buildings with basement: gas, water, electricity and telecommunication+ DVGW-certified according VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 200 (199 - 203 mm). For precast walls and in-situ concrete walls!+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! Resistant to methane gas!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Split end plugs for easy installation!+ Ready for the network connection of gas, water, electricity and telecommunication: tested in accordance with DVGW! Including KRASO BKP - Sealing Inserts for electricity/water, telecommunication, electricity + telecommunication+ Optionally available KRASO BKP Gas Installation Kits:
• gas utility connection Schuck DN 25
• gas
utility
connection RMA DN 25 • gas
utility
connection Voigt DN 25 • gas
utility
connection Voigt DN 32+ Including KRASO BKP - wall - Extension Set!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO Builder's Convenience Box - wall - ESH
single utility connection for supply lines (gas, water, electricity or telecommunication) for buildings with basement, incl. extension set | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EConvenient, safe, tight connection to the network - gas, water, electricity or telecommunication+ Simple and safe single utility connection for new buildings or rehabilitation for buildings with basement+ Flexible installation: gas, water, electricity or telecommunication - including installation/mounting set+ Double installation possible: electricity and telecommunication!+ DVGW-certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 100 (99 - 103 mm). For precast walls and in-situ concrete walls!+ For wall thicknesses from 160 - 500 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!+ Gas and odour-tight - high-quality in terms of TA-Air!+ Split end plugs for easy installation!+ Including extension set
+
DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO BKP Floor Screed Insert
for KRASO Builder's Convenience Box - floor - SET - 1- to 4-fold, with height fixation, protection foil and lubricant, adjustable height from
0 to 240 mm or 0 to 590 mm
KRASO BKP Gas Installation Kits
for anti-twist and tear-off protection of gas utility connections, according to DVGW VP 601, incl. primary and secondary sealing elements, gas end plug and self-cutting screws
KRASO BKP - Sealing Inserts
installation kits for KRASO Builder's Convenience Box - floor - SET and KRASO Builder's Convenience Box - wall, wall - NFE and wall - ESH: electricity/water, telecommunication,
electricity +
telecommunication. Tested in accordance with DVGW!
KRASO Builder’s Convenience Box - wall - garden
multi utility connection for electricity, water or telecommunication for buildings with basement, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication | DafStB waterproof concrete guideline: stress class 1 + 2, optional external sealing element DIN 18533 W1 -E and W2.1 -EMore convenience in the garden!
+ Choose the KRASO Builder’s Convenience Box - wall - garden for any project in your garden or courtyard: lighting, pool, garden sauna, wall box etc.+ For core drilling and casing DN 200 (199-203 mm). For precast walls and in-situ concrete walls!
+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)
+ Radon-tight! Resistant to methane gas!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Split end plugs for easy installation!
+ Ready for the utility connection of water, electricity and network lines: tested in accordance with DVGW! Including KRASO BKP - Sealing Inserts for electricity/water (2 x), telecommunication, electricity + telecommunication
+ Optionally available: external sealing element with sealing flange according to DIN 18533! Seal width: 80 mm
+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional external sealing element DIN 18533 W1 -E and W2.1 -E
KRASO Builder's Convenience Box - floor - 110
KRASO Builder's Convenience Box (BKP) - floor - 110 - 1-fold (including installation set), single utitility connection for supply lines (heat pump, local/district/geothermal heating, gas, water or electricity) for buildings without basement, incl. KRASO FLS 110 | DafStB waterproof concrete guideline: stress class 1 + 2 The flexible utility connection for heat pumps, local, district or geothermal heating, gas, water or electricity+ The secure utility connection for heat pumps for buildings without basement: • KRASO Builder´s Convenience Box - floor - 110 for water-to-water heat pumps and brine-water-heat pumps (probe and collector) • KRASO Builder´s Convenience Box - floor - 110 - SWP for air-to-water heat pump (split)+ Flexible: also usable for configuring with local, district or geothermal piping systems, gas, water or electricity up to DN 50+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!+ Radon tight!+ Hose diameter: external 110 mm - internal 100 mm!+ Stable installation device with foot extension for a save position and an easy installation+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover+ Incl. empty pipe insert (25 cm, internal diameter: 100 mm) for a flexible floor construction+ Incl. Flexible Empty Pipe System KRASO FLS 110 (internal diameter: 100 mm): bending radius 1000 mm. Incl. hose adapter 110 and end plug+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO BKP - garden - Extension Set
for the extension of the cable protective hoses of KRASO BKP - floor - garden - SET and - wall - garden, incl. 10 metres cable protective hose DN 75
KRASO Builder's Convenience Box - wall - NFE
multi utility connection for supply lines (local, district or geothermal heating, water, electricity, telecommunication) for buildings with basement | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EComfortable connection to your basement: heat pump, local, district or geothermal heating + Heat pump or local, district or geothermal heating system each with supply and reflux!+ For heat pumps or local, district or geothermal heating lines with diameter 110, 90, 75, 50, 40 or 32 mm, optionally available with a diameter of 125 mm+ For core drilling and casing DN 300 (299 - 303 mm). For precast walls and in-situ concrete walls! + External sealing element with sealing flange according to DIN 18533! Seal width: 90 mm+ Gas- and odour tight - high quality in terms of TA-Air!+ Certified up to 1 bar!+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Including all components for a secure grid connection of heat pump, local, district or geothermal heating, water, electricity and telecommunication!+ Including casing pipe end plugs - warm bridges are avoided!+ Optionally available: KRASO BKP - wall - NFE - Extension Set - for cable protective hoses, KRASO FLS or rigid casing pipes!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO BKP - Extension Sets
for the extension of the casing pipes for water, electricity and telecommunication in KRASO Builder’s Convenience Boxes with a cable protection hose provided on-site
KRASO Builder's Convenience Box - wall - SWP
single utility connection for control cables and refrigerant lines of air-water heat pumps (split) for buildings with basement | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EUtility connection for air- water- heat pumps (split)+ Simple and safe single utility connection for new buildings and rehabilitation of buildings with a basement+ For core drilling and casing DN 150 (149 - 153 mm). For precast walls, in-situ concrete walls and brickwork, for wall thicknesses 160 - 500 mm+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ With KRASO Sealing Insert Type SWP with large flange for internal installation.Scope of application:For control cables, closed: stepless onion ring technology 2 x 5 - 18 mm, with plugFor refrigerant lines, split:- onion ring technology 1 x 6 - 13 mm for 1/4 or 3/8 inch lines, with plug- onion ring technology 1 x 6 - 18 mm for 1/4, 3/8, 1/2 or 5/8 inch lines, with plug+ Radon tightness IAF tested - according to FHRK leaflet MB 101!
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO FLS 90 - Flexible Empty Pipe System
flexible empty pipe system as a cable protective hose for the extension of the KRASO Builder's Convenience Box - floor - SET using the KRASO BKP - Extension Set, with a smooth interior for easy cable pulling, smooth exterior for optimal sealing, flexible, increased pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances), compression resistance 629 N, tests in line with DIN EN 61386-24 lead to the following classifications: type 250 - impact resistance: normal - classification code: N250
KRASO Builder’s Convenience Box - floor - garden - SET
single utility connection - outlet for electricity, water or telecommunication for buildings without basement incl. cable protective hose (DN 75, 10 metres), incl. installation kits for electricity + telecommunication | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EFor more convenience in the garden!
+ Choose the KRASO Builder’s Convenience Box - floor - garden - SET for any project in your garden or courtyard: lighting, pool, garden sauna, wall box etc.+
For buildings without basement: simple and tight routing of electricity, water and telecommunication lines from the utility connection space to the garden!
+ KRASO 4 Seal: exterior sealing of concrete: 10 bar! Radon-tight! Resistant to methane gas!
+ Simple installation due to the stable installation device and visual check of the snap-on socket - helps to avoid installation errors!
+ For flush-mount installation in the base plate - no tripping hazards or wall damages! Including building period protective cover
+ Easy integration of vapour barrier foils due to the roughened trowel flange!
+ Height-adjustable base plate and floor screed
+ Combinable with KRASO Builder’s Convenience Box - floor - SET as utility connection!
+ Including KRASO BKP - Sealing Insert - electricity + telecommunication!Clamping range: electricity 25 - 36 mm, telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm
+ Optionally available KRASO BKP - Sealing Inserts:
KRASO BKP - Sealing Insert - electricity/waterKRASO BKP - Sealing Insert - telecommunication
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
Häufig gestellte Fragen (FAQ)
Wofür wird das KRASO Bauherren-Komfortpaket - Boden - NFE - Basis eingesetzt?
Das Bauherren-Komfortpaket dient zur gas- und wasserdichten Einführung vorgedämmter Rohrleitungen für den Anschluss von Luft-Wasser-Wärmepumpen (Monoblock) sowie an Nah-, Fern- oder Erdwärmenetze durch die Bodenplatte.
Für welche Gebäudearten ist das Komfortpaket geeignet?
Es ist für nicht unterkellerte Gebäude ausgelegt, z. B. Einfamilienhäuser, Mehrfamilienhäuser, öffentliche Gebäude sowie gewerbliche Bauten.
Welche Rohrdurchmesser sind verfügbar?
Das KRASO Bauherren-Komfortpaket - Boden - NFE - Basis ist in den Nennweiten DN 200, DN 250 und DN 315 erhältlich und deckt damit unterschiedliche Leitungsdimensionen ab.
Ist das System druckwasserdicht?
Ja. Das System verfügt über eine umlaufende KRASO Vierstegdichtung und ist druckwasserdicht gemäß WU-Richtlinie (Beanspruchungsklasse 1 + 2) sowie mit optionalem Folienflansch gemäß DIN 18533 W1.1 -E.
Wie erfolgt die Montage des Bauherren-Komfortpakets?
Die Montage ist besonders einfach: Aufstellen – Ausrichten – Betonieren – Anschließen – Fertig. Die stabile Aufstellvorrichtung ist bereits werksseitig vormontiert.
Was ist im Lieferumfang enthalten?
Im Lieferumfang enthalten sind:
- KRASO Bauherren-Komfortpaket - Boden - NFE - Basis
- Stabile Aufstellvorrichtung
- Leerrohraufsatz für den Fußbodenaufbau
- Bauzeitschutzdeckel
Kann das System in die Bodenplatten- oder Fußbodenabdichtung eingebunden werden?
Ja. Optional ist ein KRASO Folienflansch erhältlich, mit dem das System sicher in die Bodenplatten- bzw. Fußbodenabdichtung integriert werden kann.
Für welche Leitungsarten ist das Produkt geeignet?
Das Komfortpaket ist für flexible, vorgedämmte Rohrleitungen mit integriertem Vor- und Rücklauf ausgelegt, wie sie bei Wärmepumpen- und Wärmenetzanschlüssen üblich sind.
Gibt es optionales Zubehör für die Installation?
Ja. Optional erhältlich sind unter anderem:
- KRASO Folienflansch
- Installationsset mit KRASO Dichteinsatz Typ DD/GR - GF
- Zentrierscheibe
Eine Doppeldurchführung ist auf Anfrage möglich.
Erfüllt das KRASO Bauherren-Komfortpaket relevante Normen und Richtlinien?
Ja. Das Produkt erfüllt die Anforderungen der WU-Richtlinie sowie der DIN 18533 und ist damit für den Einsatz in wasserbeanspruchten Bodenplatten geeignet.
