KRASO Builder´s Convenience Box - wall - SWP
KRASO Builder´s Convenience Box - wall - SWP
House connections system for air- water- heat pumps (Split)
+ Simple and safe single-house connection for new buildings and rehabilitation on buildings with a basement.
+ For core hole DN 150 (149 - 153 mm). One for all: precast walls, in situ concrete walls, casings and core holes. For wall thickness 160 - 500 mm.
+ External sealing element with flange according DIN 18533! Seal: 80 mm.
+ With KRASO Sealing Insert Type SWP with large flange for internal fitting of the pipeline.
Scope:
For control cables, closed: 2 x 5 - 10 mm, with plug
2 x 11 - 16 mm, with plug
For refrigerant lines, split: 1 x 1/4 Zoll / 6,35 mm, with plug
1 x 3/8 Zoll / 9,52 mm, with plug
1 x 1/2 Zoll / 12,7 mm, with plug
1 x 5/8 Zoll / 15,88 mm, with plug
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
+ Simple and safe single-house connection for new buildings and rehabilitation on buildings with a basement.
+ For core hole DN 150 (149 - 153 mm). One for all: precast walls, in situ concrete walls, casings and core holes. For wall thickness 160 - 500 mm.
+ External sealing element with flange according DIN 18533! Seal: 80 mm.
+ With KRASO Sealing Insert Type SWP with large flange for internal fitting of the pipeline.
Scope:
For control cables, closed: 2 x 5 - 10 mm, with plug
2 x 11 - 16 mm, with plug
For refrigerant lines, split: 1 x 1/4 Zoll / 6,35 mm, with plug
1 x 3/8 Zoll / 9,52 mm, with plug
1 x 1/2 Zoll / 12,7 mm, with plug
1 x 5/8 Zoll / 15,88 mm, with plug
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ DafStB waterproof concrete guidline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Builder’s Convenience Box - wall - SWP incl. KRASO Sealing Insert Type SWP with large flange
KRASO Builder’s Convenience Box - wall - SWP incl. KRASO Sealing Insert Type SWP with large flange
Downloads
Produktinformation
Montageanleitung
-
Produktinfo_KRASO_bkp_wand_swp (262.29 KiB)
-
montageanleitung_kraso_bkp_wand_swp (742.51 KiB)

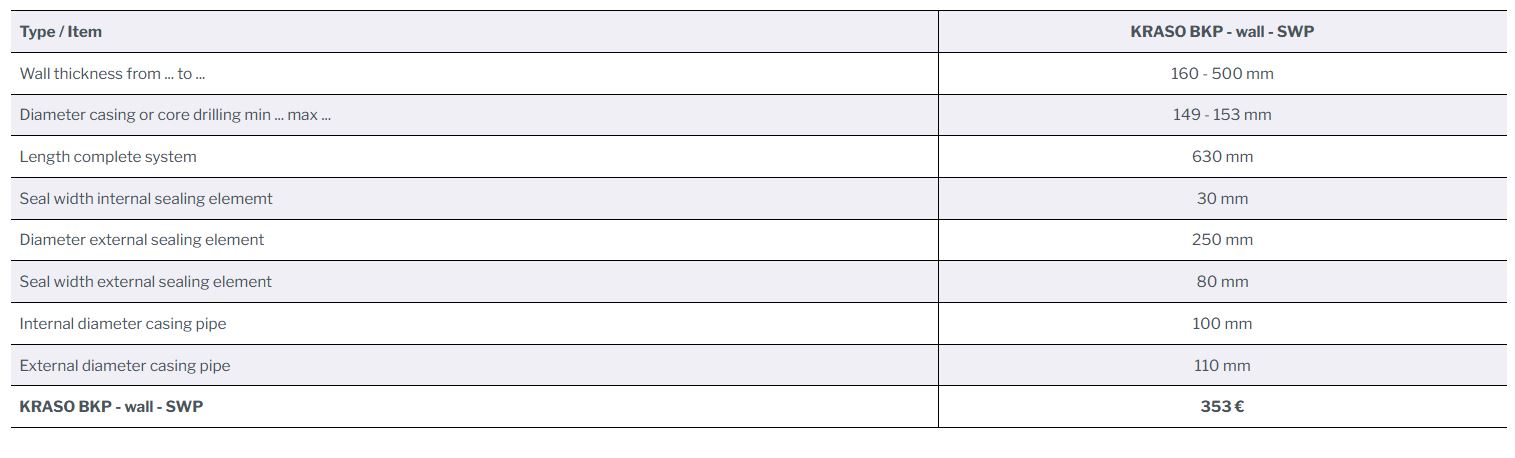

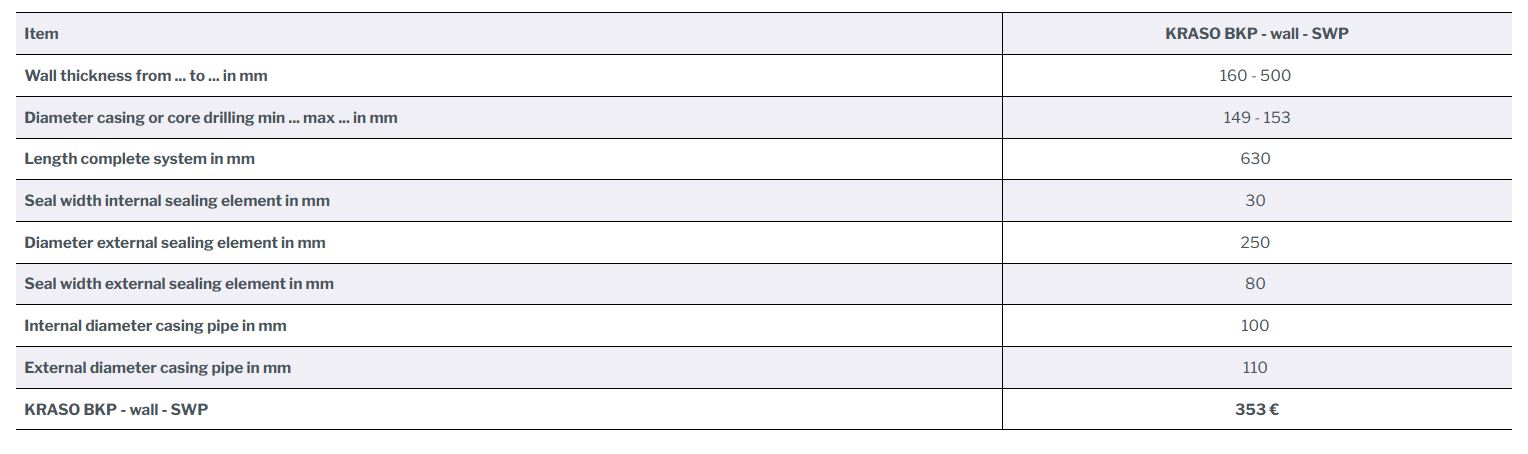

Type / Item |
KRASO BKP - wall - SWP |
Wall thickness from ... to ... | 160 - 500 mm |
Diameter casing or core hole min ... max ... |
149 - 153 mm |
Whole system length | 630 mm |
Seal width internal sealing elememt |
30 mm |
Diameter external sealing element |
250 mm |
Seal width external sealing element |
80 mm |
Internal diameter casing pipe |
100 mm |
External diameter casing pipes |
110 mm |
