KRASOflex Expansion Joint Tape D
KRASOflex Expansion Joint Tape D
internal expansion joint tape, available in factory standard with abP, DIN 18541 and 18541 BV |
DafStB waterproof concrete guideline: stress class 1 + 2
According to factory standard, DIN 18541 or DIN 18541 BV
+ Factory standard with general building authority test certificate (abP):
Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.
Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.
+ DIN 18541:
Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.
Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.
+ DIN 18541 BV:
Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.
Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Expansion Joint Tape D made of thermoplastic, internal, for the sealing of horizontal and vertical expansion joints in waterproof concrete buildings. Material properties and profile geometries of the joint tapes meet the requirements according to DIN 18541 and may therefore be used with pressing and non-pressing water, as well as with floor moisture in accordance with DIN 18197. Available on request as a bitumen-compatible design.
Info
Available on request as a bitumen-compatible design!
Downloads
KRASOflex Expansion Joint Tape D
|

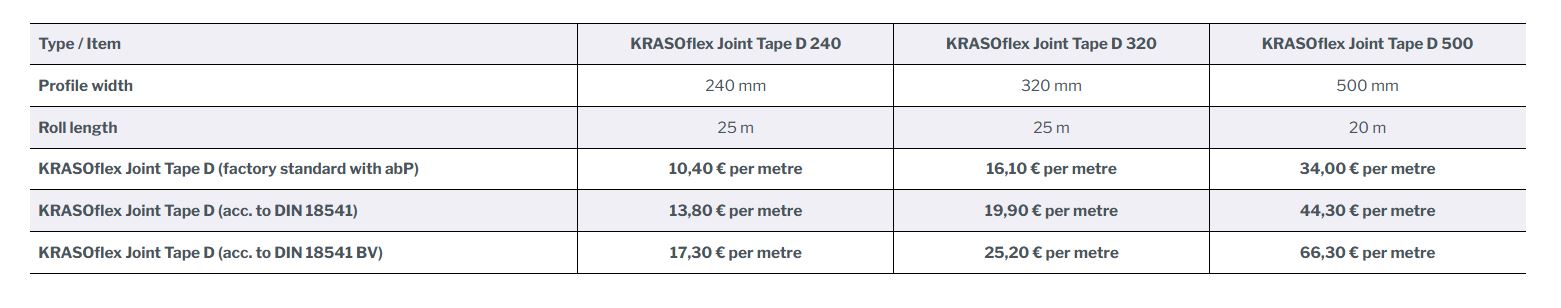

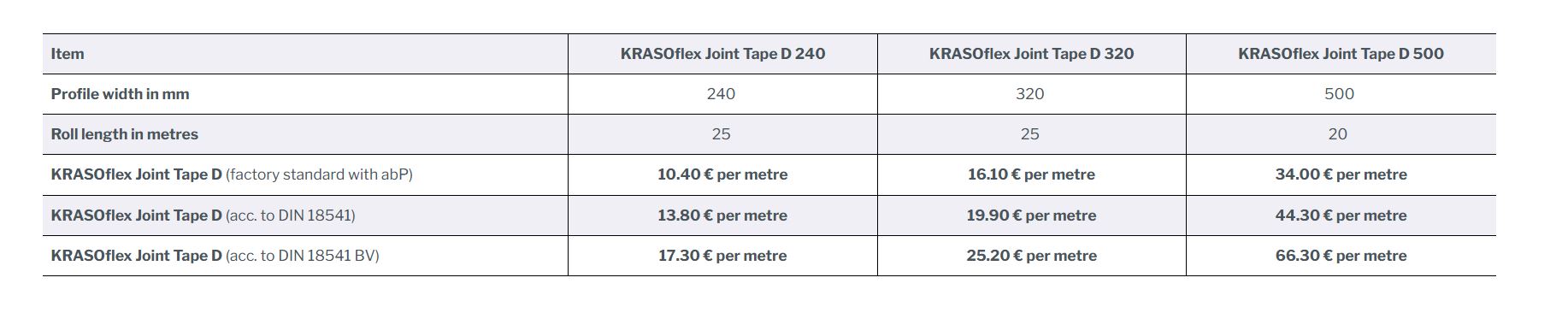

Item |
KRASOflex Joint Tape D 240 |
KRASOflex Joint Tape D 320 |
KRASOflex Joint Tape D 500 |
|
Profile width in mm |
240 |
320 |
500 |
|
Roll length in metres |
25 |
25 |
20 |
|
KRASOflex Joint Tape D (factory standard with abP) |
10.40 € per metre |
16.10 € per metre |
34.00 € per metre |
|
KRASOflex Joint Tape D (acc. to DIN 18541) |
13.80 € per metre |
19.90 € per metre |
44.30 € per metre |
|
KRASOflex Joint Tape D (acc. to DIN 18541 BV) |
17.30 € per metre |
25.20 € per metre |
66.30 € per metre |
KRASOflex Construction Joint Tape AA
external construction joint tape, available in factory standard with abP, DIN 18541 and DIN 18541 BV |
DafStB waterproof concrete guideline: stress class 1 + 2
According to factory standard, DIN 18541 or DIN 18541 BV+ Factory standard with general building authority test certificate (abP):Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.+ DIN 18541:Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.+ DIN 18541 BV:Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Construction Joint Tape AA, external, made of thermoplastic, for the sealing of horizontal and vertical construction joint tapes in waterproof concrete buildings. Material properties and profile geometries of the joint tapes meet the requirements according to DIN 15841 and may therefore be used with pressing and non-pressing water, as well as with floor moisture in accordance with DIN 18197.
KRASOflex Construction Joint Tape A
internal construction joint tape | DafStB waterproof concrete guideline: stress class 1 + 2According to factory standard, DIN 18541 or DIN 18541 BV+ Factory standard with general building authority test certificate (abP):Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.+ DIN 18541:Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.+ DIN 18541 BV:Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.+ DafStB waterproof concrete guideline: stress class 1 + 2KRASOflex Construction Joint Tape A, internal, made of thermoplastic, for the sealing of horizontal and vertical construction joint tapes in waterproof concrete buildings. Material properties and profile geometries of the joint tapes meet the requirements according to DIN 18541 and may therefore be used with pressing and non-pressing water, as well as with floor moisture in accordance with DIN 18197. Available on request as a bitumen-compatible design.
KRASOflex Expansion Joint Tape DA
external expansion joint tape, available in factory standard with abP, DIN 18541 and DIN 18541 BV |
DafStB waterproof concrete guideline: stress class 1 + 2
According to factory standard, DIN 18541 or DIN 18541 BV+ Factory standard with general building authority test certificate (abP):Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.+ DIN 18541:Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.+ DIN 18541 BV:Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.+ DafStB waterproof concrete guideline: stress class 1 + 2KRASOflex Construction Joint Tape DA, made of thermoplastic, external,
for the sealing of horizontal and vertical expansion joint tapes in waterproof concrete buildings. Material properties and profile geometries of the joint tapes meet the requirements according to DIN 15841 and may therefore be used with pressing and non-pressing water, as well as with floor moisture in accordance with DIN 18197. Available on request as a bitumen-compatible design.
