KRASOflex Construction Joint Tape AA
KRASOflex Construction Joint Tape AA
external construction joint tape, available in factory standard with abP, DIN 18541 and DIN 18541 BV |
DafStB waterproof concrete guideline: stress class 1 + 2
According to factory standard, DIN 18541 or DIN 18541 BV
+ Factory standard with general building authority test certificate (abP):
Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.
Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.
+ DIN 18541:
Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.
Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.
+ DIN 18541 BV:
Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.
Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Construction Joint Tape AA, external, made of thermoplastic, for the sealing of horizontal and vertical construction joint tapes in waterproof concrete buildings. Material properties and profile geometries of the joint tapes meet the requirements according to DIN 15841 and may therefore be used with pressing and non-pressing water, as well as with floor moisture in accordance with DIN 18197.
Info
BV (bitumen-compatible) available at an additional charge!
|

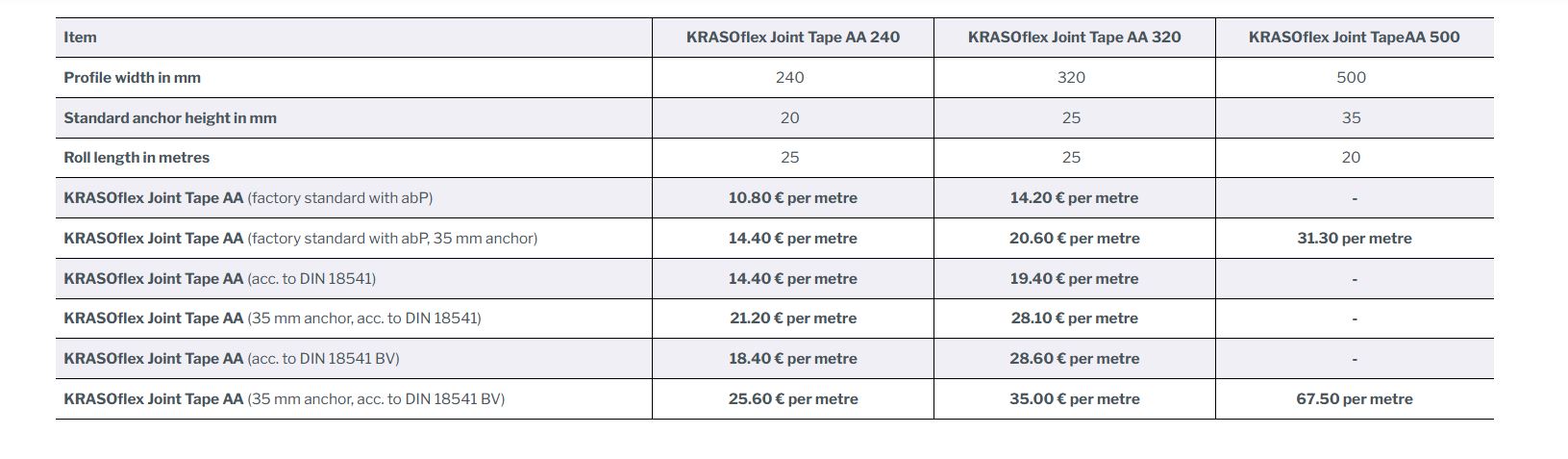

Item |
KRASOflex Joint Tape AA 240 |
KRASOflex Joint Tape AA 320 |
KRASOflex Joint TapeAA 500 |
Profile width in mm |
240 |
320 |
500 |
Standard anchor height in mm |
20 | 25 |
35 |
Roll length in metres |
25 |
25 |
20 |
KRASOflex Joint Tape AA (factory standard with abP) |
10.80 € per metre |
14.20 € per metre |
- |
KRASOflex Joint Tape AA (factory standard with abP, 35 mm anchor) |
14.40 € per metre |
20.60 € per metre |
31.30 per metre |
KRASOflex Joint Tape AA (acc. to DIN 18541) |
14.40 € per metre |
19.40 € per metre |
- |
KRASOflex Joint Tape AA (35 mm anchor, acc. to DIN 18541) |
21.20 € per metre |
28.10 € per metre |
- |
KRASOflex Joint Tape AA (acc. to DIN 18541 BV) |
18.40 € per metre | 28.60 € per metre |
- |
KRASOflex Joint Tape AA (35 mm anchor, acc. to DIN 18541 BV) |
25.60 € per metre |
35.00 € per metre | 67.50 per metre |
KRASOflex Construction Joint Tape ASI
internal construction joint tape,
inside stabilised (factory standard) | DafStB waterproof concrete guideline: stress class 1 + 2
According to factory standard, DIN 18541 or DIN 18541 BV+ Factory standard with general building authority test certificate (abP):Joint tapes in factory standard quality are made on the basis of PVC-P ("soft PVC"). They are perfectly suited for use in waterproof concrete structures with normal exposure. Characterised by their excellent workability, weldability and durability, they offer a great price-performance-ratio.+ DIN 18541:Joint tapes of this quality level meet the requirements of the German Industry Standard for thermoplastic joint tapes for sealing joints in concrete. Based on the material PVC-P, a special composition achieves a particular high quality in terms of elasticity, breaking extension and tensile strength. Joint tapes of this quality level are required for construction projects with very high loads.+ DIN 18541 BV:Joint tapes of DIN 18541 quality are also optionally available in a bitumen-compatible (BV) version.+ DafStB waterproof concrete guideline: stress class 1 + 2KRASO Construction Joint Tape ASI, internal, made of thermoplastic, inside stabilised, for the sealing of horizontal and vertical construction joint tapes in waterproof concrete buildings. Material properties and profile geometries meet the requirements according to KRASOflex factory standard. For use with pressing and non-pressing water, as well as with floor moisture in accordance with general building authority test certificate (abP). Meets the fire performance requirements of class E of the DIN 13501-1.
