KRASOflex Clamp Constructions

KRASOflex Clamp Constructions - Accessories

accessories for clamp constructions | DafStB waterproof concrete guideline: stress class 1 + 2

Info

Downloads

KRASOflex Clamp Constructions - Accessories

Product Information KRASOflex Clamp Construction - Accessories

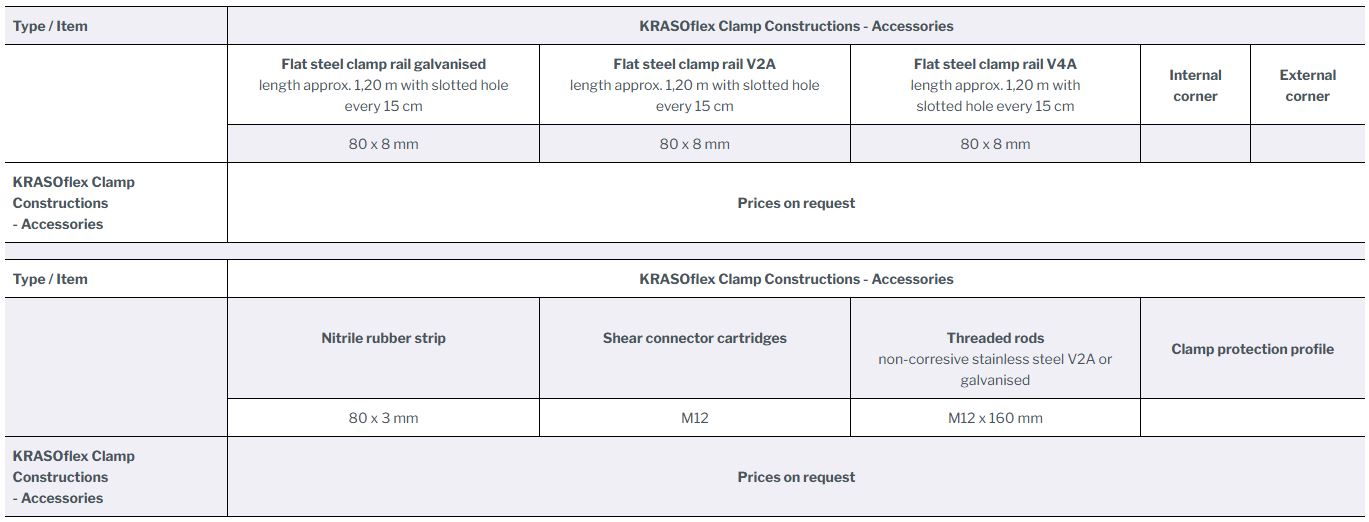

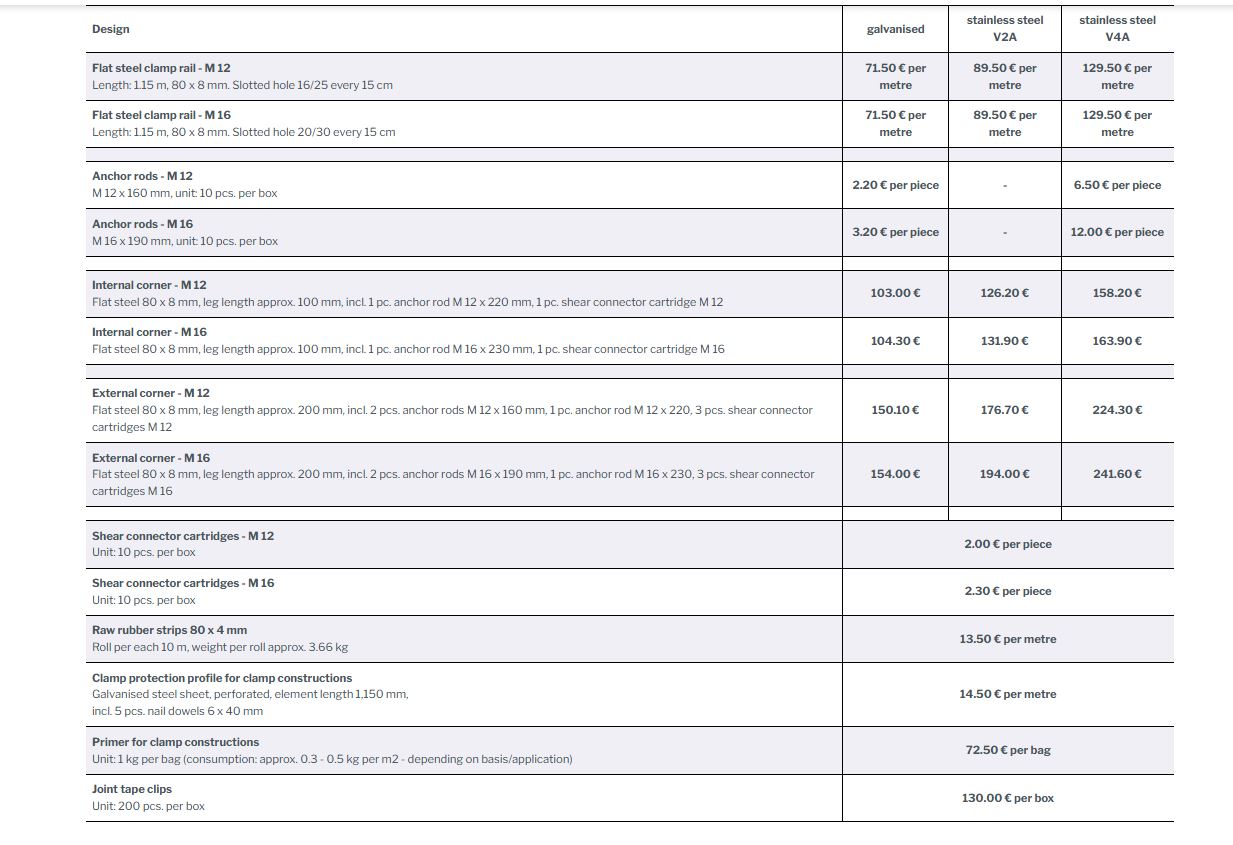

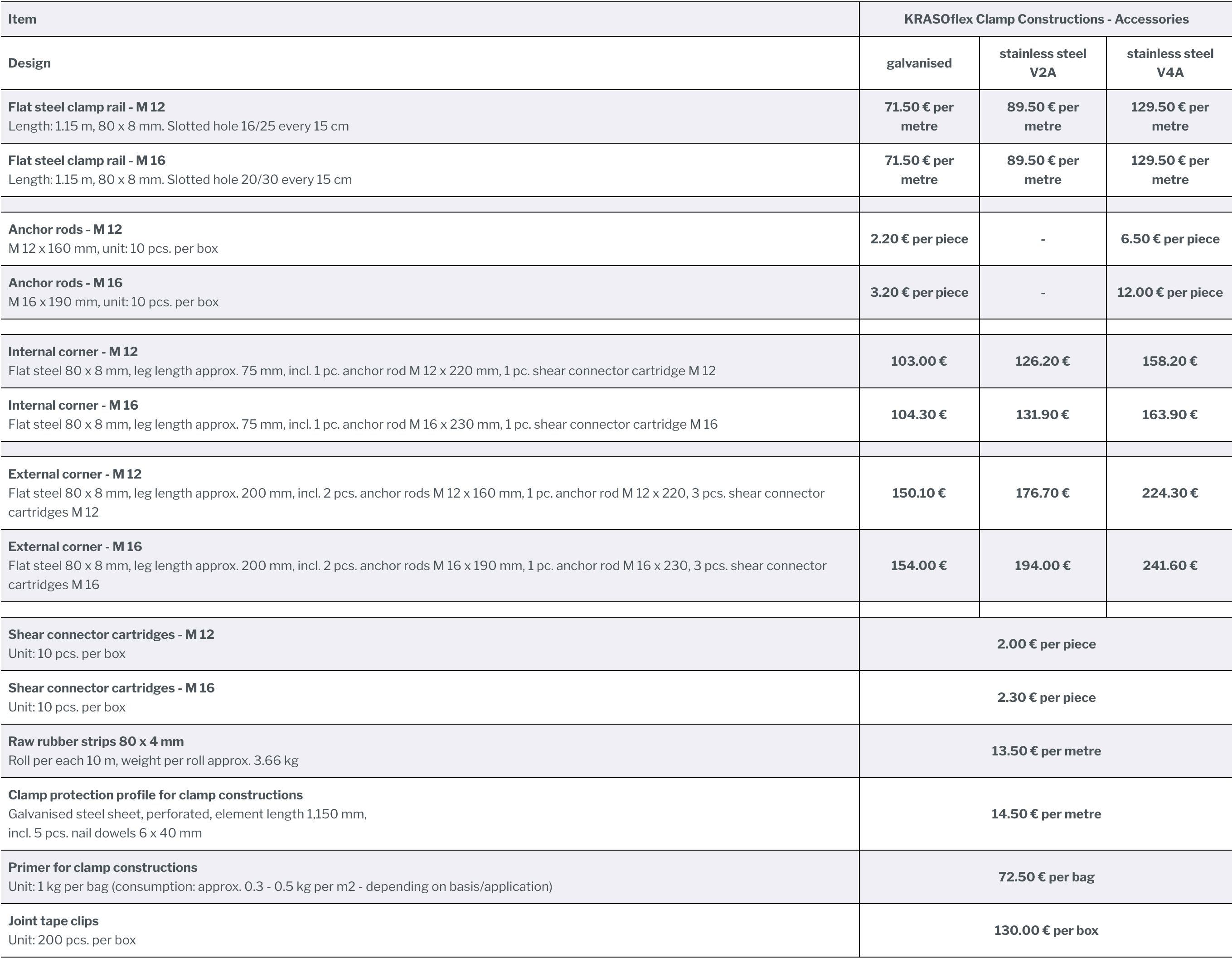

Item	KRASOflex Clamp Constructions - Accessories
Design	galvanised	stainless steel V2A	stainless steel V4A
Flat steel clamp rail - M 12 Length: 1.15 m, 80 x 8 mm. Slotted hole 16/25 every 15 cm	71.50 € per metre	89.50 € per metre	129.50 € per metre
Flat steel clamp rail - M 16 Length: 1.15 m, 80 x 8 mm. Slotted hole 20/30 every 15 cm	71.50 € per metre	89.50 € per metre	129.50 € per metre

Anchor rods - M 12 M 12 x 160 mm, unit: 10 pcs. per box	2.20 € per piece	-	6.50 € per piece
Anchor rods - M 16 M 16 x 190 mm, unit: 10 pcs. per box	3.20 € per piece	-	12.00 € per piece

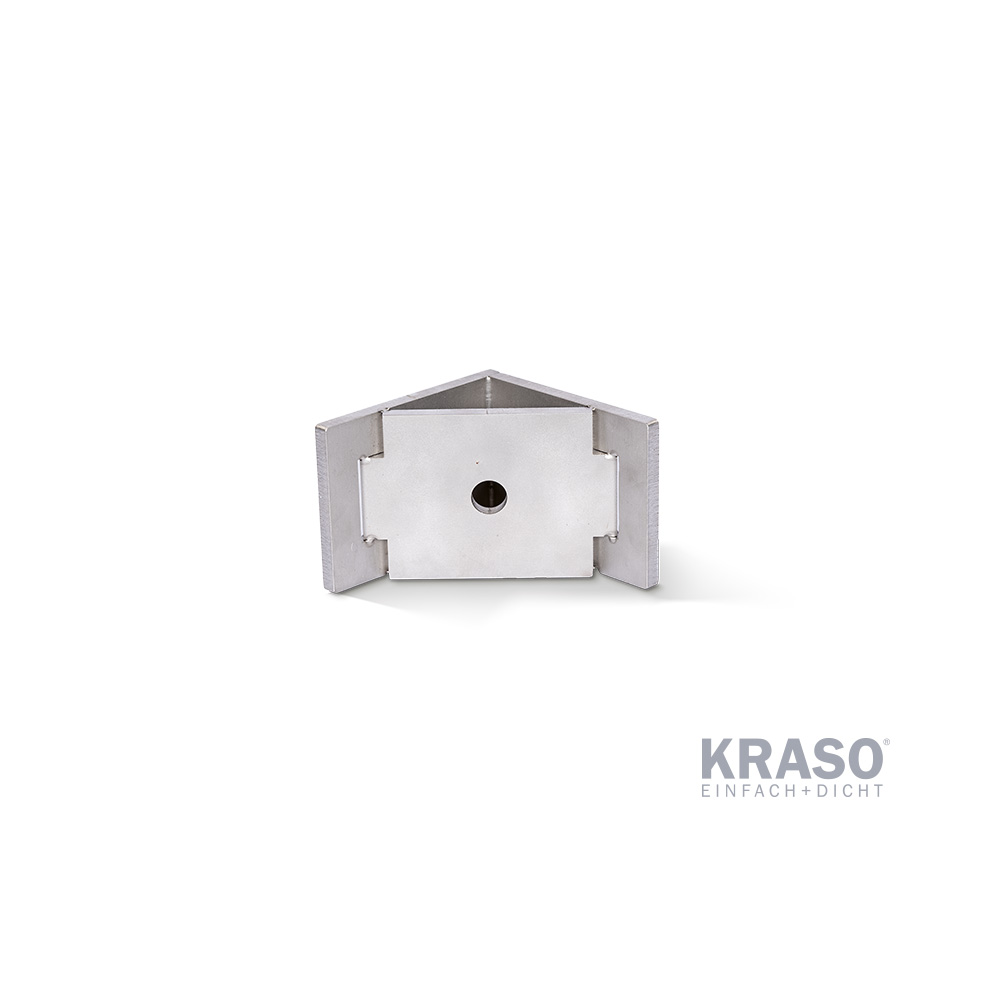

Internal corner - M 12 Flat steel 80 x 8 mm, leg length approx. 100 mm, incl. 1 pc. anchor rod M 12 x 220 mm, 1 pc. shear connector cartridge M 12	103.00 €	126.20 €	158.20 €
Internal corner - M 16 Flat steel 80 x 8 mm, leg length approx. 100 mm, incl. 1 pc. anchor rod M 16 x 230 mm, 1 pc. shear connector cartridge M 16	104.30 €	131.90 €	163.90 €

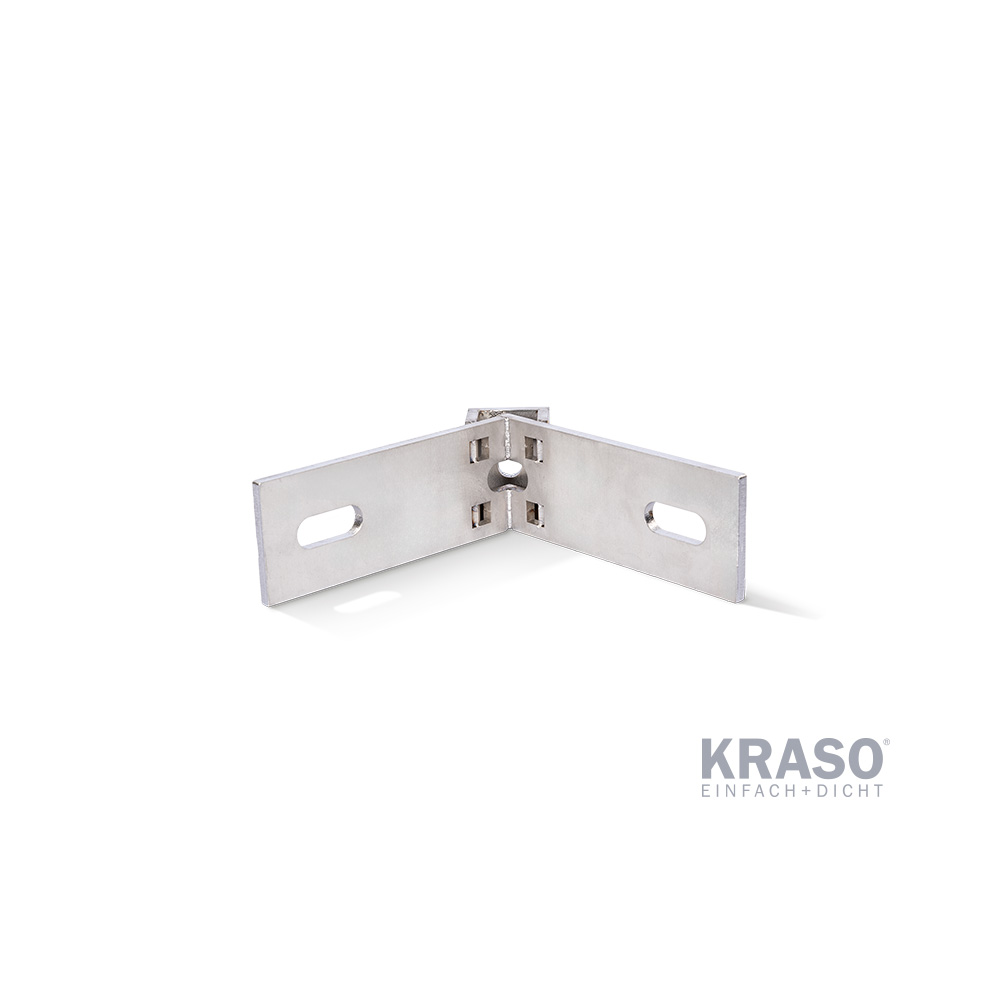

External corner - M 12 Flat steel 80 x 8 mm, leg length approx. 200 mm, incl. 2 pcs. anchor rods M 12 x 160 mm, 1 pc. anchor rod M 12 x 220, 3 pcs. shear connector cartridges M 12	150.10 €	176.70 €	224.30 €
External corner - M 16 Flat steel 80 x 8 mm, leg length approx. 200 mm, incl. 2 pcs. anchor rods M 16 x 190 mm, 1 pc. anchor rod M 16 x 230, 3 pcs. shear connector cartridges M 16	154.00 €	194.00 €	241.60 €

Shear connector cartridges - M 12 Unit: 10 pcs. per box	2.00 € per piece
Shear connector cartridges - M 16 Unit: 10 pcs. per box	2.30 € per piece

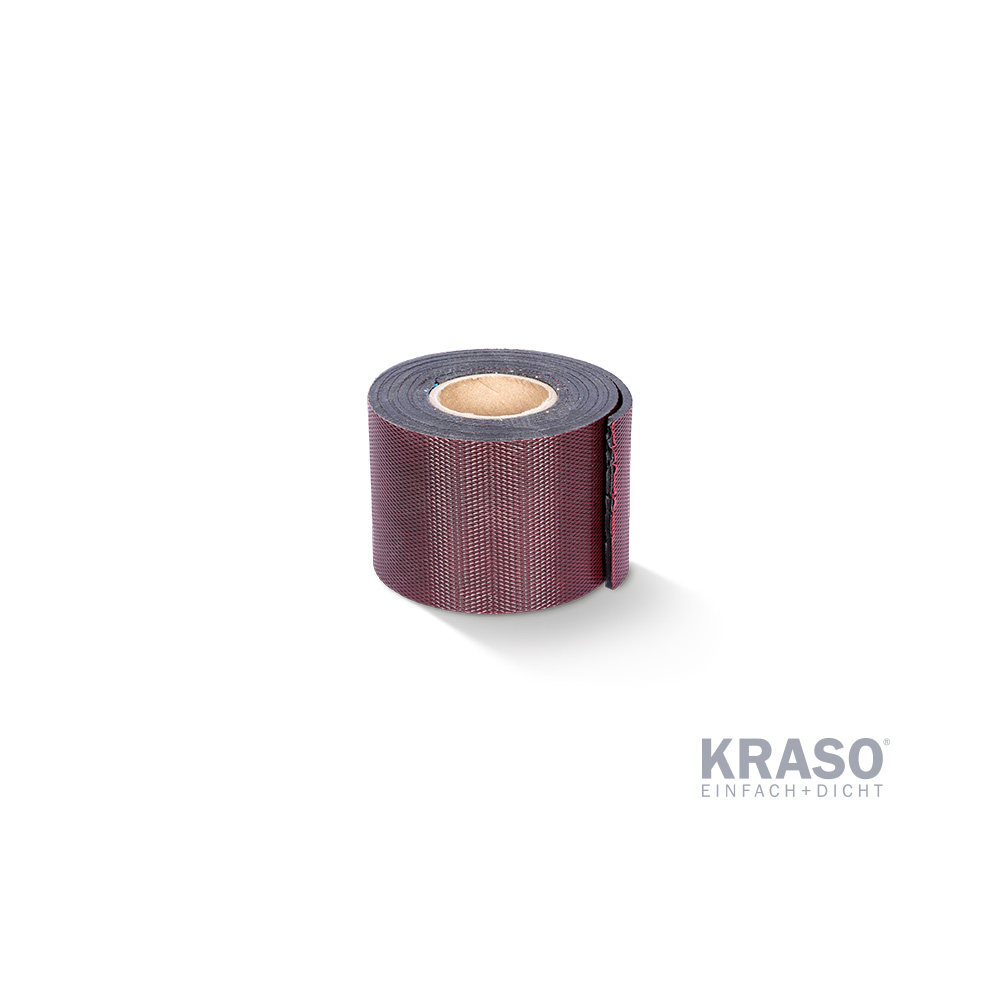

Raw rubber strips 80 x 4 mm Roll per each 10 m, weight per roll approx. 3.66 kg	13.50 € per metre

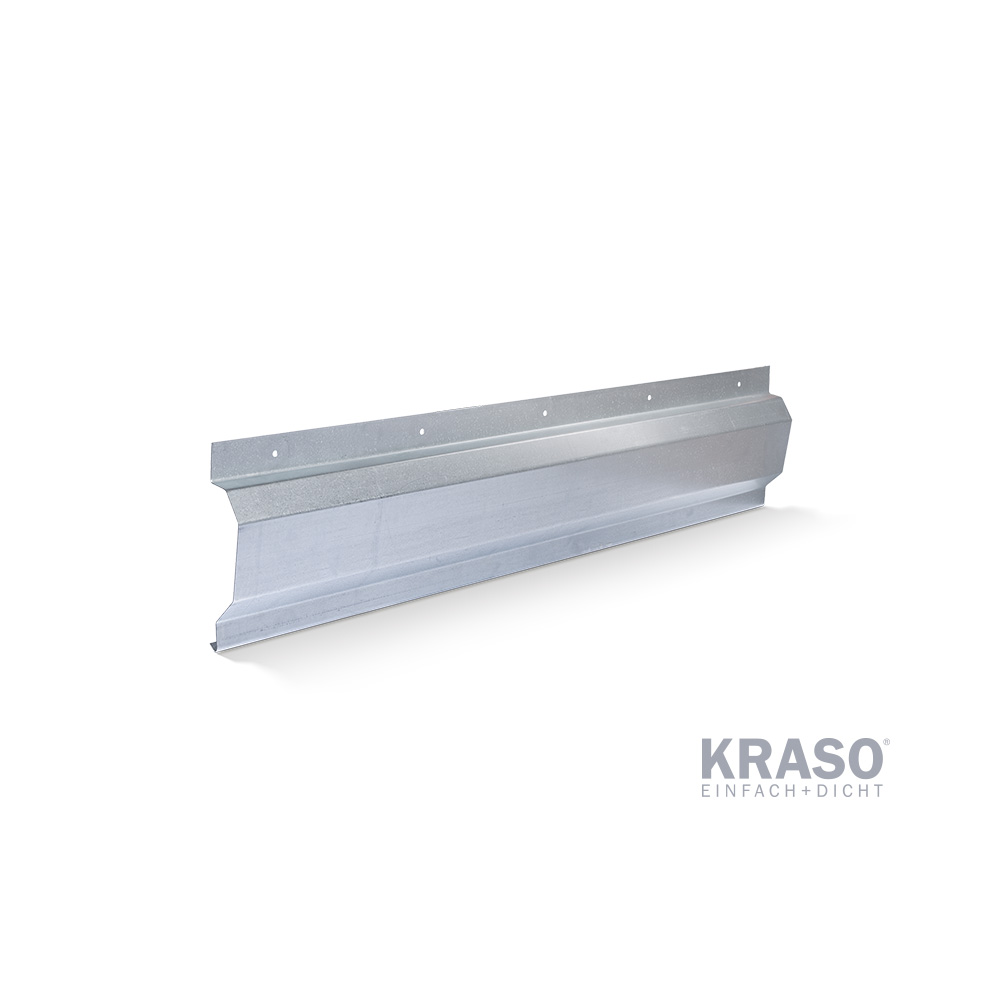

Clamp protection profile for clamp constructions Galvanised steel sheet, perforated, element length 1,150 mm, incl. 5 pcs. nail dowels 6 x 40 mm	14.50 € per metre
Primer for clamp constructions Unit: 1 kg per bag (consumption: approx. 0.3 - 0.5 kg per m2 - depending on basis/application)	72.50 € per bag
Joint tape clips Unit: 200 pcs. per box	130.00 € per box

Downloads auf ausschreiben.de

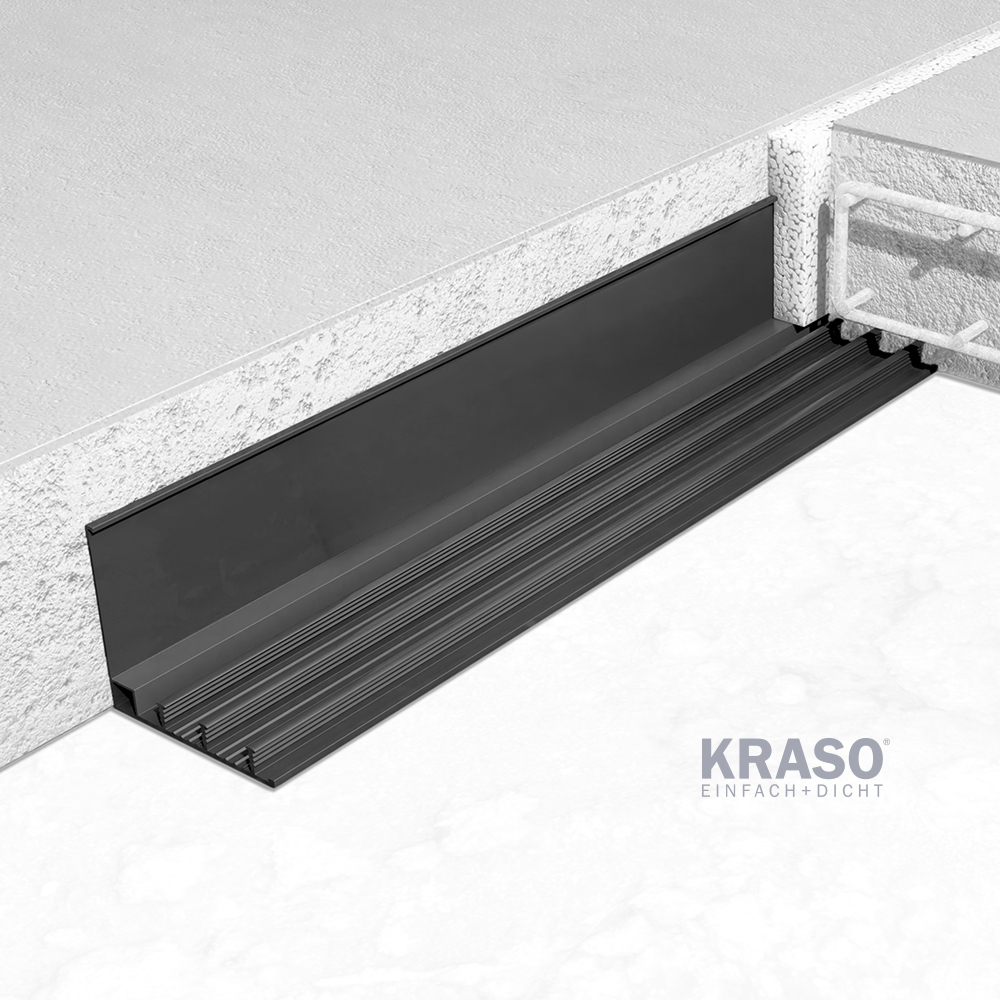

KRASOflex Clamp Joint Tape

internal or external combination joint tape with central hose as corner joint tape, with clamping and concreting part, available according to DIN 18541 and DIN 18541 BV For the connection of new elements to existing elements+ Clamp constructions in stainless steel V4A, V2A or galvanised. Internal and external+ DafStB waterproof concrete guideline: stress class 1 + 2

KRASOflex Clamp Construction

internal or external combination joint tape with central hose as corner joint tape, with clamping and concreting part, available according to DIN 18541-2 and DIN 18541-2 BV, with raw rubber strips, flat steel clamp rail, anchor rods and shear connector cartridges M 12 or M 16 For the connection of new elements to existing elements + Clamp constructions in stainless steel V4A, V2A or galvanised. Internal and external+ DafStB waterproof concrete guideline: stress class 1 + 2
