KRASOflex Clamp Construction

internal or external combination joint tape with central hose as corner joint tape, with clamping and concreting part, available according to DIN 18541-2 and DIN 18541-2 BV, with raw rubber strips, flat steel clamp rail, anchor rods and shear connector cartridges M 12 or M 16

For the connection of new elements to existing elements

+ Clamp constructions in stainless steel V4A, V2A or galvanised. Internal and external

+ DafStB waterproof concrete guideline: stress class 1 + 2

Info

Scope of supply:

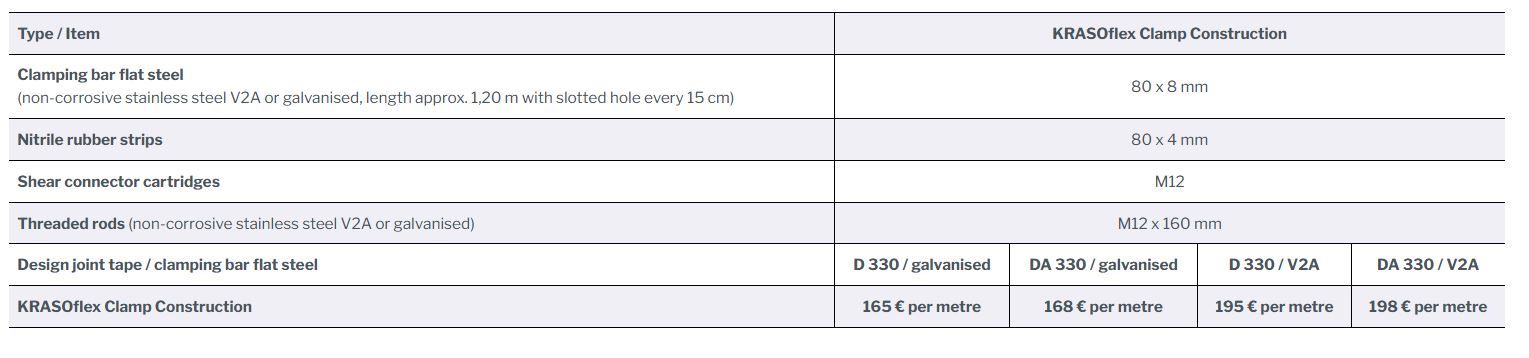

KRASOflex Clamp Construction, set includes the following components per metre: 1 m KRASOflex Clamp Joint Tape, 1 m raw rubber strips 80 x 4 mm, 1 m flat steel clamp rail 80 x 8 mm, slotted hole 15/26 (M 12) or 20/30 (M 16) every 15 cm, 7 pcs. anchor rods M 12 x 160 mm or M 16 x 190, galvanised or stainless steel V4A, 7 pcs. shear connector cartridges M 12 or M 16

Downloads

KRASOflex Clamp Construction

Montageanleitung Klemmkonstruktion

Product Information KRASOflex Clamp Construction

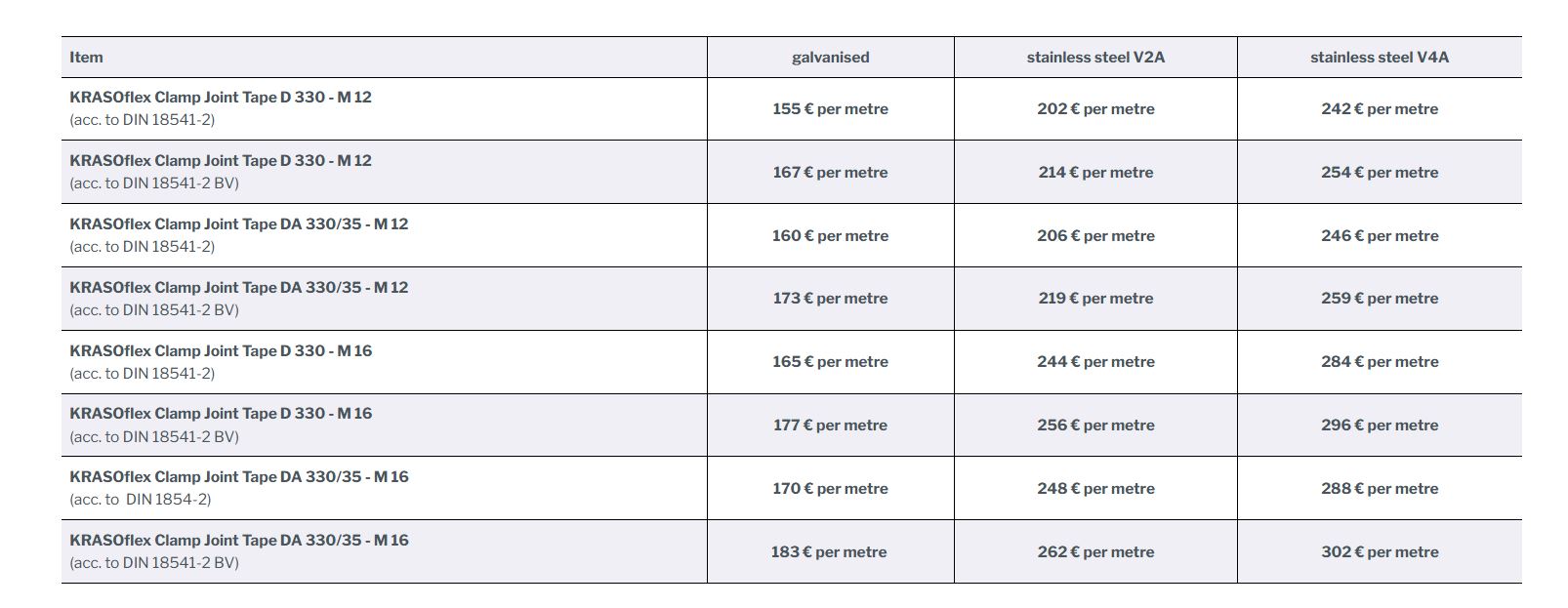

Item	galvanised	stainless steel V2A	stainless steel V4A
KRASOflex Clamp Joint Tape D 330 - M 12 (acc. to DIN 18541-2)	155 € per metre	202 € per metre	242 € per metre
KRASOflex Clamp Joint Tape D 330 - M 12 (acc. to DIN 18541-2 BV)	167 € per metre	214 € per metre	254 € per metre
KRASOflex Clamp Joint Tape DA 330/35 - M 12 (acc. to DIN 18541-2)	160 € per metre	206 € per metre	246 € per metre
KRASOflex Clamp Joint Tape DA 330/35 - M 12 (acc. to DIN 18541-2 BV)	173 € per metre	219 € per metre	259 € per metre
KRASOflex Clamp Joint Tape D 330 - M 16 (acc. to DIN 18541-2)	165 € per metre	244 € per metre	284 € per metre
KRASOflex Clamp Joint Tape D 330 - M 16 (acc. to DIN 18541-2 BV)	177 € per metre	256 € per metre	296 € per metre
KRASOflex Clamp Joint Tape DA 330/35 - M 16 (acc. to DIN 1854-2)	170 € per metre	248 € per metre	288 € per metre
KRASOflex Clamp Joint Tape DA 330/35 - M 16 (acc. to DIN 18541-2 BV)	183 € per metre	262 € per metre	302 € per metre

Downloads auf ausschreiben.de

KRASOflex Clamp Constructions - Accessories

accessories for clamp constructions | DafStB waterproof concrete guideline: stress class 1 + 2
