KRASO Wall Penetration Type DFW for KG 2000


KRASO Wall Penetration Type DFW for KG 2000
in accordance with DIN EN 14758, for installation into triple walls, for the connection to KG 2000 pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
Easy and secure sealing in precast walls
+ For the installation in triple wall elements: stop occurring water at the outer shell!
+ KRASO Type
DFW 4: KRASO 2 Seal on both sides - MPA-tested
up to 3.5 bar!
+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested
up to 10 bar!
+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested
up to 10 bar!
+ IAF-tested: radon-tight!
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Type DFW 4 for KG 2000, KRASO Type DFW 6 for KG 2000 or KRASO Type DFW 8 for KG 2000, 2 KRASO Covers as an installation aid
KRASO Type DFW 4 for KG 2000, KRASO Type DFW 6 for KG 2000 or KRASO Type DFW 8 for KG 2000, 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Wall Penetration Type DFW for KG 2000

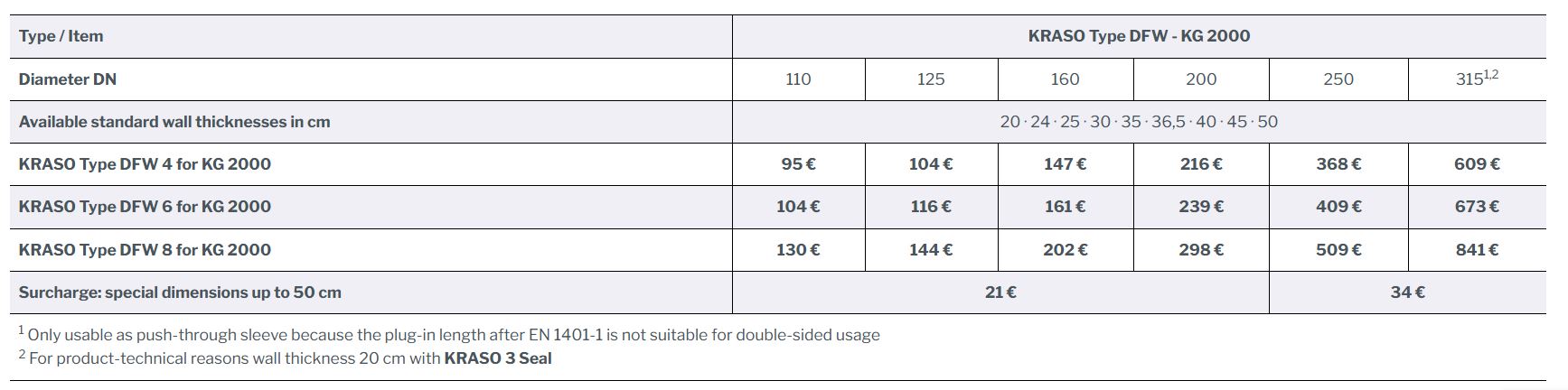

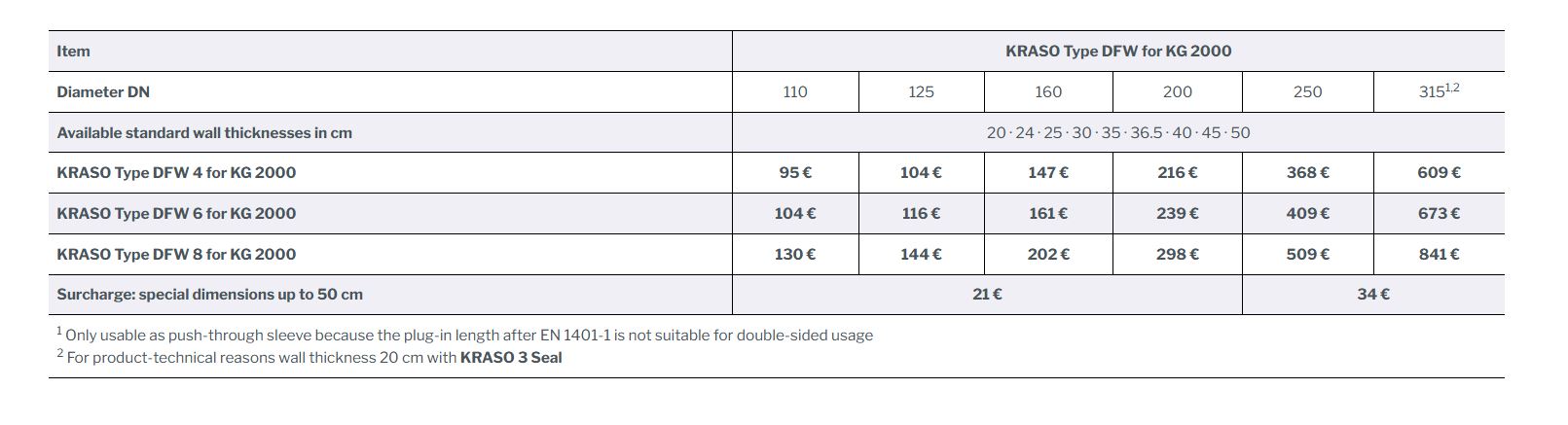

Type / Item |
KRASO Type DFW - KG 2000 |
|||||
Diameter DN |
110 |
125 |
160 |
200 |
250 |
3151,2 |
Available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50 |
|||||
KRASO Type DFW 4 for KG 2000 |
95 € |
104 € |
147 € |
216 € |
368 € |
609 € |
KRASO Type DFW 6 for KG 2000 |
104 € |
116 € |
161 € |
239 € |
409 € |
673 € |
KRASO Type DFW 8 for KG 2000 |
130 € |
144 € |
202 € |
298 € |
509 € |
841 € |
Surcharge: special dimensions up to 50 cm |
21 € |
34 € |
||||
1 Only usable as push-through sleeve because the plug-in length after EN 1401-1 is not suitable for double-sided usage 2 For product-technical reasons wall thickness 20 cm with KRASO 3 Seal |
