KRASO System Sealing Insert KDS 150 Universal Multiple - split -

Designs

Universal

Design 1

Design 2

Design 3

External diameter

1 x 63, 75, 90 or 110 mm

3 x 6 - 52 mm or blind

4 x 6 - 18 mm or blind, 6 x 6 - 33 mm or blind

6 x 6 - 38 mm or blind

KRASO System Sealing Insert KDS 150 Universal Multiple - split -

for installation of one or several media lines/cables, for installation into the bayonet fitting of KRASO Cable Penetration KDS 150, split design for retrofit installation, Torque Control Nut KRASO DKM, 30 mm seal, external diameter 160 mm, specifically for the use in cable penetrations | DafStB waterproof concrete guideline: stress class 1 + 2

Universally usable - multiply flexible

+ For core drillings and casings

+ Stepless onion ring technology: universally usable for various external diameters of media lines/cables - also for multiple installation! Split design for retrofit installation!

+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ MPA-tested: protects reliably against pressing water up to 2,5 bar!

+ Gas- and odour tight - high-quality in terms of TA-Air!

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

+ Certified with the quality seal of the FHRK e. V.

+ DafStB waterproof concrete guideline: stress class 1 + 2

Info

Further special designs available on request!

Downloads

KRASO System Sealing Insert KDS 150 Universal Multiple - split -

Data Sheet System Sealing Insert KDS 150 Universal Multiple - split -

FHRK-Zertifikat KRASO Dichteinsatz Universal Mehrfach geteilt

Installation Instructions KRASO Sealing Inserts

Product Information KRASO System Sealing Insert KDS 150 Universal Multiple - split -

Prüfbericht KRASO Dichteinsatz Universal Mehrfach geteilt TA Luft

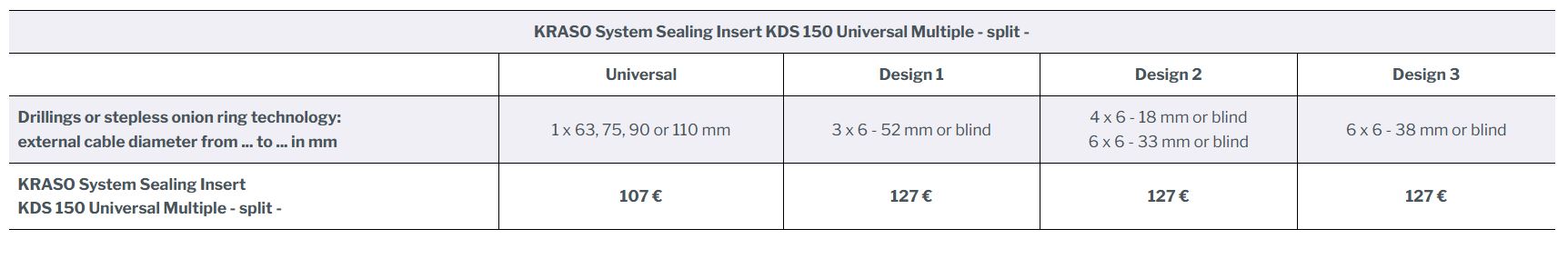

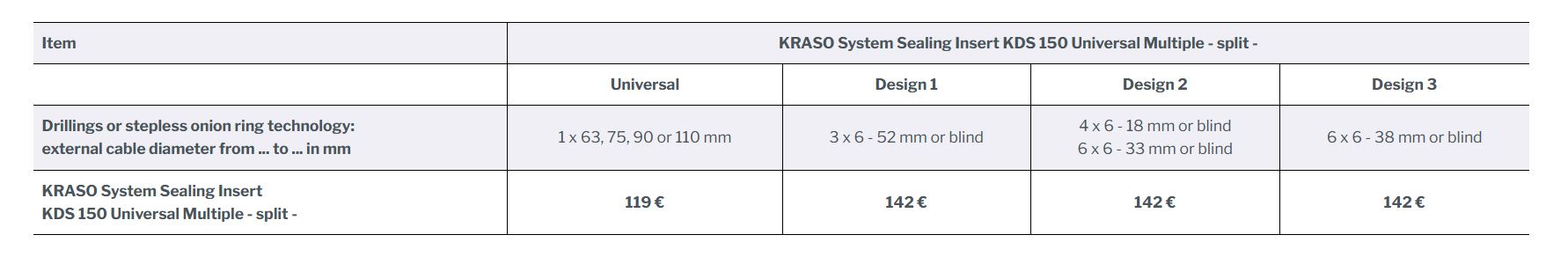

Item	KRASO System Sealing Insert KDS 150 Universal Multiple - split -
	Universal	Design 1	Design 2	Design 3
Drillings or stepless onion ring technology: external cable diameter from ... to ... in mm	1 x 63, 75, 90 or 110 mm	3 x 6 - 52 mm or blind	4 x 6 - 18 mm or blind 6 x 6 - 33 mm or blind	6 x 6 - 38 mm or blind
KRASO System Sealing Insert KDS 150 Universal Multiple - split -	119 €	142 €	142 €	142 €

KRASO Spacer

guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather- and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
