KRASO Sealing Insert Type TD-X
KRASO Sealing Insert Type TD-X
for installation of pipes| DafStB waterproof concrete guideline: Stress class 1 + 2
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressurised water up to 10 bar!

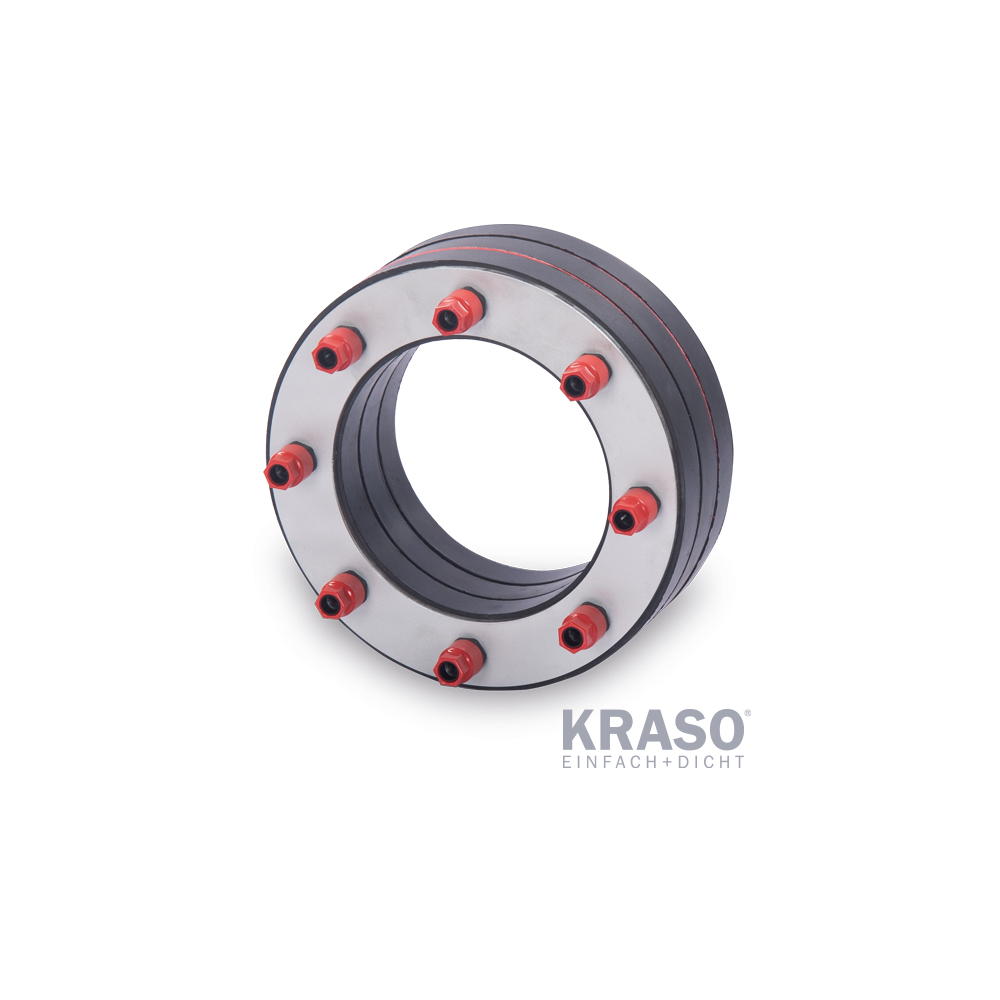

The trio seal of a superior class
+ For core drillings or casings

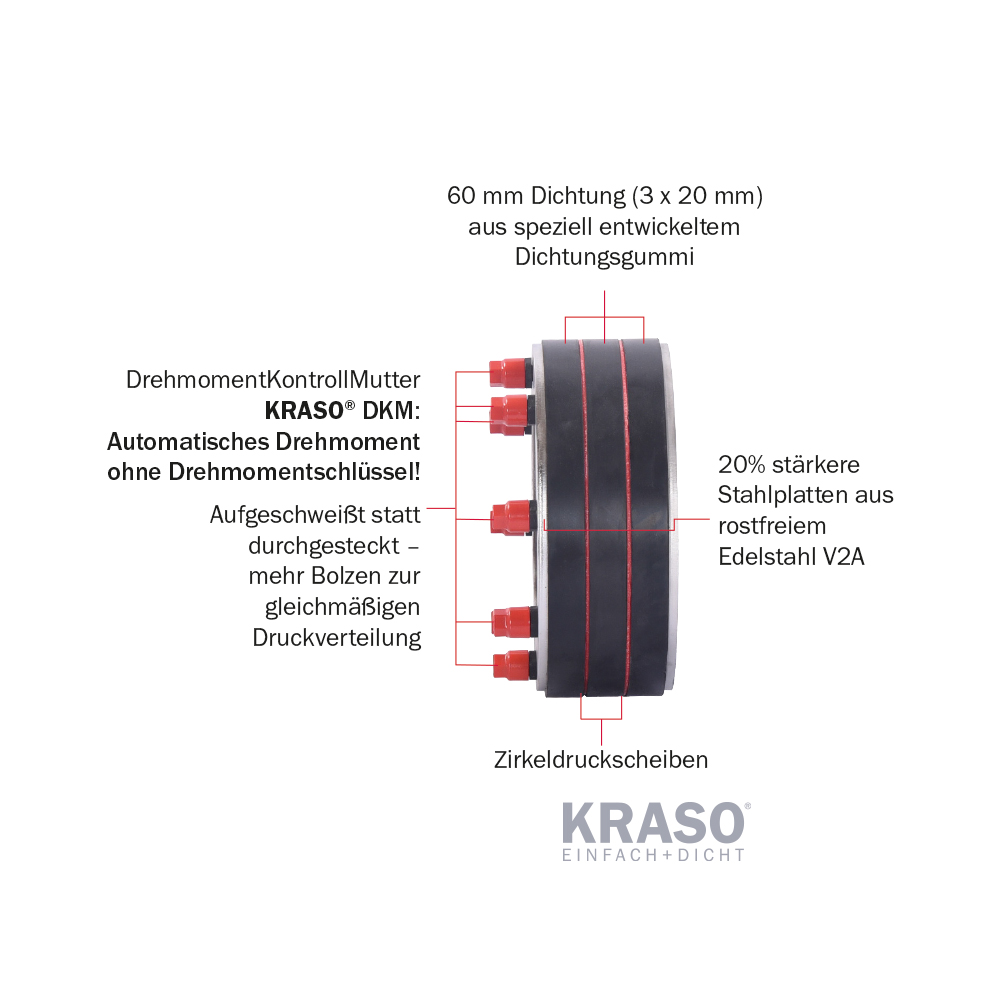

+ 20% thicker steel plates made of non-corrosive stainless steel V2A!
+ Triple sealing with a 60 mm seal made of specially developed sealing rubber!
+ Two circular pressure disks guarantee optimal pressure distribution!
+ More studs for even pressure distribution, welded-on studs instead of through-bolts!

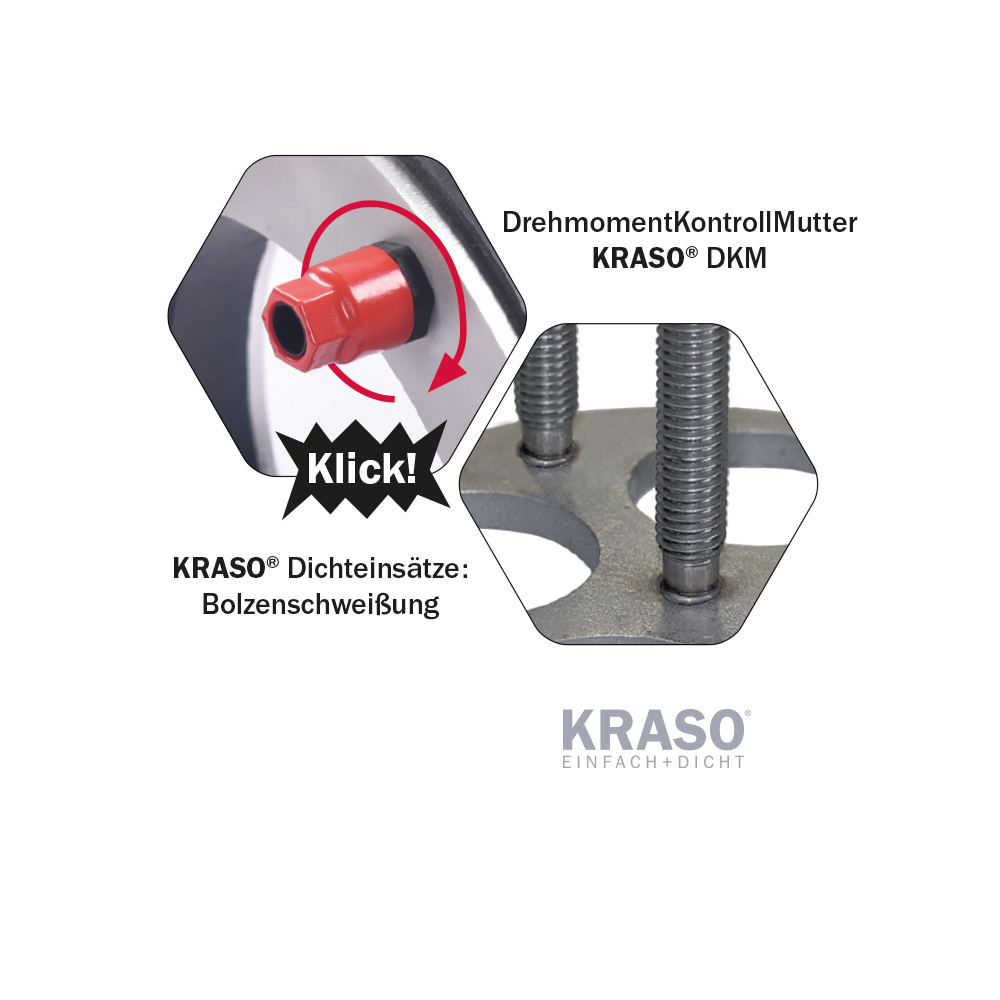

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Gas and odour tight - high-quality in terms of TA-Air!
+ Radon tightness IAF-tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Radon tightness IAF-tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according FHRK testing specification GE 101!
+ DafStB waterproof concrete guideline: Stress class 1 + 2.
Info
All sizes and diameters available on request! All sealing inserts available in V4A for an additional charge!
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
Montageanleitung
-
Produktinfo_KRASO_Dichteinsatz_Typ_TD-X (1012.04 KiB)
-
Product_Information_KRASO_Sealing_Insert_TD_X (381.35 KiB)
-
Data Sheet_KRASO_Sealing_Insert_TDX (316.69 KiB)
-
Datenblatt_KRASO_Dichteinsatz_Typ_TD_X_zv (294.86 KiB)
-
FHRK-Zertifikat_KRASO_Dichteinsätze (314.74 KiB)
-
Prüfbericht_KRASO_Dichteinsatz_Typ_TDX (2.84 MiB)
-
TestCertificate_KRASO_Sealing_Insert_FHRK (1.61 MiB)
-
TestCertificate_KRASO_Sealing_Insert_Radon (1.61 MiB)
-
Prüfbericht_KRASO_Dichteinsätze_Radondichtheit (344.1 KiB)
|

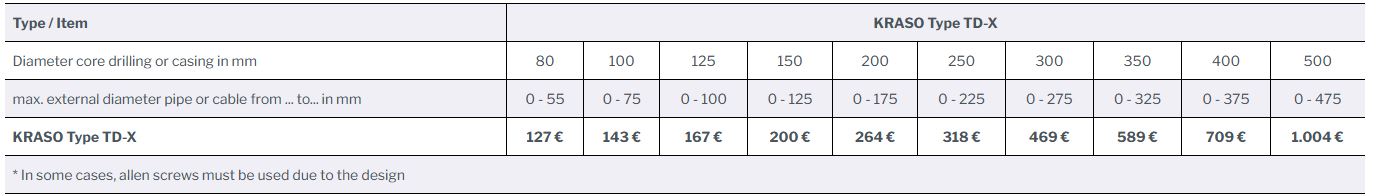

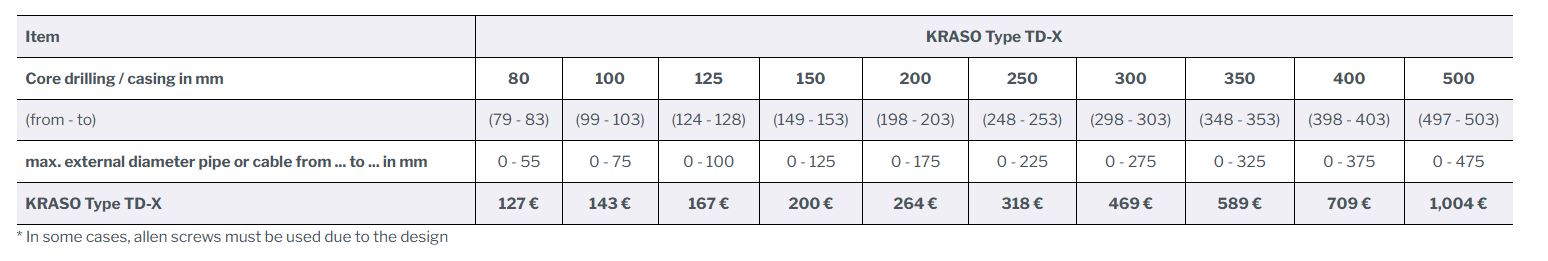

Type / Item |
KRASO Type TD-X |
|||||||||
|
Diameter core drilling or casing in mm |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
|
max. external diameter pipe or cable from ... to... in mm |
0 - 55 |
0 - 75 |
0 - 100 |
0 - 125 |
0 - 175 |
0 - 225 |
0 - 275 |
0 - 325 |
0 - 375 |
0 - 475 |
|
KRASO Type TD-X |
127 € |
143 € |
167 € |
200 € |
264 € |
318 € |
469 € |
589 € |
709 € |
1.004 € |
|
* In some cases, allen screws must be used due to the design. |
||||||||||
KRASO Sealing Insert Type GR
for installation of ribbed or corrugated media pipes | DafStB waterproof concrete guideline: stress class 1 + 2
The sealing insert for ribbed media pipes
+ For corrugated and ribbed pipes!+ With a specially developed soft rubber seal - double the sealing with 40 mm seal or quadruble sealing with 80 mm seal - and central pressure disk for even pressure distribution
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, more studs for even pressure distribution, welded-on studs instead of through bolts.+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ MPA-tested: protects reliably against pressing water up to 1 bar / 2 bar!+ Gas- and odour-tight - high quality in terms of TA-Air!+ Radon tightness IAF-tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ Tested according to FHRK test specification GE 101!+ DafStB waterproof concrete guideline: Stress class 1 + 2.
KRASO Sealing Insert Universal Multiple - split -
for simultaneous installation of several media lines/cables, split design for retrofit installation | DafStB waterproof concrete guideline: Stress class 1 + 2
Universally usable - multiply flexible+ For core drillings and casings
+ Stepless onion ring technology: universally usable for various external diameters of media lines/cables - even with several drillings! Split design for retrofit installation!
+ KRASO Sealing Insert quality: 5 mm tick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to 2,5 bar!+ Gas and odour tight - high-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ Tested according to FHRK testing specification GE 101.+ DafStB waterproof concrete guideline: Stress class 1 + 2.
KRASO Sealing Insert Universal DD
for installation of pipes or cables, double sealing against
pressing water up to 3 bar. Can also be used as blind plug for feed-through of
pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB
waterproof concrete guideline: stress class 1 + 2Simple, tight, universal use
+ For core drillings or casings
+ Onion ring technology: universal use for various external
diameters of media pipes or cables!
+ KRASO Sealing Insert quality: non-corrosive stainless
steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts
+ Torque Control Nut KRASO DKM: integrated torque limiter -
no torque wrench required!
+ MPA-tested: protects reliably against pressing water up to
3 bar!
+ Gas- and odour-tight – high-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for
radon precautionary areas according to FHRK leaflet MB 101!
+ Tested according to FHRK test specification GE 101!
+ DafStB waterproof concrete guideline: stress class 1 + 2
