KRASO Sealing Insert Type FBV/GF
KRASO Sealing Insert Type FBV/GF

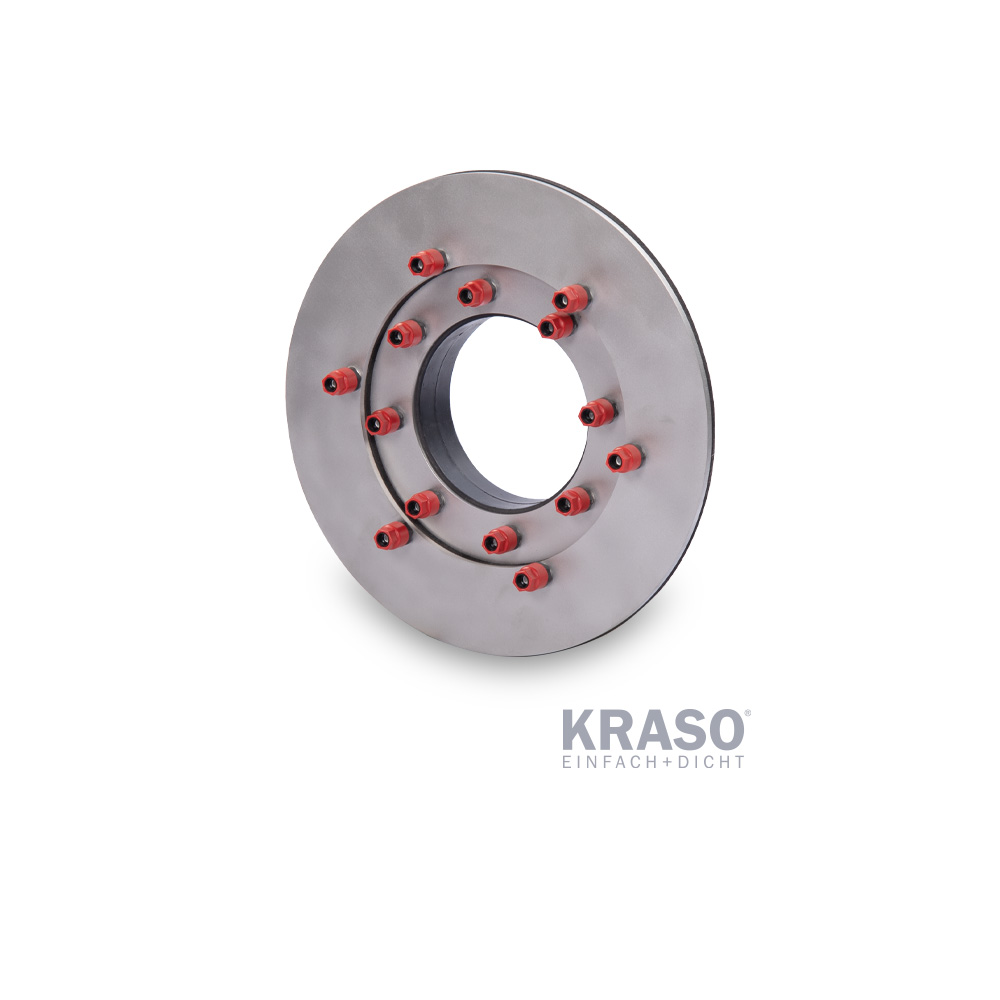

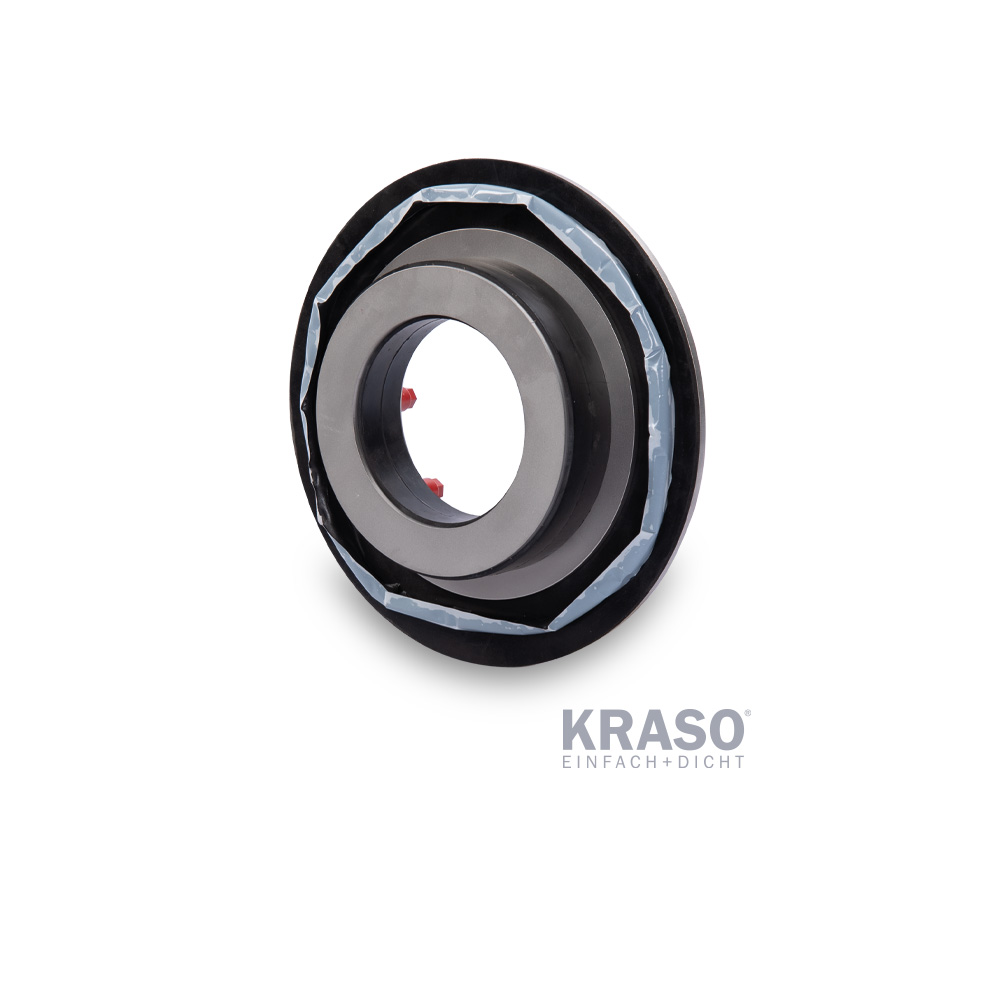

for installation of pipe or cables , for casing or core drilling, with large flange and additional sealing flange incl. butyl sealing band for the integration of FBV films, Torque Control Nut KRASO DKM*, non-corrosive stainless steel V2A, against pressing water up to 2.5 bar. | DafStB waterproof concrete guideline: stress class 1 + 2
Info
All sizes and diameters available on request!
Downloads
|

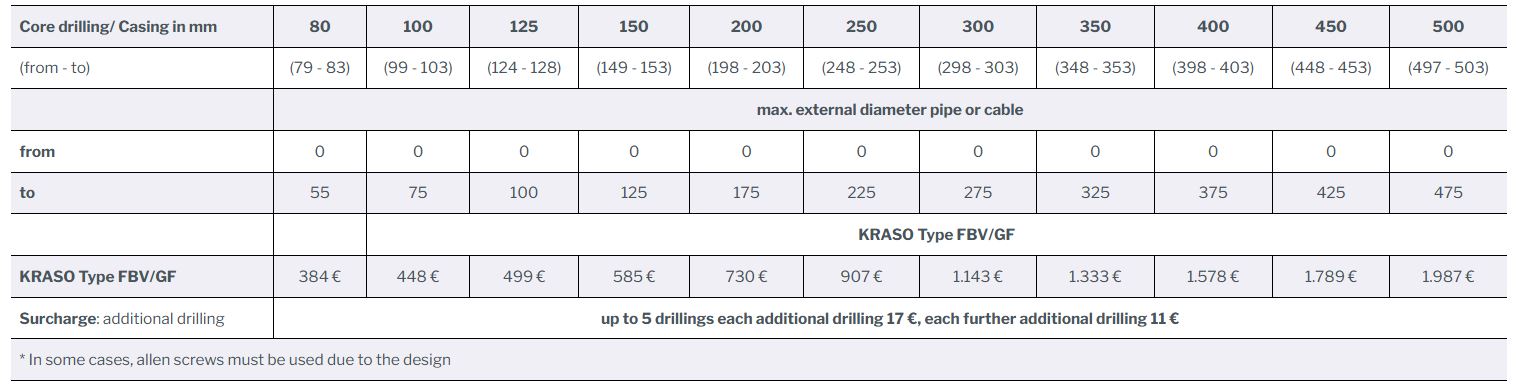

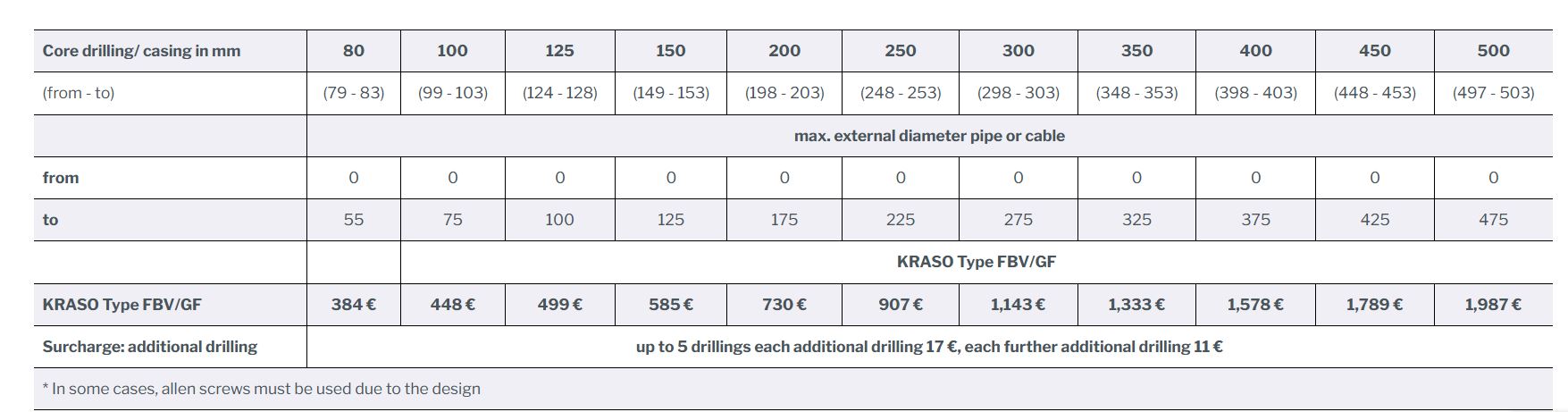

Core drilling/ Casing in mm |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
(from - to) |
(79 - 83) |
(99 - 103) |
(124 - 128) |
(149 - 153) |
(198 - 203) |
(248 - 253) |
(298 - 303) |
(348 - 353) |
(398 - 403) |
(448 - 453) |
(497 - 503) |
|
max. external diameter pipe or cable |
|||||||||||
|
from |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
to |
55 |
75 |
100 |
125 |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
|
KRASO Type FBV/GF |
|||||||||||
|
KRASO Type FBV/GF |
384 € |
448 € |
499 € |
585 € |
730 € |
907 € |
1.143 € |
1.333 € |
1.578 € |
1.789 € |
1.987 € |
|
Surcharge: additional drilling |
up to 5 drillings each additional drilling 17 €, each further additional drilling 11 € |
||||||||||
|
* In some cases, allen screws must be used due to the design |
|||||||||||
KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts
+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.
KRASO Cable Penetration FBV-KDS as double wall penetration
cable penetration system for concreting | DafStB waterproof concrete guideline: stress class 1 + 2
Double wall penetration as FBV system
+ Cable penetration for the compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) of all manufacturers can be integrated at the factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant wall material!
+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical-scientific institutions or in industrial and commercial sectors+ With plug-in system on both sides for forming packages!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Casing Type FBV-FE
thick-walled plastic casing for a compliant integration of FBV films | DafStB waterproof concrete guideline: stress class 1 + 2
The casing for FBV integration
+ Casing for a compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) of all manufacturers can be integrated at the factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ The thick-walled true diameter plastic casing for concreting: as a recess for retrofit installation of cables or pipes using a sealing insert!
+ With water pressure tight surrounding KRASO 4 Seal - certified and approved: due to the special geometry, the 4 Seal produces a water pressure, gas- and odour-tight grip with the concrete + Materials and processing: KRASO Casings are made of weatherproof and impact resistant plastic. The surrounding KRASO 4 Seal is joined monolithically to the plastic pipe by vulcanization.+ IAF tested: radon-tight!+ Certified with the quality seal of the FHRK e. V. + DafStB waterproof concrete guideline: stress class 1 + 2
