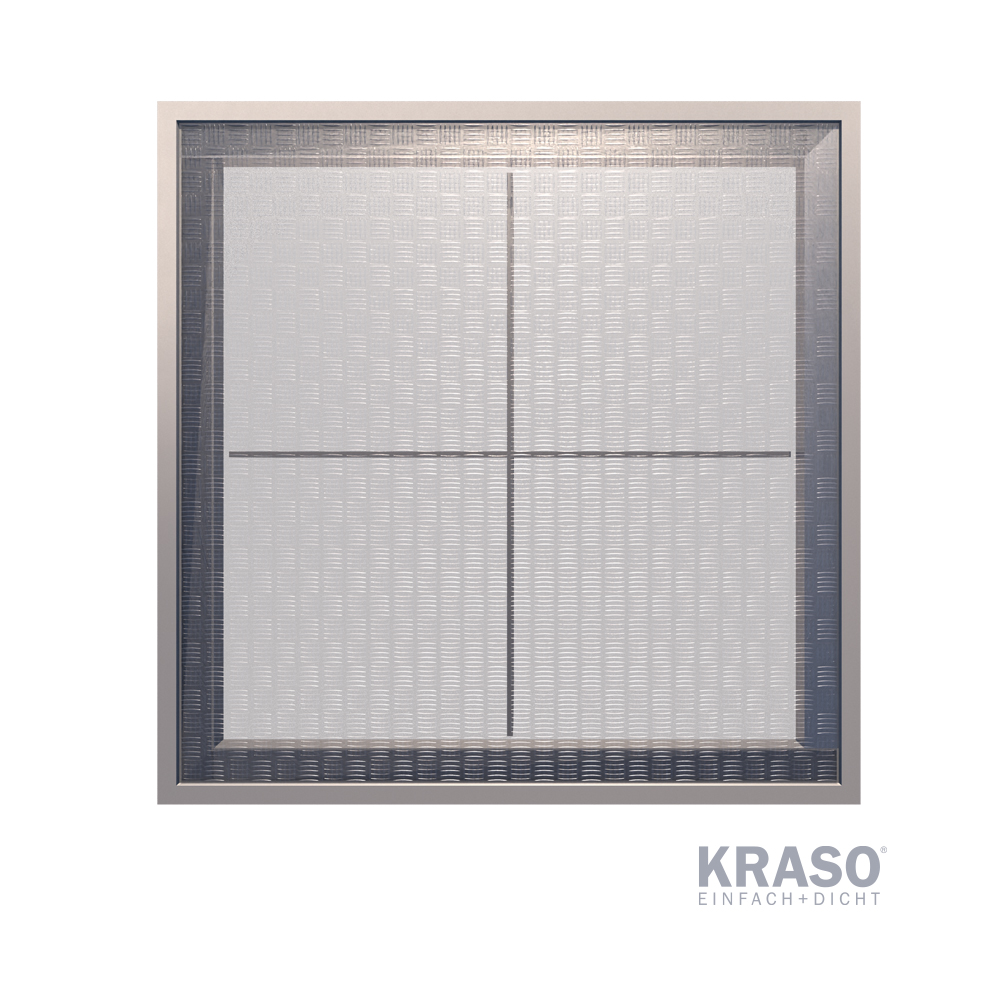

KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t

KRASO Pump Sump FBV - concrete -

for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts + Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.

KRASO Inspection Shaft - concrete -

as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money - in one piece cast + Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump FBV - concrete -

for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts + Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.

KRASO Inspection Shaft - concrete -

as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money - in one piece cast + Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump FBV - concrete -

for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts + Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.

KRASO Inspection Shaft - concrete -

as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money - in one piece cast + Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump FBV - concrete -

for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts + Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.

KRASO Inspection Shaft - concrete -

as maintenance opening, made of waterproof concrete (C35/45), with 12 cm strong, reinforced walls in one piece cast, with surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus“, rebar connection 8/15 and crane lifting lugs for easy placement on-site, incl. 2 opposite KRASO Pipe Connections DN 160 bottom edge approx. 20 cm, suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money - in one piece cast + Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to the crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump Type Q - square -

for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days! + DafStB waterproof concrete guideline: stress class 1 + 2

KRASO Pump Sump - concrete -

for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2 Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs! + DafStB waterproof concrete guideline: stress class 1 + 2

Type/Item	KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t
Pump sump dimension in cm	60 x 60	80 x 80	100 x 100	120 x 120
Cover size in mm	700 x 700	900 x 900	1100 x 1100	1275 x 1275
Cover in mm	6/8
Frame height in mm	38
Outer frame in mm	745 x 745	945 x 945	1145 x 1145	1320 x 1320
Clear frame in mm	635 x 635	835 x 835	1035 x 1035	1210 x 1210
Stiffening in mm	8
Stiffening height in mm	100
Stiffening quantity	1	2	2	3
Concrete anchors, pieces	4	8	8	8
KRASO Pump Sump Cover - fit for traffic up to 15 t, wheel pressure up to 3,75 t	735 €	1.047 €	1.919 €	2.597 €
