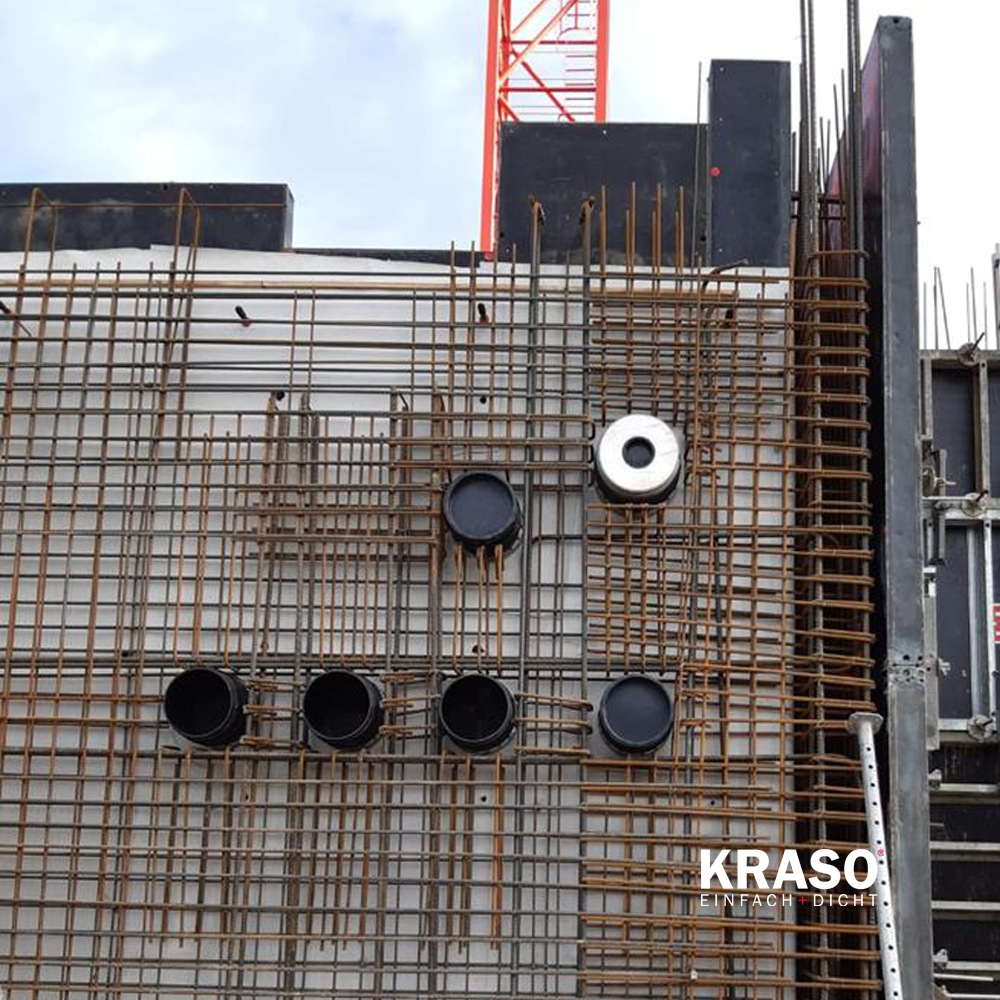

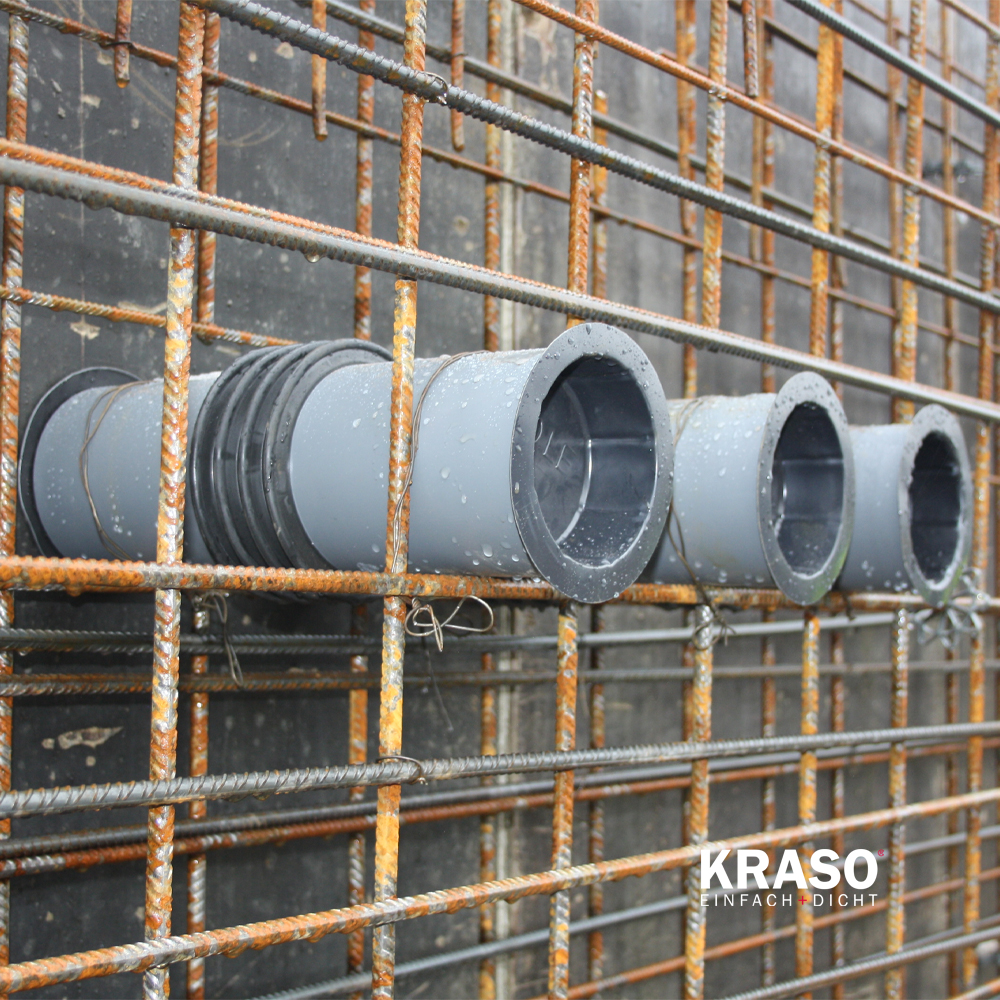

KRASO Casing Type FE and FE/MI
KRASO Casing Type FE and FE/MI

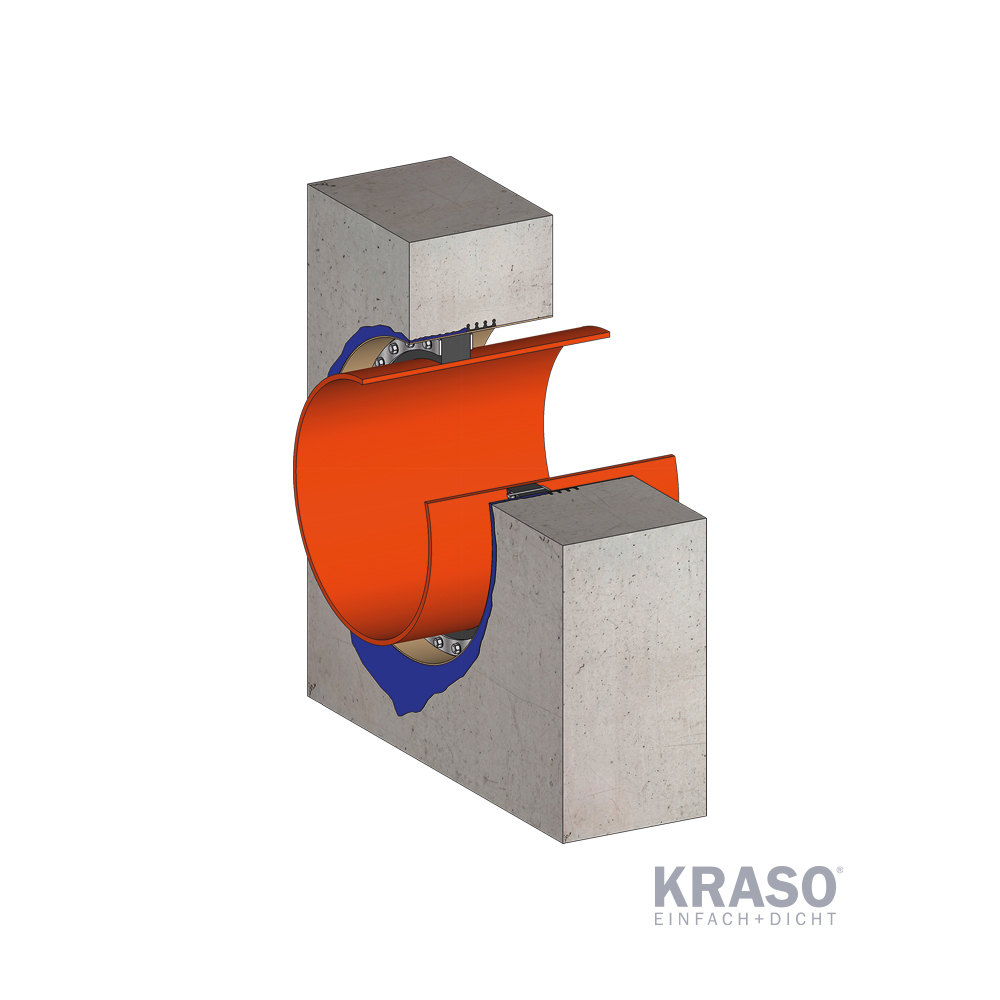

recess for retrofit installation of cables or pipes using a sealing insert (not included in the scope of supply) • plastic - true diameter casing with
reinforced inner core, with eyelets, shear key and enclosed fixed claw as an installation aid, ID = InternalDiameter true diameter casing | DafStB
waterproof concrete guideline: stress class 1 + 2
For all diameters!
+ Thick-walled true diameter plastic casing for concreting
+ KRASO 4 Seal – MPA-tested up to 10 bar!
Gas- and odour-tight – high-quality in terms of TA-Air!
+ IAF-tested: radon-tight!
+ Certified with the quality seal of the FHRK e. V.
+
Material and processing: weatherproof, impact-resistant plastic,
KRASO 4 Seal joined monolithically to the plastic pipe by vulcanization
+
Every diameter and every wall thickness available at short notice!
If necessary, the size can be adapted individually on the construction-site!
+
Low weight: easy handling, simple installation, low transport costs!
+
Including installation covers! No pre-treatment required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:

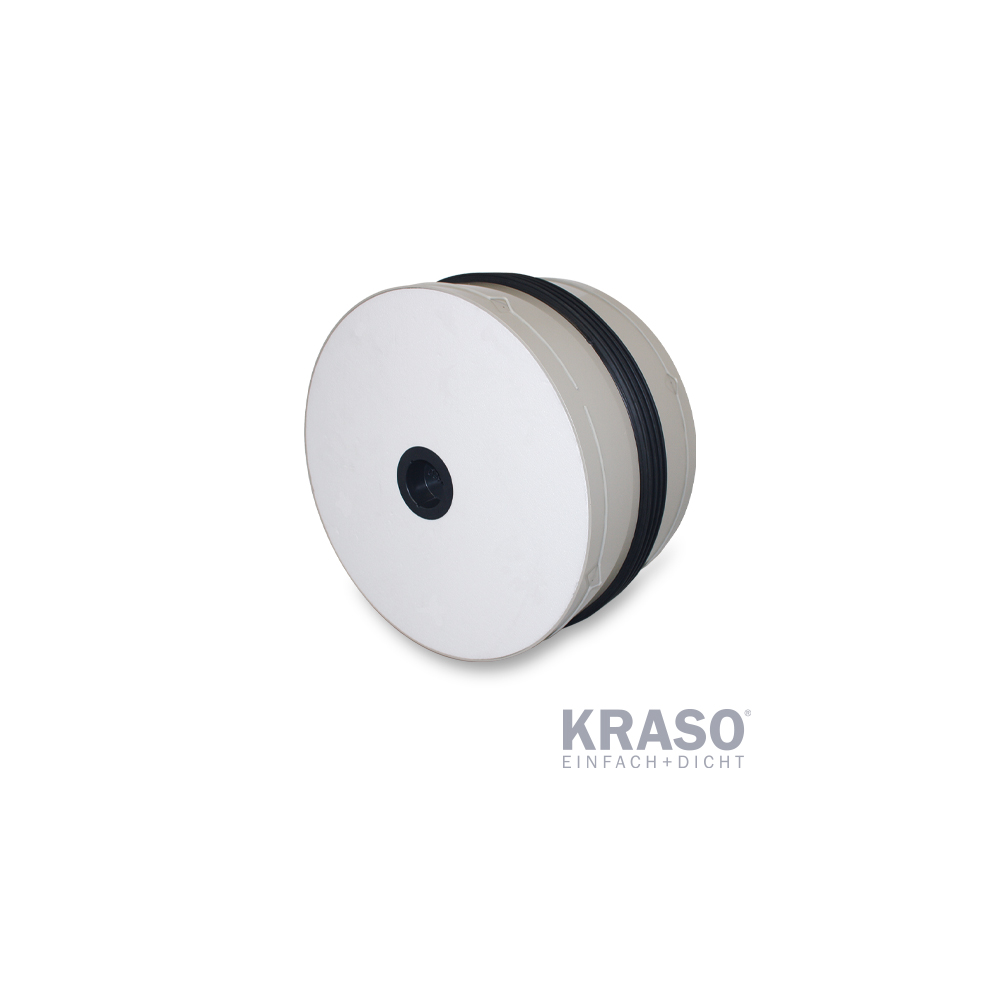

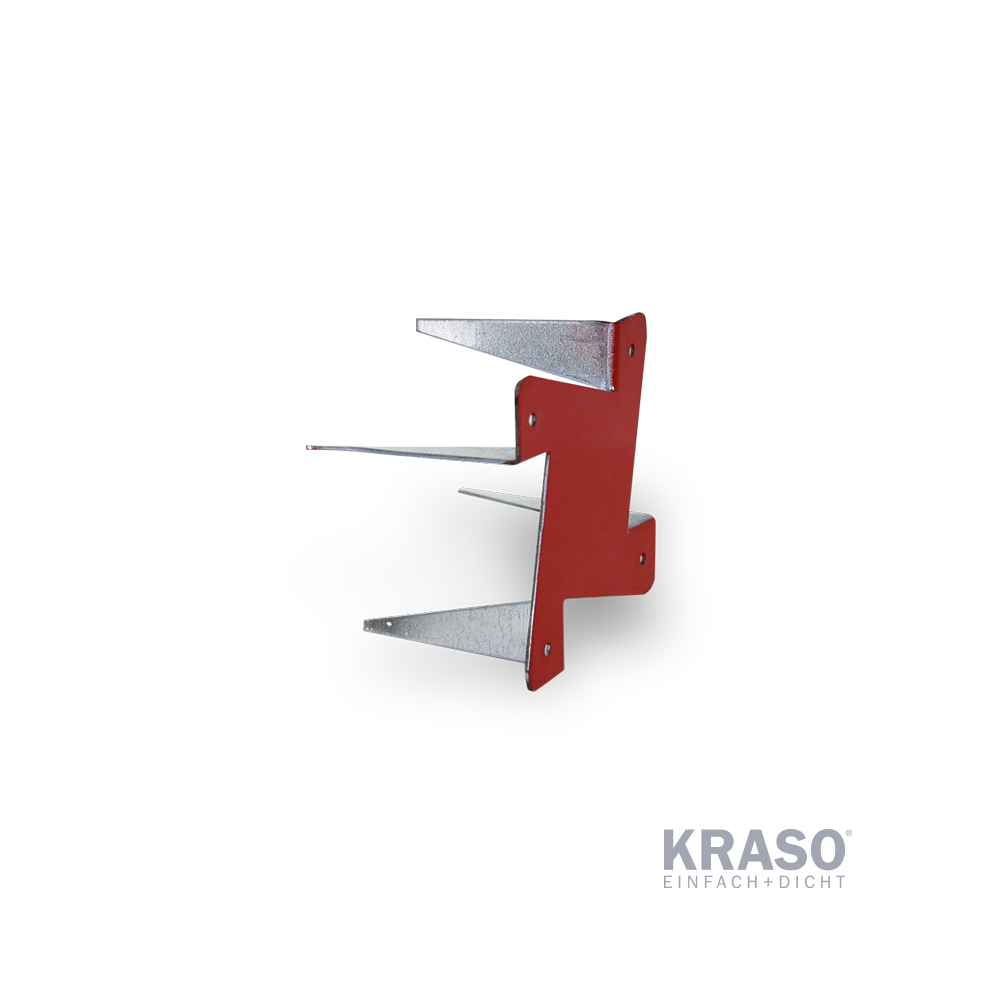

KRASO Casing Type FE, 2 KRASO Covers as an installation aid • KRASO Casing Type FE/MI, fixed claw as an installation aid
Downloads
KRASO Casing Type FE and FE/MI
|

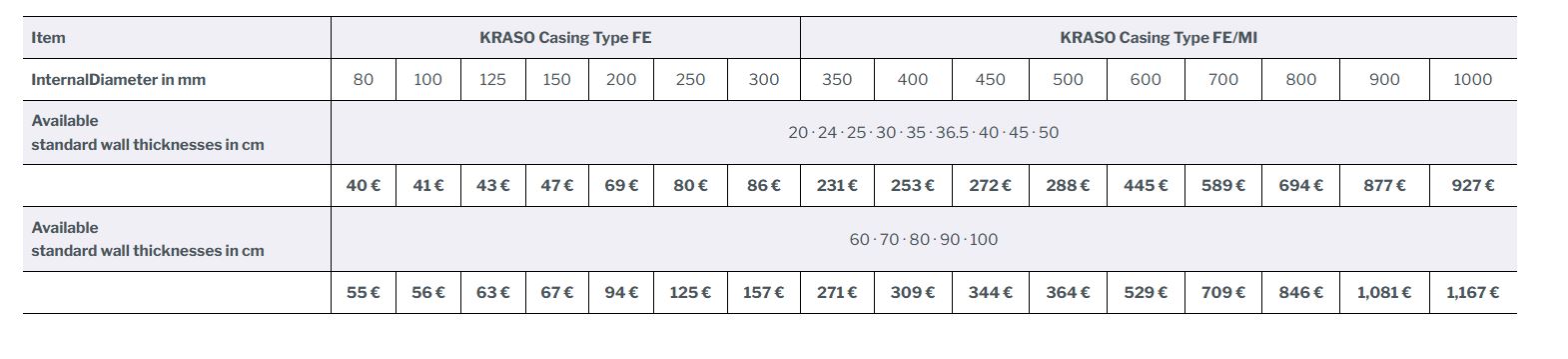

Type / Item |
KRASO Casing Type FE |
KRASO Casing Type FE/MI |
||||||||||||||
|
InternalDiameter in mm |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|
Available |
20 · 24 · 25 · 30 · 35 · 36,5 · 40 · 45 · 50 |
|||||||||||||||
|
40 € |
41 € |
43 € |
47 € |
69 € |
80 € |
86 € |
231 € |
253 € |
272 € |
288 € |
445 € |
589 € |
694 € |
877 € |
927 € |
|
|
Available |
60 · 70 · 80 · 90 · 100 |
|||||||||||||||
|
55 € |
56 € |
63 € |
67 € |
94 € |
125 € |
157 € |
271 € |
309 € |
344 € |
364 € |
529 € |
709 € |
846 € |
1.081 € |
1.167 € |
|
