KRASO Casing E/FE/KF
KRASO Casing E/FE/KF
true diameter stainless steel casing with stainless steel bonding flange, surrounding approx. 12 cm, according DIN 18533, for concreting, made of non-corrosive stainless steel V2A, for installation of pipes or cables using KRASO Sealing Insert (not included in the delivery), with 2 KRASO Covers as an installation aid.
ID = InternalDiameter true diameter casing
| DIN 18533 W1 -E and W2.1 -E
Simple intergation into the sealing of larger areas
ID = InternalDiameter true diameter casing
| DIN 18533 W1 -E and W2.1 -E
Simple intergation into the sealing of larger areas
+ True diameter casing with surrounding bonding flange according DIN 18533
for a simple and fast integration into the sealing of larger areas (“black tank“).
+ As a recess for later installation of pipe or cables using KRASO Sealing Insert!
+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing.
+ DIN 18533 W1 -E and W2.1 -E
+ DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Casing E/FE/KF, with 2 KRASO Covers as an installation aid
KRASO Casing E/FE/KF, with 2 KRASO Covers as an installation aid
Downloads
|

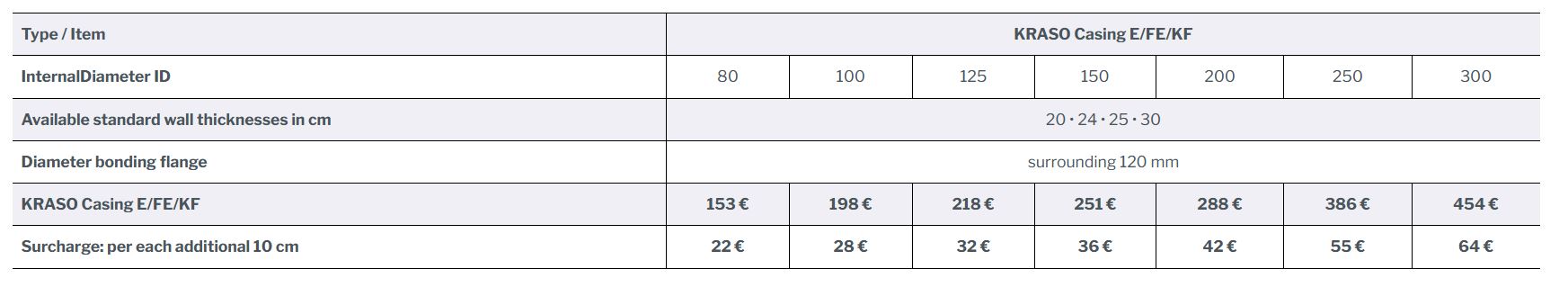

Type / Item |
KRASO Casing E/FE/KF |
||||||
|
InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
available standard wall thicknesses in cm |
20 • 24 • 25 • 30 |
||||||
|
Diameter bonding flange |
surrounding 120 mm |
||||||
