KRASO Casing K/FE/KF - electrogalvanised
KRASO Casing K/FE/KF - electrogalvanised
plastic/true diameter casing/bonding flange
thick-walled true diameter plastic casing with electrogalvanised bonding flange, surrounding approx. 12 cm, according to DIN 18533, for concreting, for the installation of pipes or cables using a sealing insert (not included in the scope of supply), 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing
| DIN 18533 W1 -E and W2.1 -E
| DIN 18533 W1 -E and W2.1 -E
Simple intergation into the sealing of larger areas
+ True diameter casing with surrounding bonding flange according to DIN 18533 for a simple and fast integration into the sealing of larger areas (“black tank“)
+ As a recess for the retrofit installation of pipe or cables using a sealing insert!
+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing
+ DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Casing K/FE/KF - electrogalvanised -, with 2 KRASO Covers as an installation aid
KRASO Casing K/FE/KF - electrogalvanised -, with 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Casing K/FE/KF
|

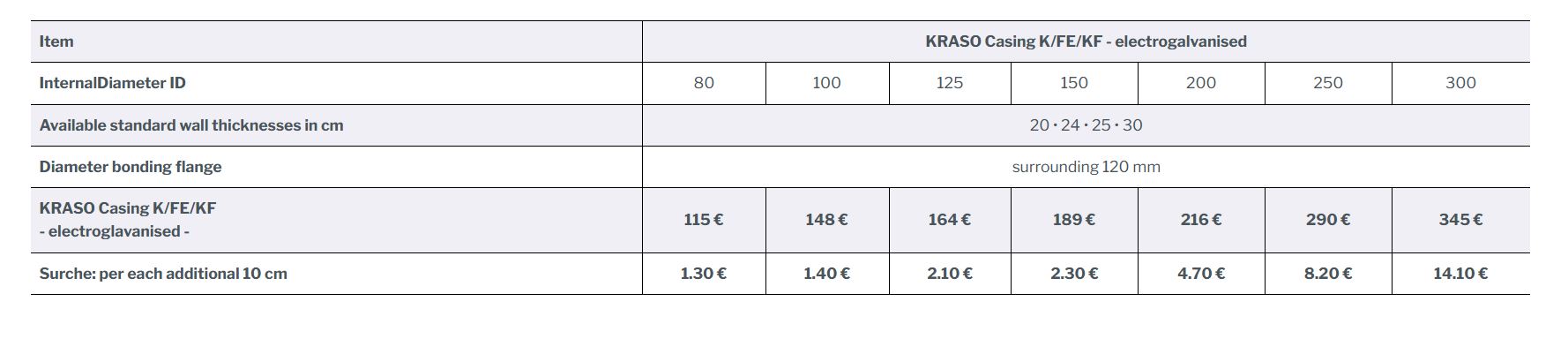

Type / Item |
KRASO Casing K/FE/KF - electrogalvanised |
||||||
|
InternalDiameter ID |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Available standard wall thicknesses in cm |
20 • 24 • 25 • 30 |
||||||
|
Diameter bonding flange |
surrounding 120 mm |
||||||
|
KRASO Casing K/FE/KF |
115 € |
148 € |
164 € |
189 € |
216 € |
290 € |
345 € |
|
Surche: per each additional 10 cm |
1,30 € |
1,40 € |
2,10 € |
2,30 € |
4,70 € |
8,20 € |
14,10 € |
KRASO Casing E/FE/KF
stainless steel true diameter casing with stainless steel bonding flange, surrounding approx. 12 cm, according to DIN 18533, for concreting, made of non-corrosive stainless steel V2A, for the installation of pipes or cables using a sealing insert (not included in the scope of supply), with 2 KRASO Covers as an installation aid. ID = InternalDiameter true diameter casing | DIN 18533 W1 -E and W2.1 -ESimple intergation into the sealing of larger areas+ True diameter casing with surrounding bonding flange according to DIN 18533 for a simple and fast integration into the sealing of larger areas (“black tank“)+ As a recess for retrofit installation of pipes or cables using a sealing insert!+ Available in non-corrosive stainless steel or with thick-walled true diameter plastic casing
+ DIN 18533 W1 -E and W2.1 -E
KRASO Casing Type FE/SF 5
for concreting, with trowel flange on one side, roughened (KRASO Type FE/SF 5 - R) or tissue coated (KRASO Type FE/SF 5 - G), surrounding approx. 5 cm, 2 KRASO Covers as an installation aid, ID = InternalDiameter true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2Secure connection of bitumen thick coating/reactive sealing+ Thick-walled true diameter plastic casing for concreting
+ As a recess for retrofit installation of pipes or cables using a sealing insert+ Aprox. 5 cm surrounding trowel flange on one side for a secure connection of bitumen thick coating and reactive sealing: roughened or tissue coated+ KRASO 4 Seal - MPA-tested up to 10 bar! IAF-tested: radon-tight! Gas- and odour-tight - high-quality in terms of TA-Air! + Certified with the quality seal of the FHRK e. V.+ Also available: KRASO Casing Type FE/SF 5 made of KG 2000 with trowel flange made of PP witzh dovetrail groove for the secure connection of bitumen thick coating and reactive sealings+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1-E and W2.1-E
KRASO Flange Pipe FE
thick-walled true diameter plastic casing for retrofit installation of pipes and cables using a sealing insert (not ioncluded in the scope of supply), with formed KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. ID = InternalDiameter Flange Pipe Type FE | DIN 18533 W1-E and W2.1-E
Simple and effective integration into bituminous sealing
+ For new buildings and rehabilitation - according to DIN 18533 W1-E and W2.1-E+ Simple and effective integration into bituminous sealing ("black tank“): bitumen thick coating and reactive sealing, sheeting, concrete and brick walls+ Water pressure tight up to 1,5 bar – MPA-tested!
+ Made of dimensionally and pressure stable solid wall material with low abrasion! Installation even at lower temperatures+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN 14758 (KG 2000)
