KRASO Builder's Convenience Box (BKP) - floor - 110 - 1-fold (including installation set), single utitility connection for supply lines (heat pump, local/district/geothermal heating, gas, water or electricity) for buildings without basement, incl. KRASO FLS 110 | DafStB waterproof concrete guideline: stress class 1 + 2
The flexible utility connection for heat pumps, local, district or geothermal heating, gas, water or electricity

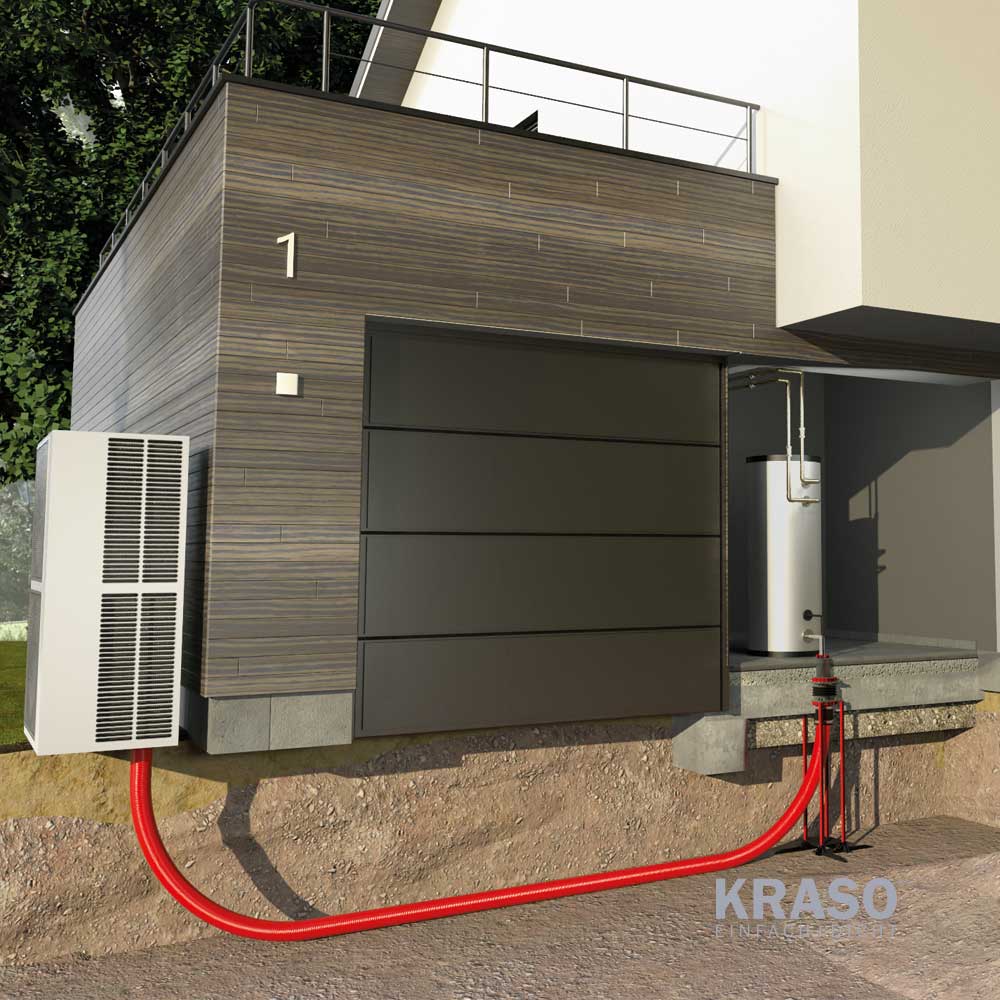

+ The secure utility connection for heat pumps for buildings without basement:
• KRASO Builder´s Convenience Box - floor - 110 for water-to-water heat pumps and brine-water-heat pumps (probe and collector)
• KRASO Builder´s Convenience Box - floor - 110 - SWP for air-to-water heat pump (split)
• KRASO Builder´s Convenience Box - floor - 110 for water-to-water heat pumps and brine-water-heat pumps (probe and collector)
• KRASO Builder´s Convenience Box - floor - 110 - SWP for air-to-water heat pump (split)
+ Flexible: also usable for configuring with local, district or geothermal piping systems, gas, water or electricity up to DN 50
+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!
+ Radon tight!
+ Hose diameter: external 110 mm - internal 100 mm!
+ Stable installation device with foot extension for a save position and an easy installation
+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover
+ Incl. empty pipe insert (25 cm, internal diameter: 100 mm) for a flexible floor construction
+ Incl. Flexible Empty Pipe System KRASO FLS 110 (internal diameter: 100 mm): bending radius 1000 mm. Incl. hose adapter 110 and end plug
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
Info
Scope of supply:
stable installation device with foot extension, wall penetration for installation flush with the base plate, Flexible Empty Pipe System KRASO FLS 110 (internal diameter: 100 mm), radius: 1000 mm, incl. hose adapter 110, installation set including: empty pipe insert ID 100, approx. 25 cm, KRASO Sealing Insert Universal 100 DD with large flange, end plug FLS 110 Universal or KRASO Sealing Insert Type SWP with large flange, end plugs
stable installation device with foot extension, wall penetration for installation flush with the base plate, Flexible Empty Pipe System KRASO FLS 110 (internal diameter: 100 mm), radius: 1000 mm, incl. hose adapter 110, installation set including: empty pipe insert ID 100, approx. 25 cm, KRASO Sealing Insert Universal 100 DD with large flange, end plug FLS 110 Universal or KRASO Sealing Insert Type SWP with large flange, end plugs
Downloads
|

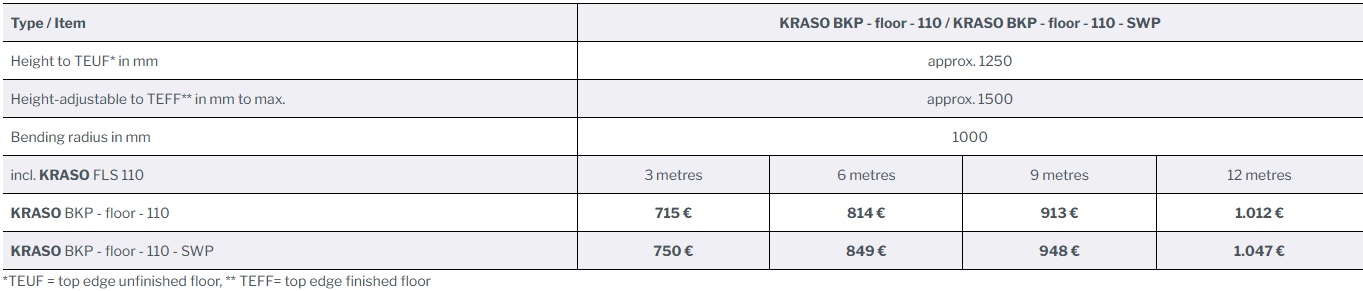

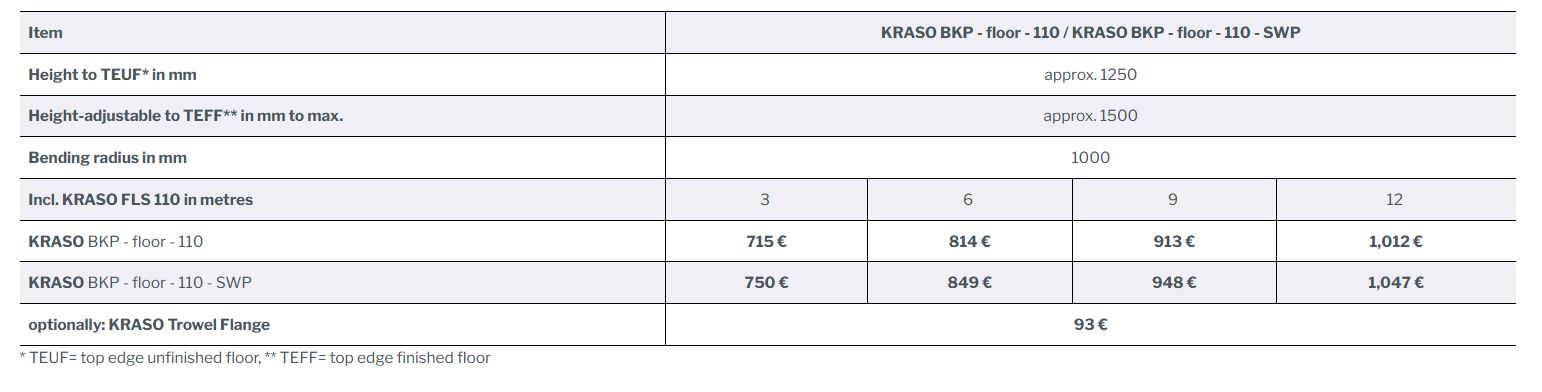

Item |
KRASO BKP - floor - 110 / KRASO BKP - floor - 110 - SWP |
|||
|
Height to TEUF* in mm |
approx. 1250 |
|||
|
Height-adjustable to TEFF** in mm to max. |
approx. 1500 |
|||
|
Bending radius in mm |
1000 |
|||
|
Incl. KRASO FLS 110 in metres |
3 |
6 |
9 |
12 |
|
KRASO BKP - floor - 110 |
715 € |
814 € |
913 € |
1,012 € |
|
KRASO BKP - floor - 110 - SWP |
750 € |
849 € |
948 € |
1,047 € |
|
optionally: KRASO Trowel Flange |
93 € |
|||
KRASO Builder's Convenience Box - floor - NFE - Basis
for the connection to the local, district and geothermal energy network. Optionally available: KRASO Foil Flange for the integration into the floor sealing | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -ESimple, comfortable, tight to the heat pump or to the local, district and geothermal energy network+ The comfortable solution for the connection to air-water-heat pumps (monobloc) or to the local, district and geothermal energy network - for flexible and insulated pipelines with integrated supply and reflux+ Fully assembled stable installation device: positioning – arrangement – concreting – connection – ready!+ For buildings without basement: single-/multi-family houses, public and commercial buildings+ On request also available with KRASO Foil Flange – for the integration into the floor sealing+ KRASO Builder's Convenience Box - floor - NFE - Basis including: • KRASO Builder's Convenience Box - floor - NFE - Basis DN 200, DN 250 or DN 315 with water pressure tight surrounding KRASO 4 Seal • KRASO Empty Pipe Insert: for the internal floor construction • Building period protection cover+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder‘s Convenience Box - floor - SET
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP
- floor - SET - 5-fold, 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe multi utility connection with integrated installation kit+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!+ DVGW-certified according to VP 601:
overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air+ Radon-tight! Resistant to methane gas!+ KRASO 4 Seal: exterior sealing of concrete: 10 bar! Overall system is gas- and water pressure tight up to 1 bar!+ Simple installation due to stable installation device and visual check of the snap-on-socket - helps to avoid installation errors+ Hose diameter: external 90 mm - internal 80 mm+ With integrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers.+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period installation cover+ Easy integration of vapour barrier foils due to the roughened trowel flange!
+
Height-adjustable base plate and floor screed
+ KRASO BKP Gas Installation Kits optionally available+ Split end plugs for easy installation!+ Including extension set!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder's Convenience Box - floor - 150
single utility connection for supply lines, for buildings without basement, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe safe utility connection for larger media lines+ The safe utility connection for larger media lines for buildings without basement, e.g. electricity or water for residential buildings or commercial buildings+ Usable with KRASO Sealing Insert with large flange as utility connection entry or outlet: e.g. for charging stations in residential buildings (flat ownership modernisation law - WEMoG)+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!+ Radon-tight+ Stable installation device incl. rigid empty pipe with bending radius from 1000 mm+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover+ Including empty pipe insert (25 cm, internal diameter: 150 mm) for a flexible floor construction+ Internal installation of media lines via KRASO Sealing Inserts: various designs with stepless onion ring technology + External optional connection possibilities: connection to KRASO FLS, cable protective hoses DN 110 or DN 160 or KG empty pipe systems with DN 160+ Optionally available: KRASO Trowel Flange+ DafStB waterproof concrete guideline: stress class 1 + 2
Häufig gestellte Fragen (FAQ)
Was ist das KRASO Bauherren-Komfortpaket - Boden - 110?
Das KRASO Bauherren-Komfortpaket - Boden - 110 ist eine Einsparten-Hauseinführung für die Bodenplatte von nicht unterkellerten Gebäuden. Es dient zur sicheren und druckwasserdichten Durchführung von Versorgungsleitungen wie Wärmepumpe, Wasser, Strom, Gas oder Nah- und Fernwärme.
Für welche Gebäude ist das Bauherren-Komfortpaket geeignet?
Das System ist speziell für nicht unterkellerte Gebäude konzipiert. Es wird flächenbündig in die Bodenplatte eingebaut und eignet sich sowohl für Wohn- als auch für Zweckbauten.
Für welche Wärmepumpenarten kann das System verwendet werden?
Das KRASO Bauherren-Komfortpaket - Boden - 110 eignet sich für
- Sole-Wasser-Wärmepumpen (Erdsonde oder Erdkollektor)
- Wasser-Wasser-Wärmepumpen
- Luft-Wasser-Wärmepumpen (Split) in der Ausführung BKP - Boden - 110 - SWP.
Können auch andere Medien als Wärmepumpenleitungen durchgeführt werden?
Ja. Das System ist flexibel einsetzbar und kann alternativ oder zusätzlich für Nah- und Fernwärme, Erdwärme, Gas, Wasser oder Stromleitungen bis DN 50 genutzt werden.
Ist die Hauseinführung druckwasserdicht und radondicht?
Ja. Die umlaufende KRASO Vierstegdichtung dichtet die Durchführung bis 10 bar gegen Druckwasser ab. Zusätzlich ist das System radondicht.
Welche Normen und Richtlinien erfüllt das Bauherren-Komfortpaket?
Das Produkt entspricht den Anforderungen der
- WU-Richtlinie, Beanspruchungsklasse 1 und 2
- DIN 18533, Wassereinwirkungsklasse W1.1 -E
Welche Vorteile bietet der flächenbündige Einbau?
Der flächenbündige Einbau in der Bodenplatte
- vermeidet Stolperfallen auf der Baustelle
- schützt die Hauseinführung beim Aufmauern der Wände
- ermöglicht einen sauberen und normgerechten Fußbodenaufbau
Was ist im Lieferumfang des KRASO Bauherren-Komfortpakets enthalten?
Im Lieferumfang sind unter anderem enthalten:
- Stabile Aufstellvorrichtung mit Standfußverlängerung
- Dichtpackung für bodenplattenbündigen Einbau
- Flexibles Leerrohrsystem KRASO FLS 110 (ID 100 mm, Biegeradius 1000 mm)
- Leerrohraufsatz (ca. 25 cm)
- KRASO Dichteinsatz (Universal oder Typ SWP) mit Großflansch
- Schlauchadapter und Abschlussstopfen
- Installationsset
Wie flexibel ist das Leerrohrsystem KRASO FLS 110?
Das mitgelieferte KRASO FLS 110 ist ein flexibles Leerrohr mit einem Innendurchmesser von 100 mm und einem Biegeradius von 1000 mm. Dadurch lassen sich Leitungen einfach und spannungsfrei zur Technik im Gebäude führen.
Welche Einbauhöhen sind mit dem Bauherren-Komfortpaket möglich?
Die Höhe beträgt ca. 1250 mm bis Oberkante Rohfußboden (OKRF). Die Höhe kann flexibel bis ca. 1500 mm bis Oberkante Fertigfußboden (OKFF) angepasst werden und eignet sich damit für unterschiedliche Fußbodenaufbauten.
