KRASOflex Joint Plate ZVB - Desired Crack Elements FTW (precast walls) - corner joint
KRASOflex Joint Plate ZVB - Desired Crack Elements FTW (precast walls) - corner joint
with mineral coating on both sides, for the controlled production and simultaneous sealing of desired crack elements in precast walls, against pressing and non-pressing water as well as soil moisture | DafStB waterproof concrete guideline: stress class 1 + 2
Cement-composite joint plate for precast walls and in-situ concrete walls
+ For the controlled production and simultaneous sealing of desired crack elements
+ With general building authority test certificate (abP) P - 14484/24-742 (tested up to 5 bar; approved up to 2 bar according to abP)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASOflex Joint Plate ZVB - Desired Crack Element FTW - corner joint, knock-in anchors, 2 pieces KRASOflex ZVB-Joint Clips
Further dimensions and designs available on request!
Downloads
KRASOflex Joint Plate ZVB - Desired Crack Elements FTW
|

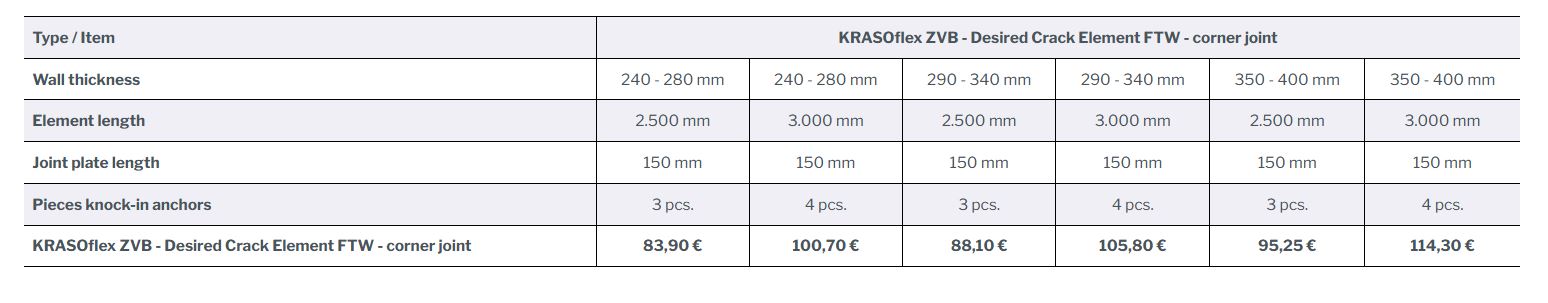

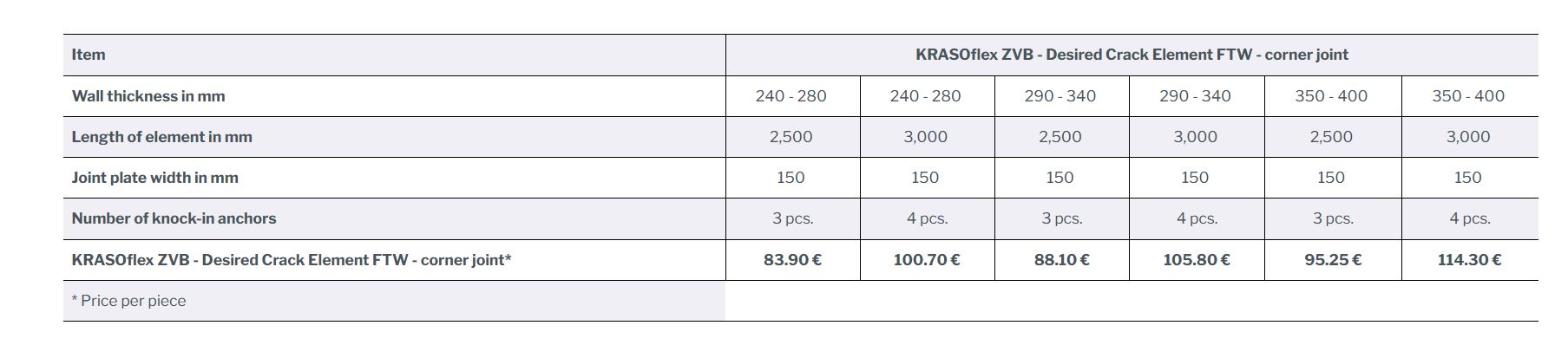

Item |
KRASOflex ZVB - Desired Crack Element FTW - corner joint |
|||||
|
Wall thickness in mm |
240 - 280 |
240 - 280 |
290 - 340 |
290 - 340 |
350 - 400 |
350 - 400 |
|
Length of element in mm |
2,500 |
3,000 |
2,500 |
3,000 |
2,500 |
3,000 |
|
Joint plate width in mm |
150 |
150 |
150 |
150 |
150 |
150 |
|
Number of knock-in anchors |
3 pcs. |
4 pcs. |
3 pcs. |
4 pcs. |
3 pcs. |
4 pcs. |
|
KRASOflex ZVB - Desired Crack Element FTW - corner joint* |
83.90 € |
100.70 € |
88.10 € |
105.80 € |
95.25 € |
114.30 € |
|
* Price per piece | ||||||
KRASOflex Joint Plate ZVB - Desired Crack Elements FTW (precast walls) - butt joint
with mineral coating on both sides, for the controlled production and simultaneous sealing of desired crack elements in precast walls (FTW), against pressing water and non pressing water as well as soil moisture | DafStB waterproof concrete guideline: stress class 1 + 2
Cement-composite joint plate for precast walls and in-situ concrete walls+
For the controlled production and simultaneous sealing of desired crack elements + With general building authority test certificate (abP) P - 14484/24-742 (tested up to 5 bar; approved for up to 2 bar according to abP)+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASOflex Joint Plate ZVB - Desired Crack Elements OBW
with mineral coating on both sides, for the controlled production and simultaneous sealing of desired crack elements in in-situ concrete walls (OBW), against pressing and non pressing water as well as soil moisture | DafStB waterproof concrete guideline: stress class 1 + 2Cement-composite joint plate for precast walls and in-situ concrete walls+ For the controlled production and simultaneous sealing of desired crack elements+ With general building authority test certificate (abP) P - 14484/24-742 (tested up to 5 bar, approved for up to 2 bar according to abP)+ DafStB waterproof concrete guideline: stress class 1 + 2
