KRASOflex Formwork Elements




















KRASOflex Formwork Elements
sealing and formwork in the base, wall and roof area | DafStB waterproof concrete guideline: stress class 1 + 2

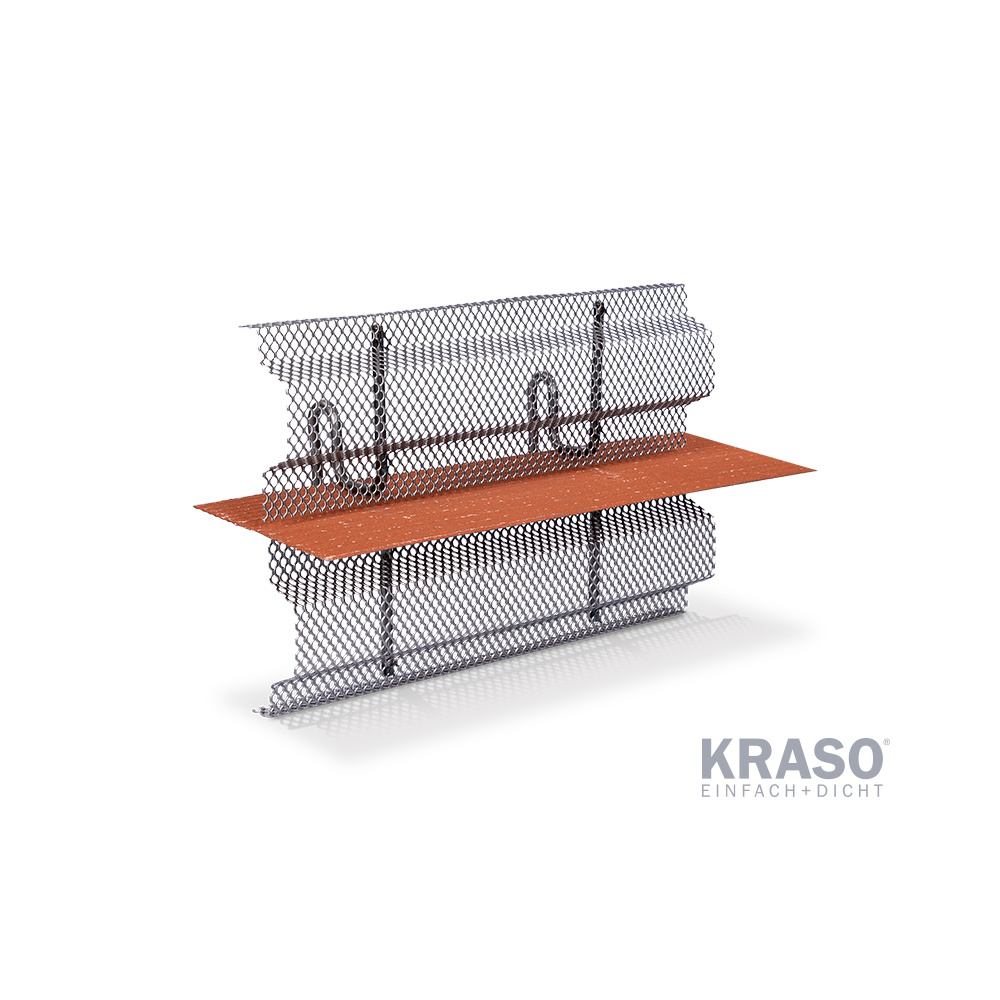

KRASOflex Formwork Element ABS-R (rough)
Simultaneously shutter horizontal and vertical construction joints and make them watertight by installing the KRASO Joint Plate ZVB. Joint type: rough.
Available in all standard sizes and in special designs! Prices on request!

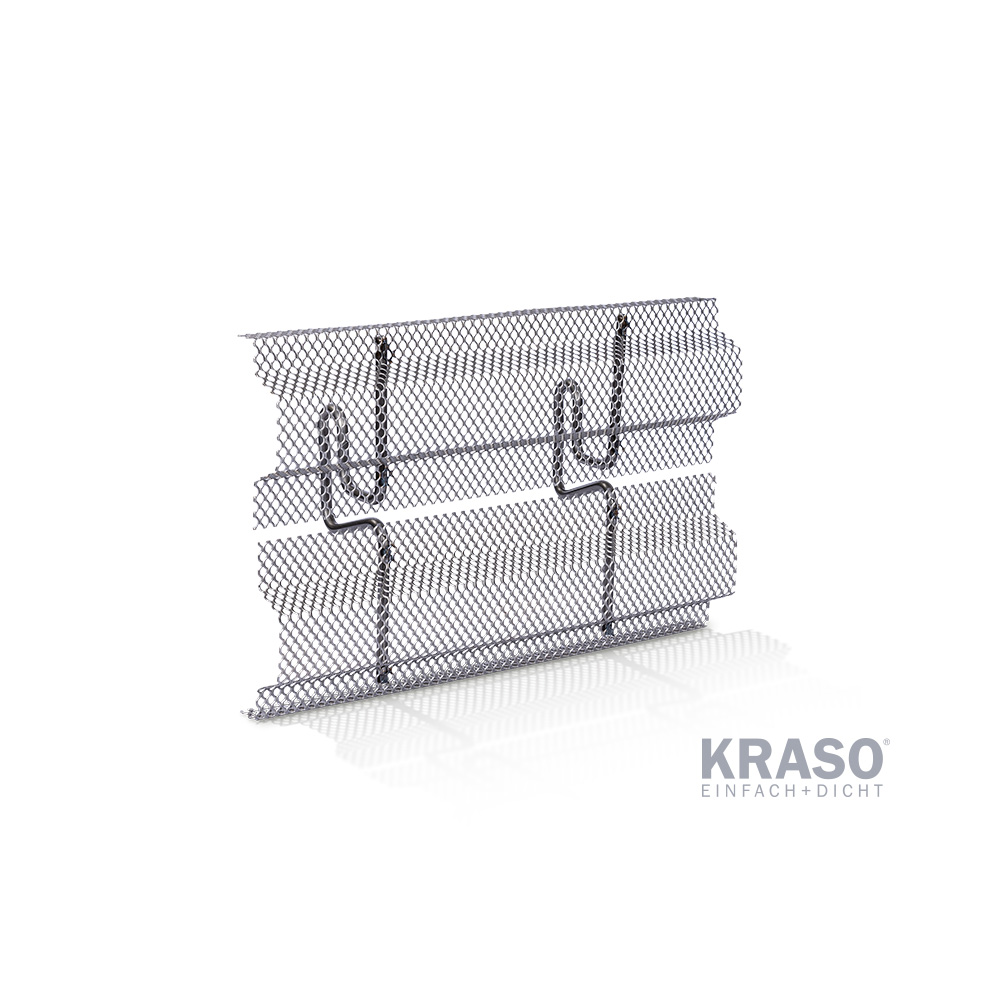

KRASOflex Formwork Element ABS-R-V (rough, reinforced)
Simultaneously shutter horizontal and vertical construction joints and make them watertight by installing the KRASOflex Joint Plate ZVB. Joint type: rough, design: reinforced.
Available in all standard sizes and in special designs! Prices on request!
KRASOflex Formwork Element ABS-V (interlocked)
Simultaneously shutter horizontal and vertical construction joints and make them watertight by installing the KRASOflex Joint Plate ZVB. Joint type: interlocked according to EC2
Available in all standard sizes and in special designs! Prices on request!

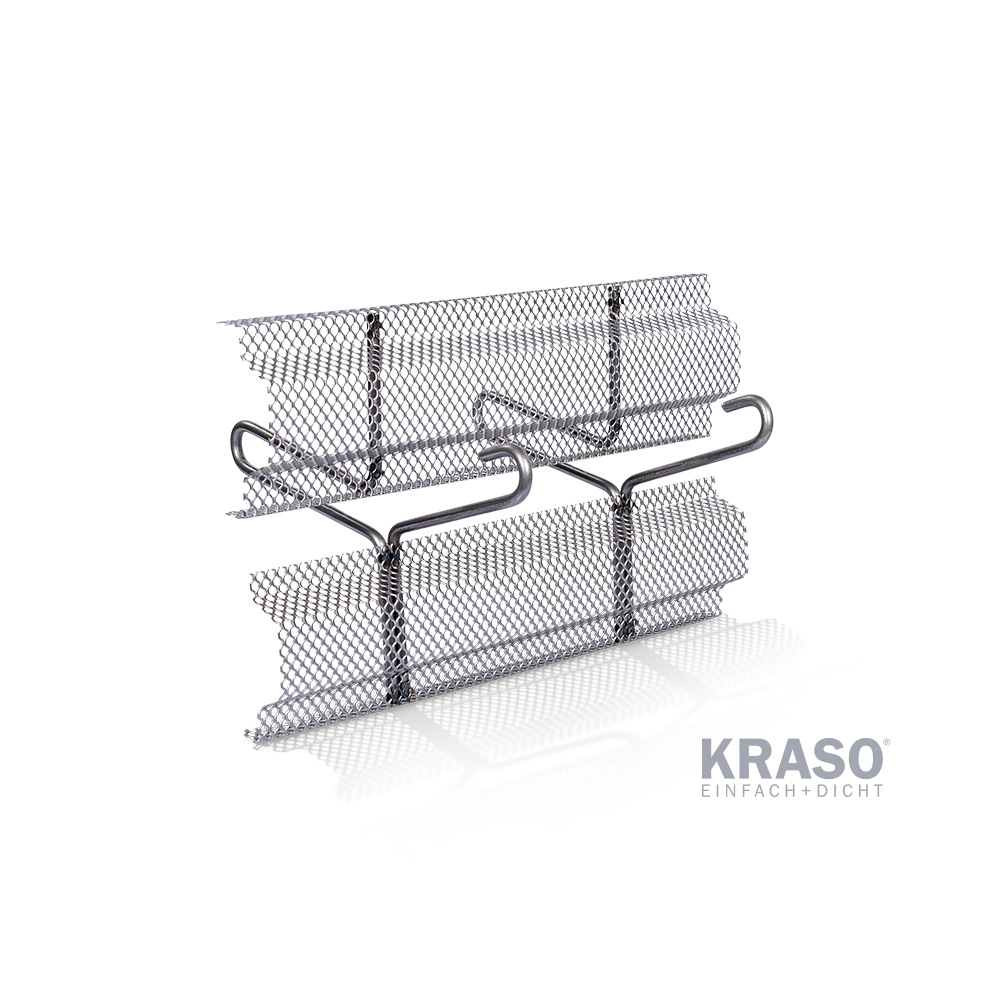

KRASOflex Formwork Element ABS-V (interlocked, reinforced)
Simultaneously shutter horizontal and vertical construction joints and make them watertight by installing the KRASOflex Joint Plate ZVB. Joint type: interlocked according to EC2, design reinforced.
Available in all standard sizes and in special designs! Prices on request!
Info
Available in all standard sizes and in special designs! Prices on request!
KRASOflex upstand elements and moulds for the formwork on request!
KRASOflex Swelling Rubber
for the internal sealing of construction joints in concrete elements | DafStB waterproof concrete guideline stress class 1 + 2Dimensionally stable joint sealing profile+ For joint sealing in segment construction (precast concrete elements)+ Joint sealing profile "dimensionally stable", swelling when in contact with water!+
For joints in segment construction, element construction and pipe jacking!
KRASOflex Joint Plate ZVB
for the sealing of construction joints and controlled crack joints, incl. KRASOflex ZVB - Joint Clips for securing overlapping joints | DafStB waterproof concrete guideline: stress class 1 + 2Cement-composite joint plate with mineral special coating+ For the sealing of construction joints and controlled crack joints+ Active-mineral special coating: active and composite sealing combined in one joint plate! + System solutions for in-situ concrete and precast walls+ No sticking, no protection foil and therefore less waste on the construction-site!+ Installation independent of weather and season!+ Integration into the concrete: 3 cm+ With general building authority test certificate (abP, water pressure up to 2 bar)+ MPA-tested up to 5 bar+ DafStB waterproof concrete guideline: stress class 1 + 2
Legend

Regarding our wall and pipe penetrations the KRASO 4 Seal reliably keeps pressurised water out: The material testing institute certifies a water pressure tightness up to 10 bar! Due to its construction the KRASO 4 Seal is securely fixed to the concrete. It is joined to the solid wall pipe monolithically (force-fit) in a special process. This completely prevents any creep or slippage.

Whether KRASO Pump Sumps made of concrete, Flange Plates, Tie Points or Sealing Inserts: they all offer reliable protection against pressing water due to their construction, material and processing. All these products have been tested by independent material testing institutes regarding their water pressure tightness and are proof against pressurised water up to 10 bar!

Not only against pressing water — KRASO Sealing Inserts are additionally gas- and odour-tight and therefore high-quality in terms of TA-Air! Due to a successful proof in a material testing institute our sealing inserts include the administrative regulation of the Federal Immission Control Act: “Technical Instructions on Air Quality Control TA-Air”.

Products with Torque Control Nut KRASO DKM can be installed without having to use a torque wrench. The correct torque moment is integrated in the KRASO DKM. The installation has never been so easy and installation errors can be avoided.

Radon (Rn) is a radio-active noble gas which develops in rock earth. Via ground air this colour- and odourless gas can enter basement rooms through leakages. Radon is the second most common cause for lung cancer. Pipe penetrations with KRASO 4 Seal and KRASO Sealing Inserts are gas tight and therefore reliably protect your building against the intrusion of radon.

The DVGW — The German Technical and Scientific Association for Gas and Water - certified that KRASO Sealing Inserts are gas-tight according to DIN EN13611 (sector 7.2). Our sealing inserts therefore meet the criteria for the German Association for Gas and Water.

The KRASO Builder's Convenience Box has the application from DVGW - German Technical and Scientific Association for Gas and Water - according DVGW VP 601 as house connection for gas and water and therefore fulfils all directives for a gas- and water pressure tight installation.

The so-called “fire-resistance grading” gives information about the DIN normed fire resistance of building materials. The grading shows the letter ”F” along with the time span of the functional integrity in minutes. With 180 minutes of functional integrity the fire-resistance grading F 180 therefore stands for a highly- fire-resistant material.

Test certificates from recognised material testing institutes verify the usability of KRASO Joint Tapes, as e.g. KRASO Duo-Fix 150 “plus”, according the guidelines of the German Institute for Structural Engineering. The test certificate proofs the usability according state building regulations.

KRASO Products with a "FHRK Quality" – icon meet the testing specifications of FHRK e.V. - the trade association for house connections for pipes and cables. The tests cover all possible stresses on sealing inserts, house connection systems, pipe penetrations and casings: for example, gas- and water pressure tightness, abrasion resistance when backfilling formwork or resistance when compacting the building pit.

KRASO Products with the icon "FHRK Radondicht" have been tested according FHRK or/and DVGW testing specifications regarding their gas- and water pressure tightness and have also been successfully tested for diffusion resistance by the IAF. Products with this seal are radon-tight!
