KRASO Wall Penetration Type Universal

Type Universal

Type Universal B

Type Universal D

Diameter DN

110

125

160

KRASO Wall Penetration Type Universal

in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal. The markings are for a simple shortening on site to standard wall thicknesses | DafStB waterproof concrete guidline: Stress class 1 + 2

The proven wall penetration made of solid wall material

+ With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!

+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas!

+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.

+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).

+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.

+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.

+ Including two KRASO Covers as installation aid.

+ KRASO Product Innovation: Type B as thermally insulated wall penetration!

+ DafStB waterproof concrete guidline: Stress class 1 + 2

Info

Scope of supply:

KRASO Type Universal B with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid • KRASO Type Universal D with integrated push-through sleeve, 2 KRASO Covers as an installation aid

Downloads

Produktinformation

Produktinfo_KRASO_Wanddurchfuehrung_Typ_Universal (711.91 KiB)

Datenblatt

Datenblatt_KRASO_Typ_Universal_B_zv (200.13 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)

DWG-Dateien

DWG_KRASO_Typ_Universal_B_DN_110 (348.35 KiB)

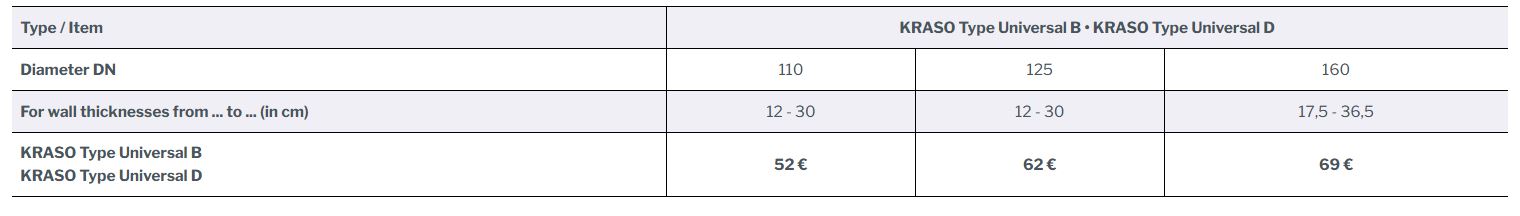

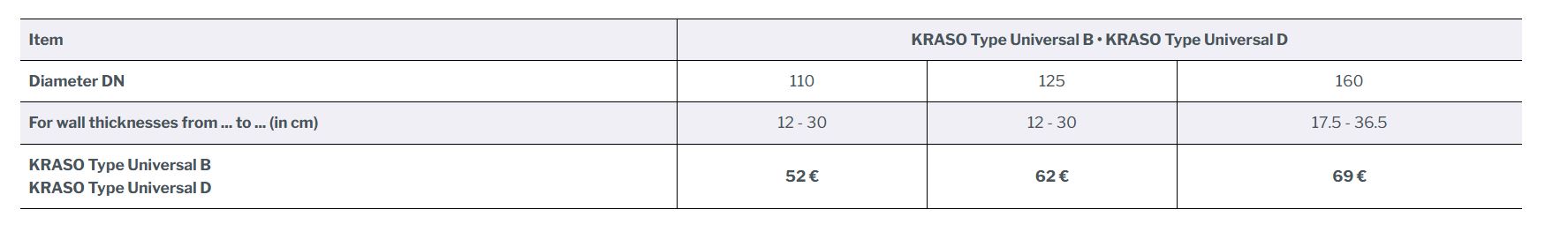

Type / Item	KRASO Type Universal B • KRASO Type Universal D
Diameter DN	110	125	160
for wall thicknesses from ... to ... (in cm)	12 - 30	12 - 30	17,5 - 36,5
