KRASO Wall Penetration Type B/SF 5
KRASO Wall Penetration Type B/SF 5
for installation in waterproof concrete walls for connection to KG/ HT pipes on both sides, with trowel flange on one side, roughened (KRASO Type B/SF 5 - R) or tissue coated (KRASO Type B/SF 5 - G) for the secure connection of bitumen thick coating (e.g. KMB) and reactive sealings, surrounding approx. 5 cm, formed plug-in sleeve on both sides and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Secure connection of bitumen and reactive sealings
+ Dimensionally stable and pressure-resistant solid wall material: low abrasion, installation even at lower temperatures
+ Pipe and pipe material in accordance with DIN EN 1401 (KG)
+ KRASO 4 Seal – MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Surrounding approx. 5 cm trowel flange on one side, for secure connection of bitumen thick coating such as KMB or reactive sealings: roughened or tissue coated
+ Also available: trowel flange made of PP with dovetail groove as KRASO Type B/SF 5 - KG 2000 for the secure gripping of bitumen thick coating
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Type B/SF 5 - R with trowel flange SF/5 on one side, roughened, 2 KRASO Covers as an installation aid • KRASO Type B/SF 5 - G with trowel flange SF/5 on one side, tissue coated, 2 KRASO Covers as an installation aid
KRASO Type B/SF 5 - R with trowel flange SF/5 on one side, roughened, 2 KRASO Covers as an installation aid • KRASO Type B/SF 5 - G with trowel flange SF/5 on one side, tissue coated, 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Wall Penetration Type B/SF5
|

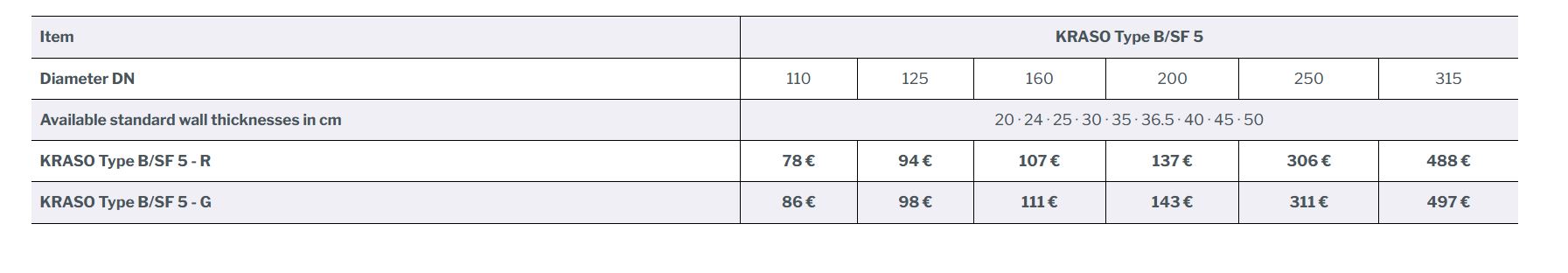

Item |
KRASO Type B/SF 5 |
|||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
315 |
|
Available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36.5 · 40 · 45 · 50 |
|||||
|
KRASO Type B/SF 5 - R |
78 € |
94 € |
107 € |
137 € |
306 € |
488 € |
|
KRASO Type B/SF 5 - G |
86 € |
98 € |
111 € |
143 € |
311 € |
497 € |
KRASO Wall Penetration Type FBV-FR
wall penetration for a compliant integration of fresh concrete composite films | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction using FBV system
+ Wall Penetration for a compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at our factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thanks to the KRASO Wall Penetration Type FR, waste water always maintains the correct flow direction! Unnecessary edges are prevented. Blocked pipes: impossible!
+ Due to the flexible yet watertight connection to the pipe system, stresses occurring caused by the setting of the KG pipes are minimised!
+ The basement remains dry and is protected against radon thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal!+ Made of solid wall material! Also available in KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStb waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FR for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ For KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting + Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at lower temperatures+ In accordance with DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FR
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid material: low abrasion, easy installation at low temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available for KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made for KG 2000 + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ For KG 2000: polypropylene (PP-M), mineral- filled, smooth walls, long-lasting
+ In accordance with DIN EN 14758 (KG 2000)+ Formed plug-in sleeve on both sides for connection to KG 2000 pipes+ Including two KRASO Covers as installation aid!+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as an installation aid+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type Universal
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for KG/HT pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal, with markings for a simple shortening on-site to standard wall thicknesses
| DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon tight! + Dimensionally and
pressure resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG)+ KRASO Type Universal B: with formed plug-in sleeve on both sides for the connection of KG/HT pipes on both sides+ KRASO Type Universal D: with integrated push-through sleeve+ Markings for a simple shortening on-site to standard wall thicknesses
+ Including two KRASO Covers as installation aid
+ DafStB waterproof concrete guideline: stress class 1 + 2
Häufig gestellte Fragen (FAQ)
Wofür wird die KRASO Wanddurchführung Typ B/SF 5 eingesetzt?
Die KRASO Wanddurchführung Typ B/SF 5 wird für den Einbau in WU-Betonwände verwendet. Sie ermöglicht das beidseitige Anschließen von KG/HT - Rohren und sorgt für eine dauerhaft dichte Rohrdurchführung durch die Betonwand.
Für welche Abdichtungsarten ist der Spachtelflansch geeignet?
Der einseitige, umlaufende Spachtelflansch (ca. 5 cm) ist speziell für die sichere Anbindung von Bitumen- und Reaktivabdichtungen, wie z. B. kunststoffmodifizierte Bitumendickbeschichtungen (KMB), ausgelegt.
Was ist der Unterschied zwischen Typ B/SF 5 – R und Typ B/SF 5 – G?
- Typ B/SF 5 – R: Spachtelflansch aufgeraut
- Typ B/SF 5 – G: Spachtelflansch mit Gewebe beschichtet
Beide Varianten gewährleisten eine zuverlässige Haftung der Abdichtung, abhängig vom verwendeten Abdichtungssystem.
Ist die KRASO Wanddurchführung Typ B/SF 5 druckwasserdicht?
Ja. Die integrierte KRASO Vierstegdichtung ist MPA-geprüft bis 10 bar und eignet sich damit auch für hohe Wasserdruckbeanspruchungen.
Ist die Wanddurchführung radondicht?
Ja. Die KRASO Wanddurchführung Typ B/SF 5 ist IAF-geprüft und radondicht, wodurch sie sich ideal für den Einsatz in radonbelasteten Gebieten eignet.
Welche Normen und Richtlinien werden erfüllt?
Die Wanddurchführung erfüllt unter anderem:
- WU-Richtlinie – Beanspruchungsklasse 1 + 2
- DIN 18533 – Wassereinwirkungsklassen W1 -E und W2.1 -E
- Rohrmaterial gemäß DIN EN 1401 (KG-Rohre).
Für welche Rohrdurchmesser ist die KRASO Wanddurchführung Typ B/SF 5 erhältlich?
Die KRASO Wanddurchführung ist in den Durchmessern DN 110, 125, 160, 200, 250 und 315 verfügbar.
Welche Wandstärken sind standardmäßig möglich?
Standardmäßig ist die KRASO Wanddurchführung Typ B/SF 5 für Wandstärken von 20 bis 50 cm erhältlich (u. a. 20, 24, 25, 30, 35, 36,5, 40, 45 und 50 cm).
Abweichende Wandstärken sind auf Anfrage realisierbar.
Was gehört zum Lieferumfang der KRASO Wanddurchführung Typ B/SF 5?
Zum Lieferumfang gehören:
- KRASO Wanddurchführung Typ B/SF 5 – R oder G
- Einseitiger Spachtelflansch SF/5
- 2 KRASO Deckel als Einbauhilfe.
Kann die Wanddurchführung auch bei niedrigen Temperaturen eingebaut werden?
Ja. Dank des form- und druckstabilen Vollwandmaterials ist der Einbau auch bei niedrigen Temperaturen möglich, bei gleichzeitig geringem Abrieb.
