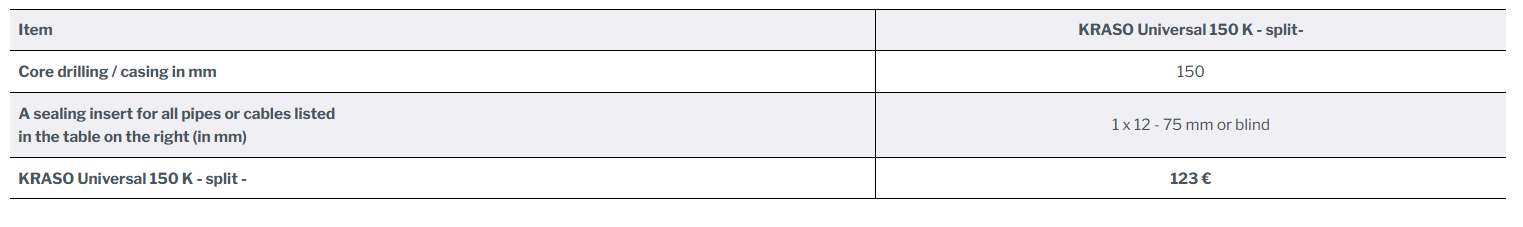

KRASO Sealing Insert Universal 150 K - split -

for installation of pipes or cables, Torque Control Nut KRASO DKM*KRASO Type SD 30 / KRASO Type SD 30 - T, split / KRASO Type SD 30 - GF, large flangeKRASO Type SD 60 / KRASO Type SD 60 - T, split / KRASO Type SD 60 - GF, large flange | DafStB waterproof concrete guideline: stress class 1 + 2 The solution for special situations+ For core drillings and casings+ Individual and custom-made solution: with large flange or split!+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 30 or 60 mm seal made of a specially developed rubber mixture, welded-on studs instead of through bolts + Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ MPA-tested: protects reliably against pressing water up to 2,5 / 5 bar!+ Gas and odour tight - High-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! + Certified with the quality seal of the FHRK e. V.+ With arrangement template: see the arrangement at a glance!+ Generally available within 24 hours!+ Available at an additional charge: stainless steel V4A / KTW - recommendation / NBR - oil- and petrol resistant / temperature resistant up to 220°C+ DafStB waterproof concrete guideline: stress class 1 + 2 Configure Sealing Insert

for installation of pipes or cables, double sealing against pressing water up to 3 bar. Can also be used as blind plug for feed-through of pipes or cables (except KRASO Universal 250 DD and Universal 250 DD/T) | DafStB waterproof concrete guideline: stress class 1 + 2Simple, tight, universal use + For core drillings or casings + Onion ring technology: universal use for various external diameters of media pipes or cables! + KRASO Sealing Insert quality: non-corrosive stainless steel V2A, high quality 40 mm rubber seal, welded-on studs instead of through bolts + Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required! + MPA-tested: protects reliably against pressing water up to 3 bar! + Gas- and odour-tight – high-quality in terms of TA-Air! + Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! + Certified with the quality seal of the FHRK e. V.  + DafStB waterproof concrete guideline: stress class 1 + 2

for installation of pipes, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type ED, KRASO Type ED/T), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type DD, KRASO Typ DD/T), quadruple sealing, against pressing water up to 8 bar, 80 mm seal (KRASO Type VD) | DafStB waterproof concrete guideline: Stress class 1 + 2Simply just better+ For core drillings or casings+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution + Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required! + Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe + MPA-tested: protects reliably against pressurised water up to 10 bar! + Gas- and odour-tight – high-quality in terms of TA-Air! + Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ Certified with the quality seal of the FHRK e. V. + KRASO Sealing Insert Configurator – simple and fast: configure the matching sealing insert online or via our app!
