KRASO Sealing Insert Type SD
The solution for special situations
Info
All sizes and diameters available on request!
Downloads
|
Core drilling/casing in mm |
50 |
60 |
70 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
(from - to) |
(49 - 52) |
(59 - 62) |
(69 - 72) |
(79 - 83) |
(99 - 103) |
(124 - 128) |
(149 - 153) |
(198 - 203) |
(248 - 253) |
(298 - 303) |
(348 - 353) |
(398 - 403) |
(448 - 453) |
(497 - 503) |
|
max. external diameter pipe or cable |
||||||||||||||
|
from |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
to |
25 |
35 |
45 |
55 |
75 |
100 |
125 |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
|
KRASO Type SD 30 |
||||||||||||||
|
KRASO Type SD 30 |
100 € |
100 € |
100 € |
108 € |
108 € |
137 € |
156 € |
202 € |
272 € |
348 € |
417 € |
478 € |
563 € |
627 € |
|

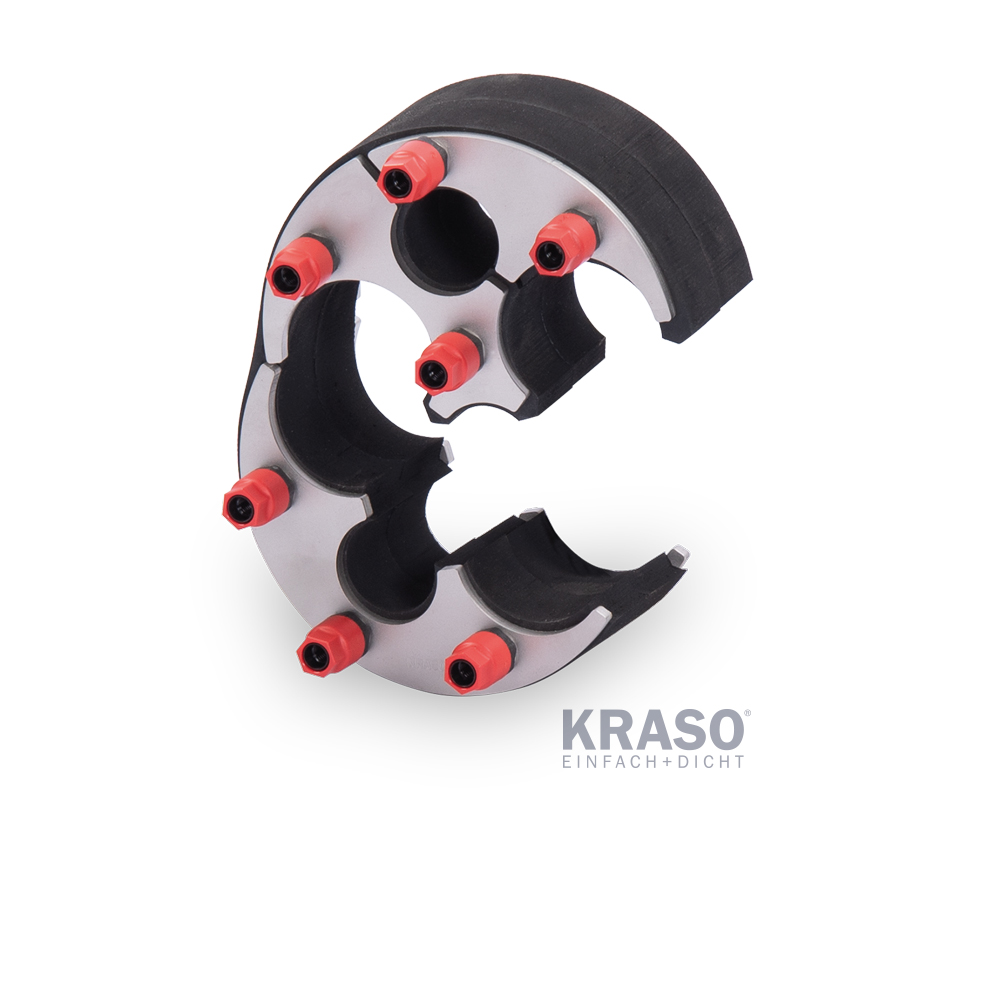

KRASO Type SD 30 - T |
115 € |
115 € |
115 € |
124 € |
124 € |
158 € |
179 € |
233 € |
312 € |
399 € |
480 € |
549 € |
648 € |
720 € |
|
KRASO Type SD 30 - GF |
110 € |
110 € |
110 € |
118 € |
118 € |
152 € |
171 € |
222 € |
299 € |
381 € |
459 € |
525 € |
619 € |
689 € |
|
KRASO Type SD 60 |
||||||||||||||
|
KRASO Type SD 60 |
134 € |
144 € |
144 € |
144 € |
154 € |
189 € |
222 € |
286 € |
372 € |
487 € |
566 € |
631 € |
746 € |
873 € |
|
KRASO Type SD 60 - T |
155 € |
165 € |
165 € |
165 € |
177 € |
217 € |
255 € |
329 € |
426 € |
561 € |
652 € |
725 € |
858 € |
1,004 € |
|
KRASO Type SD 60 - GF |
147 € |
158 € |
158 € |
158 € |
169 € |
209 € |
243 € |
315 € |
409 € |
536 € |
623 € |
694 € |
820 € |
960 € |
|
Surcharge: additional drilling |
up to 5 drillings each additional drilling 18 €, each further additional drilling 11.50 € |
|||||||||||||
Häufig gestellte Fragen (FAQ)
What is the KRASO Sealing Insert Type ED, DD and VD?
The KRASO Sealing Insert Type ED + DD + VD is a high-quality sealing system designed to provide a watertight passage for pipes through concrete structures such as walls or floor plates. It is used in core drill holes or casing pipes.
For which installation scenarios is the SD model suitable?
Der Dichteinsatz eignet sich sowohl für Kernbohrungen als auch für den Einbau in Futterrohre und kann individuell an unterschiedliche Anforderungen angepasst werden.
What versions of the KRASO Type SD sealing insert are available?
The KRASO Sealing Insert Type SD is also available in the following versions:
- Split version (Type SD-T) – ideal for retrofitting where cables or pipes have already been laid
- Version with large flange (Type SD-GF) – for more demanding wall sealing requirements.
What does the FHRK e. V. quality seal mean?
The KRASO Sealing Insert Type SD bears the FHRK e. V. quality seal. This seal certifies tested quality, high sealing performance and suitability for use in demanding construction projects.
Is the KRASO Sealing Insert Type SD watertight against pressurised water?
Yes, the seal is MPA-tested and provides reliable protection against water pressure of up to 2.5 bar or 5 bar, depending on the version selected.
Is the KRASO Sealing Insert gas-tight, odour-tight and radon-tight?
Yes, the KRASO Sealing Insert Type SD is:
- gas- and odour-tight in accordance with TA-Luft
- radon-tight (IAF-tested) and meets the requirements for radon-prone areas in accordance with FHRK Information Sheet MB 101
What materials are used as standard?
As standard, the KRASO Sealing Insert Type SD consists of:
- 5 mm thick clamping plates made of V2A stainless steel
- a 30 mm or 60 mm thick seal made from a specially developed rubber compound
- welded-on bolts for high stability
What additional material grades are available at an extra cost?
For an additional charge, the KRASO Sealing Insert Type SD is also available in the following grades:
- V4A stainless steel – for particularly aggressive environments
- KTW-recommended version – for drinking water applications
- NBR seal – resistant to oil and petrol, and temperature-resistant up to 220 °C
What is the occupancy template and what is it used for?
Jeder KRASO Dichteinsatz Typ SD wird mit einer Belegungsschablone geliefert. Sie zeigt auf einen Blick, welche Kabel- oder Rohrdurchmesser an welcher Position eingebaut werden können, und erleichtert die Montage.
Does the KRASO Sealing Insert Type SD comply with the DafStB waterproof concrete guideline?
Yes, the KRASO Sealing Insert Type SD, complies with the DafStB waterproof concrete guideline for stress classes 1 and 2 and is therefore suitable for watertight structures.
