KRASO Sealing Insert Type FIX

for installation of pipes, with mounting bracket for fixing to the wall, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type ED/FIX), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type DD/FIX) | DafStB waterproof concrete guideline: stress class 1 + 2

Simply just better

+ For core drillings or casings

+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe

+ MPA-tested: protects reliably against pressurised water up to 10 bar!

+ Gas- and odour-tight – high-quality in terms of TA-Air!

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

+ Certified with the quality seal of the FHRK e. V.

+ KRASO Sealing Insert Configurator - simple and fast: configure the matching sealing insert online or via our app

Info

All sizes and diameters available on request! All sealing inserts available in V4A for an additional charge!

Downloads

KRASO Sealing Insert Type FIX

Installation Instructions KRASO Sealing Inserts

Produktinfo KRASO Dichteinsatz Typ FIX

Prüfbericht KRASO Futterrohr Typ FE mit Dichteinsatz

Test Certificate KRASO Sealing Insert Radon

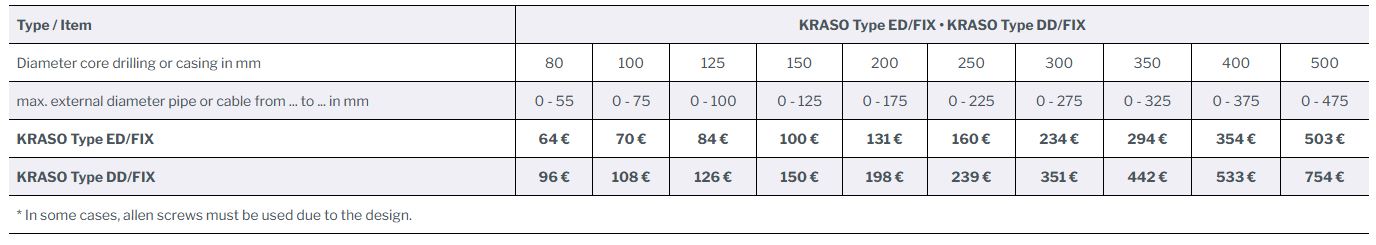

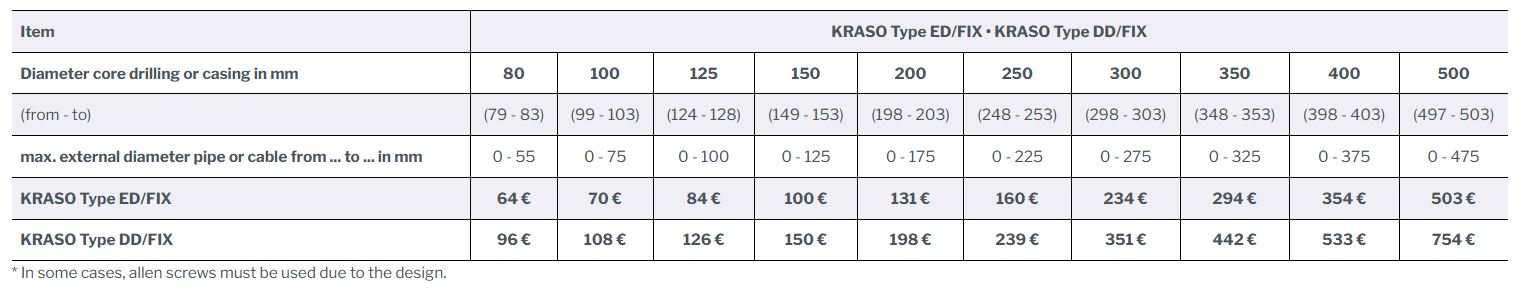

Type / Item	KRASO Type ED/FIX • KRASO Type DD/FIX
Diameter core drilling or casing in mm	80	100	125	150	200	250	300	350	400	500
max. external diameter pipe or cable from ... to ... in mm	0 - 55	0 - 75	0 - 100	0 - 125	0 - 175	0 - 225	0 - 275	0 - 325	0 - 375	0 - 475
KRASO Type ED/FIX	64 €	70 €	84 €	100 €	131 €	160 €	234 €	294 €	354 €	503 €
KRASO Type DD/FIX	96 €	108 €	126 €	150 €	198 €	239 €	351 €	442 €	533 €	754 €
* In some cases, allen screws must be used due to the design.
