KRASO Pressure Shaft 400
KRASO Pressure Shaft 400
for water drainage during buidling period, with water pressure tight surrounding, thermally welded KRASO 4 Seal, surrounding shear key, surrounding perforated plate encasement and filter fleece, with base for KRASO Sealing Insert Type Poly 400 - Blind (not included in the scope of supply) water entry in non-installed state: with fleece 60l/s, without fleece 90 l/s | DafStB waterproof concrete guideline: stress class 1 + 2
Info
Special sizes and designs available on request!
Downloads

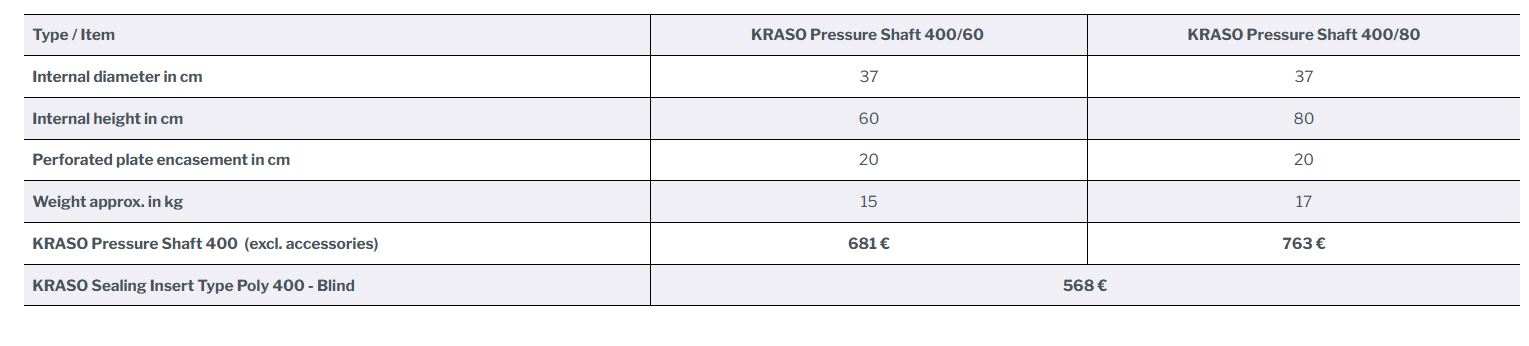

KRASO Pressure Shaft 400
|
Type / Item |
KRASO Pressure Shaft 400/60 |
KRASO Pressure Shaft 400/80 |
|
Internal diameter in cm |
37 |
37 |
|
Internal height in cm |
60 |
80 |
|
Perforated plate encasement in cm |
20 |
20 |
|
Weight approx. in kg |
15 |
17 |
|
KRASO Pressure Shaft 400 (excl. accessories) |
681 € |
763 € |
|
KRASO Sealing Insert Type Poly 400 - Blind |
568 € |
|
KRASO Pump Sump - concrete -
for collecting waste water | DafStB waterproof concrete guideline: stress class 1 + 2
Saves time and money+ Avoid formworks on-site - and save time and money - with the KRASO Pump Sump as ready-made concrete element!+ Made of waterproof concrete (C35/45) in one piece cast - without additional joints!+ 12 cm thick, reinforced walls as well as the surrounding water pressure tight, MPA-tested construction joint tape KRASO Duo-Fix 150 “plus” grant a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!
+ DafStB waterproof concrete guideline: stress class 1 + 2

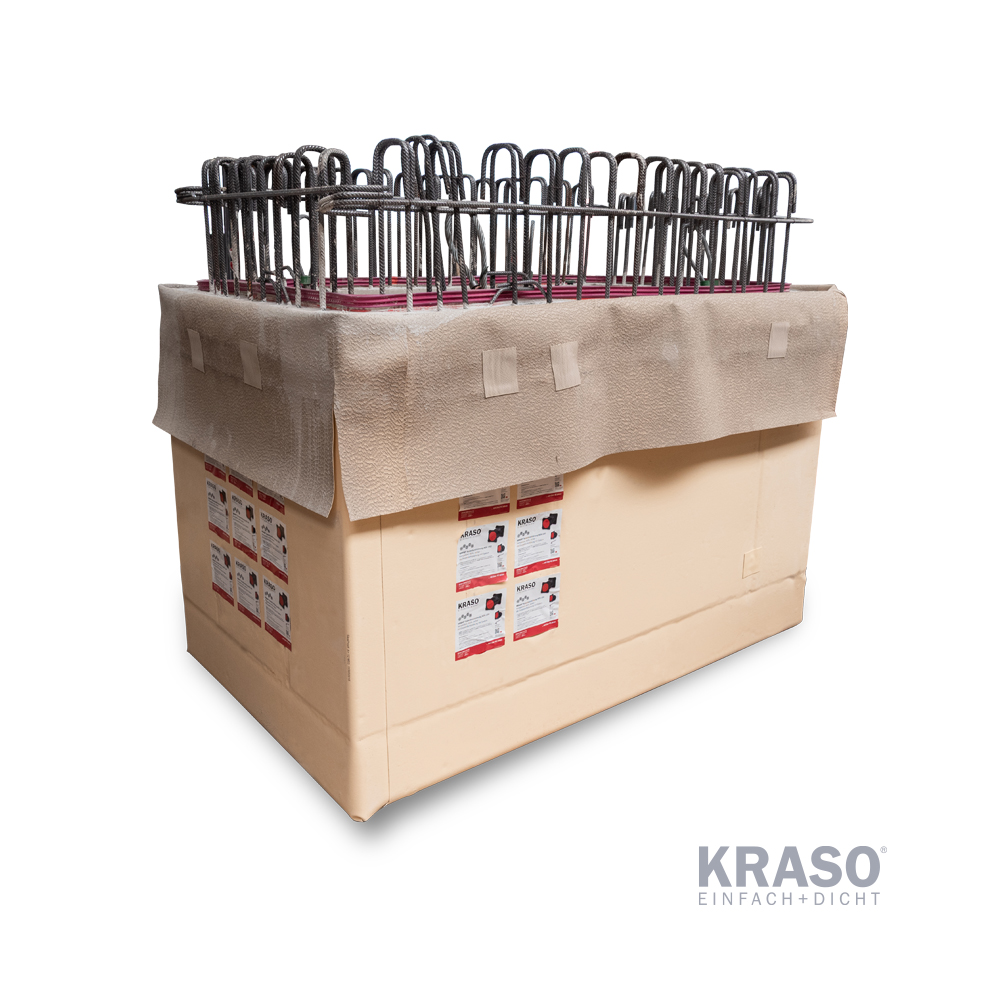

KRASO Pump Sump FBV - concrete -
for collecting waste water, made of water proof concrete with 12 cm strong, reinforced walls in one piece cast - on request with FBV sealing flangePump sumps, lift pits, inspection shafts
+ Precast concrete elements as special designs for a compliant integration of fresh concrete composite films: pump sumps, lift pits, cable ducts, inspection shafts+ Complete foil cover for intergation into the base plate! Manufacturer-independent: fresh concrete composite films (FBV) of all manufacturers can be integrated + Weather-independent prodcution, completely custom-made exactly according to your instructions!+ The surrounding water pressure tight construction joint tape KRASOflex Duo-Fix 150 “plus” ensures a water pressure tight passage to the base plate+ Simple and fast placement on-site thanks to crane lifting lugs!+ With crane lifting lugs for an easy and fast placement on the site.
KRASO Pump Sump Poly 400
for collecting waste water, with water pressure tight surrounding, thermally welded KRASO 4 Seal, shear key and pipe connection DN 110, suitable for KG, HT and KG 2000 pipes
| DafStB waterproof concrete guideline: stress class 1 + 2Light and tight+ Light and water pressure tight solution for sewage free of faeces - for new buildings or rehabilitation!+ Saves time and money: simple installation due to light weight - no additional formwork or concreting sections for several days required!+ Without higher risks occurring by leaky concreting joints and/or pipe connections! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Pump Sump Type Q - square -
for collecting waste water suitable for KG, HT and KG 2000 pipes | DafStB waterproof concrete guideline: stress class 1 + 2Low weight - quick delivery: the simple and tight plastic solution+ Low weight = low transport costs and easy handling without crane on-site+ Saves time, labour, money and additional drainage: no cost-intensive works, no concreting sections for several days, no shuttering!+ No risk occuring due to leaking concrete joints and/or pipe connections+ Resistance against many acids and lyes!+ Made of high-quality, impact resistant, almost indestructible plastic. Special dimensions are available within a few days!
+ DafStB waterproof concrete guideline: stress class 1 + 2
