KRASO Magnetic Cover with magnetic interface for KRASO Pipe Penetrations DN 110, especially for precast element factories
The magnetic interface for precast walls
Waterproof concrete structures in pressurised water pose particular challenges. In addition to in-situ concrete construction, building with element walls has also become established as a waterproof concrete construction method. Consistent quality and rapid construction progress are just two of the many advantages here.
Whether in-situ concrete or precast element construction, all places where pipes or cables pass through the wall pose a challenge. Here, precautions must be taken against water penetration by using pipe penetrations with waterproof sealing. These pipe penetrations are currently glued manually to the formwork tables in precast element factories using installation covers. This type of work is labour-intensive and involves a risk of incorrect positioning.
The new KRASO Magnetic Cover with magnetic interface for KRASO Pipe Penetrations provides a solution. Using formwork robots, the magnet can also be positioned automatically with millimetre precision for pipe penetrations, and the pipe penetration can be clicked onto the formwork of the outer shell via the cover with magnetic interface. When the element wall is turned, the magnet remains on the formwork and the magnetic cover remains in the pipe penetration as protection.
+ Especially for precast element factories!
+ KRASO Magnetic Cover available for KAISER and PRIMO magnetic systems!
+ Suitable for all pipe penetrations in DN 110
+ Enables precise, machine-controlled positioning on the formwork table
+ Eliminates labour-intensive manual positioning and helps to avoid errors
+ Once completed, the KRASO Magnetic Cover remains in the pipe penetration as protection
Info
Scope of supply:
KRASO Magnetic Cover
KRASO Magnetic Cover
Downloads
KRASO Magnetic Cover
|

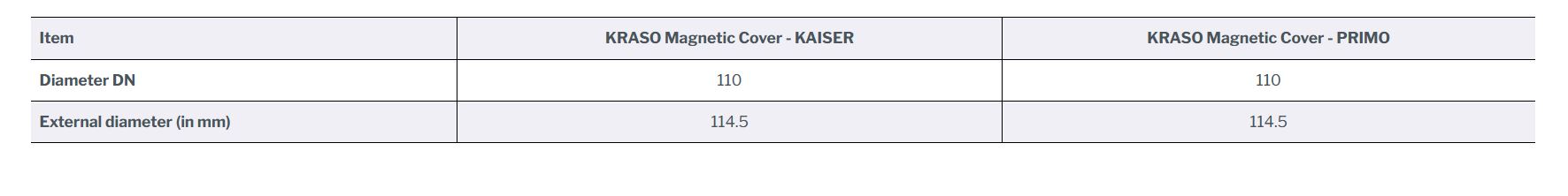

Item |
KRASO Magnetic Cover - KAISER |
KRASO Magnetic Cover - PRIMO |
|
Diameter DN |
110 |
110 |
|
External diameter (in mm) |
114.5 |
114.5 |
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as an installation aid+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B/SF 5 for KG 2000
for installation in waterproof concrete walls for connection to KG 2000 pipes on both sides, with trowel flange on one side with dovetail groove for the secure connection of bitumen thick coating and reactive sealings, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Secure connection of bitumen and reactive sealings+ Dimensionally stable and pressure-resistant solid wall material: low abrasion, installation even at lower temperatures+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!+ Surrounding approx. 5 cm trowel flange on one side, for secure connection of bitumen thick coating such as KMB or reactive sealings: roughened or tissue coated+ Also available: trowel flange made of PP with dovetail groove as KRASO Type B/SF 5 - KG 2000 for the secure gripping of bitumen thick coating
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO Wall Penetration Type DFW
triple wall - specially made for precast factories -in accordance with DIN EN 1401, for the installation in triple walls, for connection to KG/HT pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2Easy and secure sealing in precast walls + For the installation in triple wall elements: stop occurring water at the outer shell! + KRASO Type
DFW 4: KRASO 2 Seal on both sides - MPA-tested
up to 3.5 bar!+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested
up to 10 bar!+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested
up to 10 bar!
+ IAF-tested: radon-tight!+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type DFW for KG 2000
in accordance with DIN EN 14758, for installation into triple walls, for the connection to KG 2000 pipes on both sides, with formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2Easy and secure sealing in precast walls + For the installation in triple wall elements: stop occurring water at the outer shell! + KRASO Type
DFW 4: KRASO 2 Seal on both sides - MPA-tested
up to 3.5 bar!+ KRASO Type DFW 6: KRASO 2 Seal on one side, central KRASO 4 Seal - MPA-tested
up to 10 bar!+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested
up to 10 bar!
+ IAF-tested: radon-tight!+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Häufig gestellte Fragen (FAQ)
Was ist der KRASO Magnetdeckel?
Der KRASO Magnetdeckel ist ein spezieller Einbaudeckel mit Magnetschnittstelle für KRASO Rohrdurchführungen DN 110, der in Fertigteilwerken eingesetzt wird.
Wofür wird der KRASO Magnetdeckel verwendet?
Er dient zur exakten Positionierung und Fixierung von Rohrdurchführungen bei der Herstellung von Element- und Fertigteilwänden.
Welche Vorteile bietet der KRASO Magnetdeckel im Fertigteilwerk?
Er ermöglicht eine millimetergenaue, maschinengesteuerte Positionierung, spart manuelle Arbeit, reduziert Fehler und beschleunigt den Produktionsprozess.
Wie wird der KRASO Magnetdeckel montiert?
Der Magnetdeckel wird über einen Schalungsroboter mithilfe der Magnetschnittstelle auf dem Schaltisch positioniert und auf die Schalung der Außenschale geklickt.
Was passiert mit dem Magnetdeckel beim Wenden der Elementwand?
Beim Wenden der Wand verbleibt der Magnet auf der Schalung, während der KRASO Magnetdeckel als Schutz in der Rohrdurchführung bleibt.
Für welche Rohrdurchführungen ist der KRASO Magnetdeckel geeignet?
Der KRASO Magnetdeckel ist für nahezu alle KRASO Rohrdurchführungen mit Nennweite DN 110 geeignet.
Mit welchen Magnetsystemen ist der KRASO Magnetdeckel kompatibel?
Der KRASO Magnetdeckel ist sowohl für KAISER- als auch für PRIMO-Magnetsysteme erhältlich.
Bleibt der KRASO Magnetdeckel dauerhaft in der Wand?
Nach der Fertigstellung verbleibt der KRASO Magnetdeckel bis zum Anschluss der Rohrleitungen als Schutz in der Rohrdurchführung.
