KRASO KDS/DFW 90 single wall penetration
cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on one side and KDS closure cover, with plug-in system on one side for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). | DafStB waterproof concrete guideline: stress class 1 + 2
Compatible, tight, secure – the single wall penetration system
+ Compatible with all current systems!
+ Tight due to water pressure tight surrounding KRASO 2 Seal
+ Secure due to break-resistant solid wall material!
+ Intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or the industrial and commercial sector
+ With plug-in system on one side for forming packages! Horizontal und vertical combination possible!
+ Optimised for installation in precast walls
+ Certified with the quality seal of the FHRK e. V.
+ The matching accessories for every purpose!
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Cable Penetration KDS/DFW 90 single wall penetration, KDS closure cover, KRASO Cover as an installation aid
Further wall thicknesses available on request!
You can find matching accessories here
Downloads
|

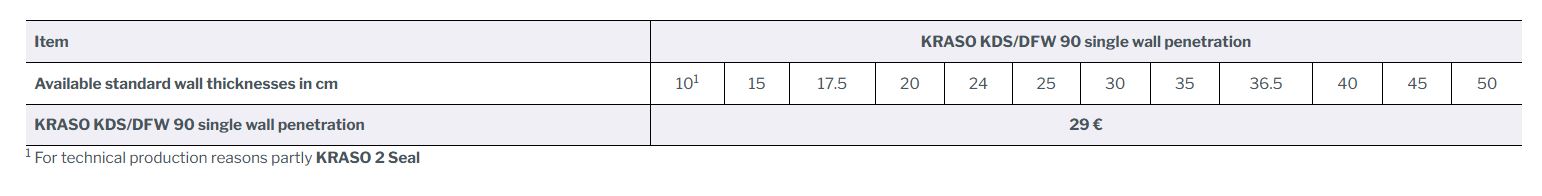

Item |
KRASO KDS/DFW 90 single wall penetration |
|||||||||||
|
Available standard wall thicknesses in cm |
101 |
15 |
17.5 |
20 |
24 |
25 |
30 |
35 |
36.5 |
40 |
45 |
50 |
|
KRASO KDS/DFW 90 single wall penetration |
29 € |
|||||||||||
