KRASO KDS 150 FL/ZE double wall penetration
KRASO KDS 150 FL/ZE double wall penetration
cable penetration KDS 150 FL/ZE as double wall penetration, with fixed-loose flange and exterior protrusion flange FDS 150 for concreting, for installation of media pipes using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or for connection of KRASO KDS 150 Accessories (e.g. system cover) with bayonet fitting, made of non-corrosive stainless steel V2A, with water pressure tight surrounding KRASO 2 Seal, for buildings with exterior sealing (“black tank“) against pressing water / non-pressing water according DIN 18533.
Available in non-corrosive stainless steel V2A or with special coating | DIN 18533 W1 -E, W2.2 -E
Info
Scope of supply:
KRASO Cable Penetration KDS 150 FL/ZE double wall penetration, with fixed-loose flange and exterior KRASO Protrusion Flange FDS 150, 2 KDS 150 closure covers, adhesive sealant KRASO PU 50
KRASO Cable Penetration KDS 150 FL/ZE double wall penetration, with fixed-loose flange and exterior KRASO Protrusion Flange FDS 150, 2 KDS 150 closure covers, adhesive sealant KRASO PU 50
Further wall thicknesses available on request! Also available in V4A! Also available as formed packages!
Downloads

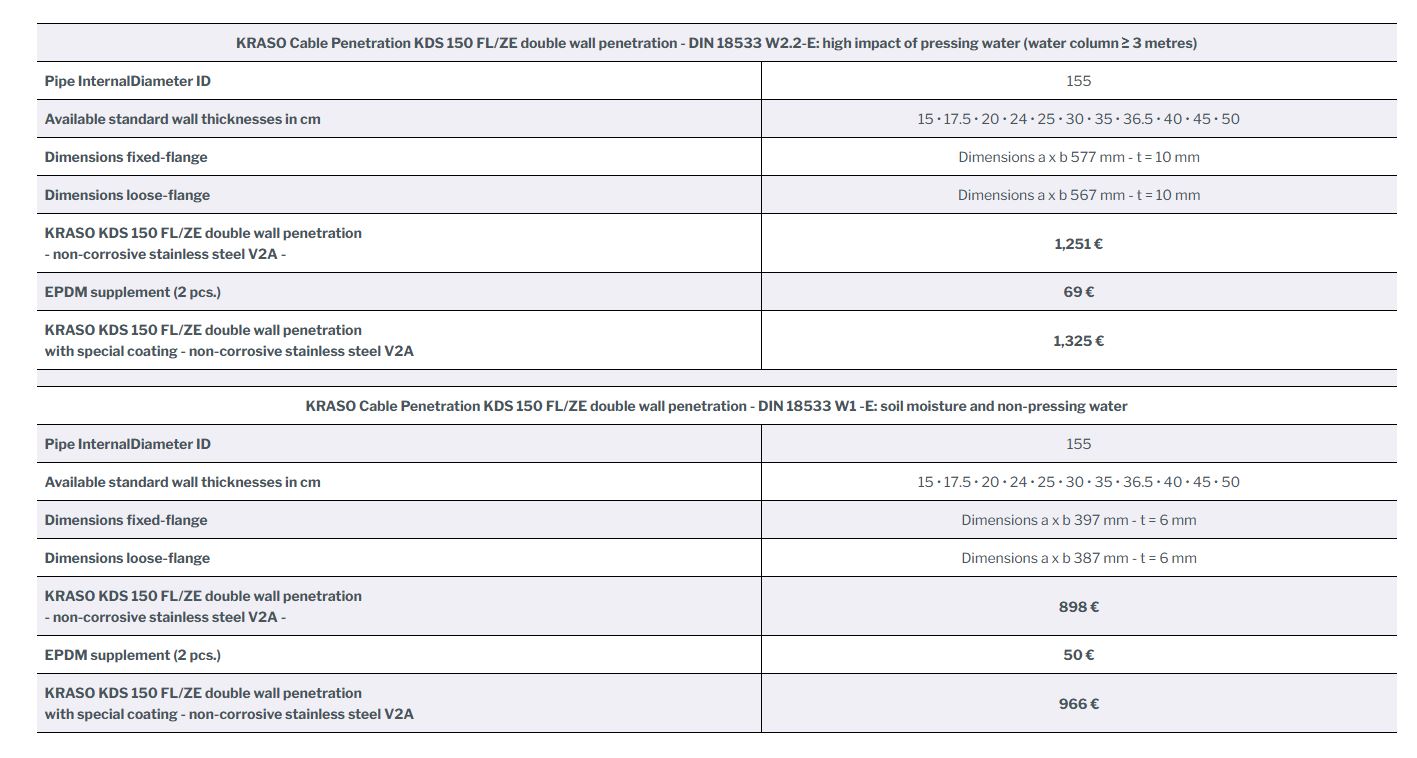

KRASO Cable Penetration KDS 150 FL/ZE double wall penetration - DIN 18533 W2.2-E: high impact of pressing water (water column ≥ 3 metres) |
|
|
Pipe InternalDiameter ID |
155 |
|
Available standard wall thicknesses in cm |
15 • 17.5 • 20 • 24 • 25 • 30 • 35 • 36.5 • 40 • 45 • 50 |
|
Dimensions fixed-flange |
Dimensions a x b 577 mm - t = 10 mm |
|
Dimensions loose-flange |
Dimensions a x b 567 mm - t = 10 mm |
|
KRASO KDS 150 FL/ZE double wall penetration |
1,251 € |
|
EPDM supplement (2 pcs.) |
69 € |
|
KRASO KDS 150 FL/ZE double wall penetration |
1,325 € |
|
KRASO Cable Penetration KDS 150 FL/ZE double wall penetration - DIN 18533 W1 -E: soil moisture and non-pressing water |
|
|
Pipe InternalDiameter ID |
155 |
|
Available standard wall thicknesses in cm |
15 • 17.5 • 20 • 24 • 25 • 30 • 35 • 36.5 • 40 • 45 • 50 |
|
Dimensions fixed-flange |
Dimensions a x b 397 mm - t = 6 mm |
|
Dimensions loose-flange |
Dimensions a x b 387 mm - t = 6 mm |
|
KRASO KDS 150 FL/ZE double wall penetration - non-corrosive stainless steel V2A - |
898 € |
|
EPDM supplement (2 pcs.) |
50 € |
|
KRASO KDS 150 FL/ZE double wall penetration |
966 € |
KRASO FLS 90 - Flexible Empty Pipe System
flexible empty pipe system as a cable protective hose for the extension of the KRASO Builder's Convenience Box - floor - SET using the KRASO BKP - Extension Set, with a smooth interior for easy cable pulling, smooth exterior for optimal sealing, flexible, increased pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances), compression resistance 629 N, tests in line with DIN EN 61386-24 lead to the following classifications: type 250 - impact resistance: normal - classification code: N250
KRASO System Cover KDS 150 with hose adapter
incl. bayonet fitting with union nut and anti-twist lock, hose adapter for the connection of KRASO FLS, PE corrugated pipes or PVC and PP pipes to KRASO Cable Penetration KDS 150. In combination with KRASO FLS water pressure tight up to 2.5 bar. Scope of application in the table below | DafStB waterproof concrete guideline: stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Quick Sealing Plug for FLS
for sealing the KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO System Sealing Insert KDS 150 Universal Multiple - split -
for installation of one or several media lines/cables, for installation into the bayonet fitting of KRASO Cable Penetration KDS 150, split design for retrofit installation, Torque Control Nut KRASO DKM, 30 mm seal, external diameter 160 mm, specifically for the use in cable penetrations | DafStB waterproof concrete guideline: stress class 1 + 2Universally usable - multiply flexible+ For core drillings and casings+ Stepless onion ring technology: universally usable for various external diameters of media lines/cables - also for multiple installation! Split design for retrofit installation!+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 40 mm seal made of specially developed rubber mixture, welded-on studs instead of through bolts+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ MPA-tested: protects reliably against pressing water up to 2,5 bar!+ Gas- and odour tight - high-quality in terms of TA-Air!+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!+ Certified with the quality seal of the FHRK e. V. + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Sealing Insert Type IN-GR - split -
inner seal for cable protective hoses Type-R / corrugated pipes for the installation of one or several media lines or cables | DafStB waterproof concrete guideline: stress class 1 +
2
Inner seal for ribbed media pipes+ Sealing insert for the internal sealing of one or several media lines in cable protective hoses Type-R+ Stepless onion ring technology: universally suitable for a wide range of external diameters of media lines/cables - even for multiple installation! Split design for retrofit installation!
+ Torque Control Nut KRASO DKM:
integrated torque limiter - no torque wrench required!+ Certified with the quality seal of the FHRK e. V.+ Non-corrosive stainless steel V2A, 30 mm seal
+ DafStB waterproof concrete guideline: stress class 1 +
2
KRASO Hose Connection
for the connection of e.g. KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS +Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Spacer
guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather- and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150
+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO System Cover KDS 150 with sleeve
incl. bayonet fitting with unit nut and anti-twist lock, sleeve for the connection of PVC and PP pipes to KRASO Cable Penetration KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO System Cover KDS 150 - heat-shrink technology
incl. bayonet fitting with union nut and anti-twist lock (prevents unintentional opening), with 1, 3 or 7 adapters for installation of pipes or cables, incl. heat-shrink hose (length approx. 20 cm), connection via heat-shrink technology, KRASO System Cover KDS 150 - heat-shrink technology - 3-fold and 7-fold with factory-installed, water pressure tight cover, simple opening by knocking off before installation (on-site), scope of application as per table below | DafStB waterproof concrete guideline: stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150
+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetration and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Y-Wrench
Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150
+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
