KRASO Inject FE
KRASO Inject FE
recess for retrofit installation of cables and pipes using a sealing insert (not included in the scope of supply), with injection system | DIN 18533 W2.1 -E, DafStB waterproof concrete guideline: stress class 1 + 2
The true diameter inject casing for existing buildings
+ Thick-walled true diameter casing for retrofit installation
+ Fast and easy installation: injection system with fast-curing expansion resin
+ Suitable for all common types of walls - also for hollow bricks
+ With sealing flange for exterior sealing ("black tank")
+ Ideal for rehabilitation and new connections in existing buildings
+ Integrated torque control (IDK) - no torque wrench required
+ For the sealing of cables or pipes using a sealing insert (not included in the scope of supply): e.g. KRASO Sealing Insert Type ED
+ Gas and water pressure tight up to 1 bar
+ DIN 18533 W2.1 -E ("moderate impact of pressing water")
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Further diameters and wall thicknesses available on request!
Downloads
KRASO Inject FE
|

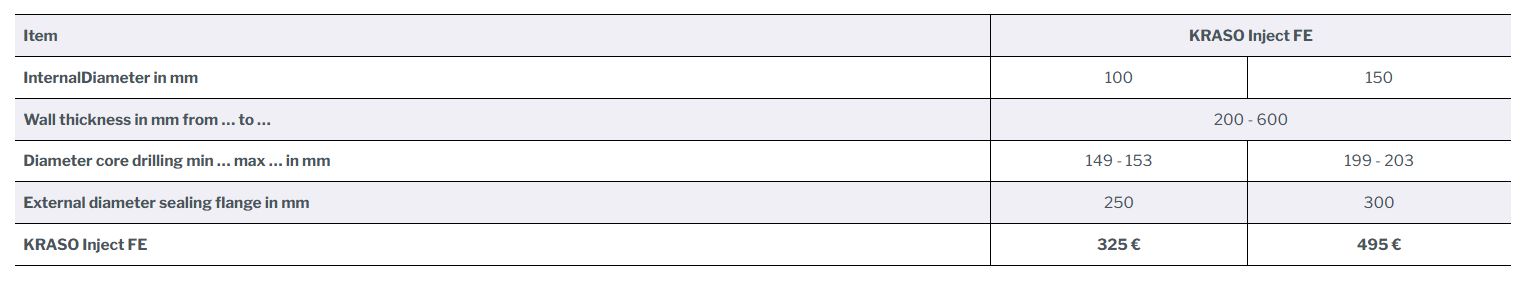

Type / Item |
KRASO Inject FE |
|
|
InternalDiameter in mm |
100 |
150 |
|
Wall thickness in mm from … to … |
200 - 600 |
|
|
Diameter core drilling min … max … in mm |
149 - 153 |
199 - 203 |
|
External diameter sealing flange in mm |
250 |
300 |
|
KRASO Inject FE |
325 € |
495 € |
KRASO Inject LR
empty pipe as recess for retrofit installation of cables and pipes using a casing pipe end plug (electricity/water, telecommunication or fibreglass), with injection system | DIN 18533 W2.1 -E, DafStB waterproof concrete guideline: stress class 1 + 2Empty pipe as retrofit wall penetration for existing buildings+ Empty pipe for retrofit installation+ Fast and easy installation: injection system with fast-curing expansion resin+ Suitable for all common types of walls - also for hollow bricks+ With sealing flange for exterior sealing ("black tank")+ Ideal for rehabilitation and new connections in existing buildings+ Integrated torque control (IDK) - no torque wrench required+ With option to connect casing pipes+ Casing pipe end plugs for electricity/water, telecommunication or fibreglass+ Gas and water pressure tight up to 1 bar+ DIN 18533 W2.1 -E ("moderate impact of pressing water")+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Inject FR
wall penetration for the connection of KG/KG 2000 pipes, with injection system | DIN 18533 W2.1 -E, DafStB waterproof concrete guideline: stress class 1 + 2The inject wall penetration with flow direction (FR) for existing buildings+ Quick and easy to install wall penetration for e.g. sewage pipes+ One flow direction! Including pipe with sleeve and spigot for the connection of KG/KG 2000 pipes+ Suitable for all common types of walls - also for hollow bricks+ With sealing flange for exterior sealing ("black tank")+ Ideal for rehabilitation and new connections in existing buildings+ Integrated torque control (IDK) - no torque wrench required+ Injection system with fast-curing expansion resin+ Gas and water pressure tight up to 1 bar+ DIN 18533 W2.1 -E ("moderate impact of pressing water")+ DafStB waterproof concrete guideline: stress class 1 + 2
