KRASO Floor Drain Type FS - frost proof

Foil flange

KRASO Floor Drain Type FS - frost proof

for the installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity: 1,67 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E


Inside and outside - tight and dry

+ For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight!

+ Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs!

+ High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.

+ Additional accessories as completion for individual needs.

DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E

Info

Scope of supply:

KRASO
Floor Drain Type FS, screwable stainless steel grate class K3, frost proof odour barrier, sludge trap filter and building period protective cover • KRASO Floor Drain Type FS with foil flange, screwable stainless steel grate class K3, frost proof odour barrier, sludge trap filter and building period protective cover

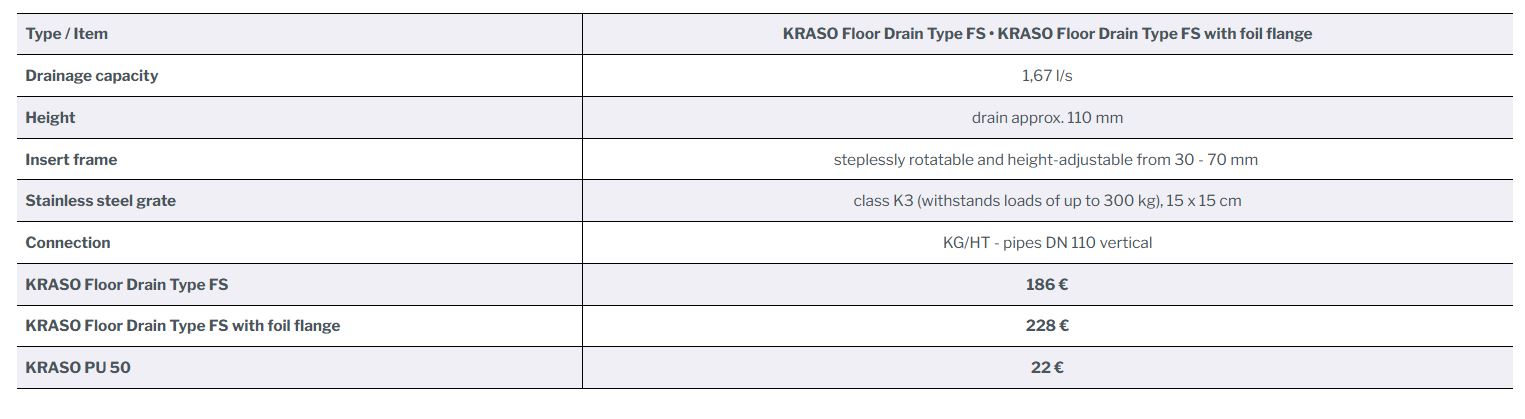

Type / Item

KRASO Floor Drain Type FS • KRASO Floor Drain Type FS with foil flange

Drainage capacity

1,67 l/s

Height

drain approx. 110 mm

Insert frame

from 30 - 70 mm can be rotated and is fully height-adjustable

Stainless steel grate

class K3 (withstands loads of up to 300 kg), 15 x 15 cm

Connection

KG/HT - pipes DN 110 vertical


KRASO Floor Drain - thermally insulated -
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal  | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Inside and outside - tight and dry + For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight! + Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs! + High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Inside and outside - tight and dry + For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight! + Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs! + High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates. + Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain - KG 2000
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Inside and outside - tight and dry + For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight! + Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs! + High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain Type FS - RS - frost proof - backwater safe
for the installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity: 0,4 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Frost proof - backwater safe + For installation in outdoor areas without traffic, for the drainage of grey water, drainage capacity:0,4 l/s.+ All year use due to its frost proof backwater double stopper. + KG 2000: high impact strength and persistence. + Screwable stainless steel grate: class K3 up to max. 300 kg.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also suitable on moist surface, recommended for all products with KRASO Foil Flange, colour black
KRASO Floor Drains - Accessories
accessories for KRASO Floor Drains+ Insert frame extension height > 140 mm + Insert frame extension with foil flange height > 140 mm, foil flange (d = approx. 50 cm)+ Insert frame extension - fit for traffic up to 1,5 t can be rotated and is height-adjustable from 15 - 120 mm, all visible parts are made of stainless steel, stable stainless steel grate massive, screwed, 150 x 150 mm, fit for traffic up to 1,5 t, L 15+ Insert frame all visible parts are made of stainless steel incl. stainless steel grate+ Stainless steel grate class K3+ Stainless steel grate - screwable - incl. insert frame with threaded sleeves+ Raising element for thin-bed mortar screed structure height from 25 - 130 mm+ Spare parts kit consisting of: backflow seal, odour stopper, sludge trap filter, insert frame and plastic grate+ Floor Drain insert frame with building period protective cover suitable for industry floors
