KRASO Flange Pipe Type KG

Diameter DN

110

125

160

200

250

315

400

500

KRASO Flange Pipe Type KG

for retrofit installation, for connection to KG/HT lines, made of high-quality, dimensionally and pressure stable solid wall material, with formed plug-in sleeve on one side and KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DIN 18533 W1-E and W2.1-E

Simple and effective integration into bituminous sealing

+ For new building and rehabilitation - according DIN 18533 W1-E and W2.1-E.

+ Simple and effective integration into bituminous sealing (“black tank“): bitumen thick coating (e.g. KMB) and sheeting, concrete and brick wall.

+ Water pressure tight up to 1,5 bar - MPA-tested!

+ Made of dimensionally and pressure stable solid wall material with low abrasion! Easy to install at low temperatures.

+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).

Info

Scope of supply:

KRASO Flange Pipe Type KG

Downloads

Produktinformation

Produktinfo_KRASO_Flanschrohre (3.22 MiB)

Datenblatt

Datenblatt_KRASO_Flanschrohr_Typ_KG (193.61 KiB)

Prüfzeugnis

Prüfbericht_KRASO_Flanschrohr (1.82 MiB)

DWG-Dateien

DWG_KRASO_Flanschrohr_Typ_KG_DN_125 (262.56 KiB)

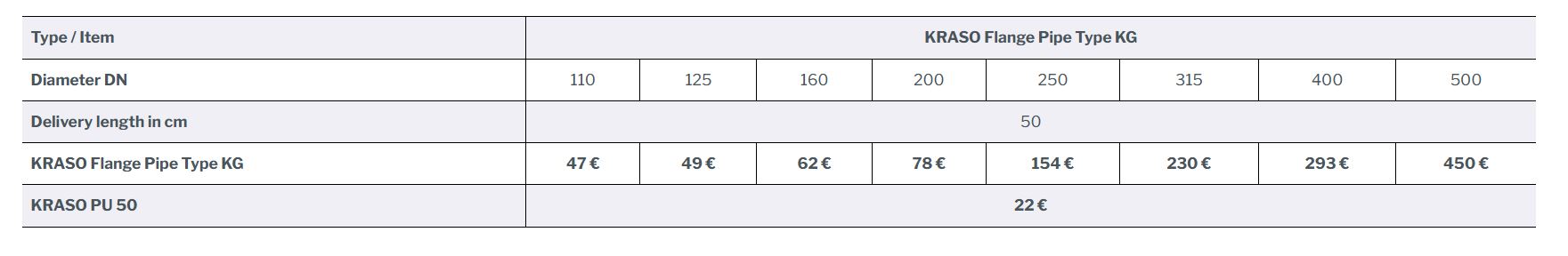

Type / Item	KRASO Flange Pipe Type KG
Diameter DN	110	125	160	200	250	315	400	500
Delivery length in cm	50
