KRASO Cable Penetration FBV-KDS as double wall penetration

Diameter KDS
Available standard wall thicknesses

KRASO Cable Penetration FBV-KDS as double wall penetration

cable penetration system for concreting | DafStB waterproof concrete guideline: stress class 1 + 2


Double wall penetration as FBV system


+ Cable penetration for the compliant integration of fresh concrete composite films

+ Independent from the manufacturer: fresh concrete composite films (FBV) of all manufacturers can be integrated at the factory

+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film

+ Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant wall material!

+ The intelligent, all-purpose and flexible cable penetration system for complex construction projects:
public buildings, hospitals, technical-scientific institutions or in industrial and commercial sectors

+ With plug-in system on both sides for forming packages!

DafStB waterproof concrete guideline: stress class 1 + 2

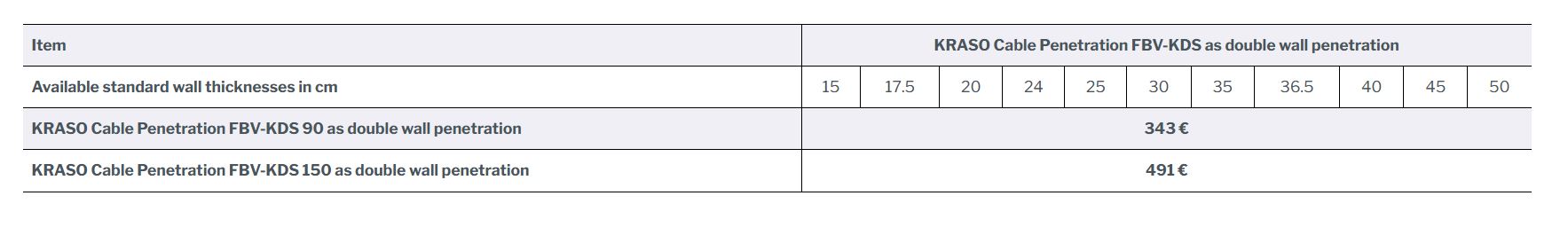

Type / Item

KRASO Cable Penetration FBV-KDS as double wall penetration

Available standard wall thicknesses in cm

15

17,5

20

24

25

30

35

36,5

40

45

50

KRASO Cable Penetration FBV-KDS 90 as double wall penetration

343 €

KRASO Cable Penetration FBV-KDS 150 as double wall penetration

491 €


KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4 and 3 bar, under-pressures of 0,7 and 0,5 bar , heavy design for high mechanical load, smooth interior for smooth cable pulling, smooth exterior for optimal sealing, flexible, enhanced resistance against pressure and vacuum, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Cable Penetration KDS 150 single floor penetration with hose connection
for later installation of pipes or cables using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or KRASO System Cover KDS 150 (not included in the scope of supply), with water pressure tight surrounding KRASO 4 Seal, with plug-in system on one side for forming packages, one with hose connection including connection e.g. for KRASO FLS - Flexible Empty Pipe System | DafStB waterproof concrete guideline: stress class 1+2Compatible, tight, secure - the single wall penetration+ Compatible with all other current systems! Tight due to the water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS 150 single wall penetration with plug-in sleeve
for later installation of pipes or cables using KRASO System Sealing Insert KDS 150 (not included in the scope of supply) or KRASO System Cover KDS 150 (not included in the scope of supply), with water pressure tight surrounding KRASO 4 Seal, with plug-in system on one side for forming packages, one side with plug-in sleeve including connection for KG, HT or KG 2000 pipes DN 160 | DafStB waterproof concrete guideline: stress class 1 + 2Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material!+ The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS/DFW single wall penetration
cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on one side and KDS closure cover, with plug-in system on one side for forming packages, for later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS/DFW 150 single wall penetration for enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the single wall penetration system+ Compatible with all other current systems! Tight due to the water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS/DFW double wall penetration
cable penetration system for installation into triple walls, with gas- and water pressure tight surrounding KRASO 2 Seal on both sides and 2 KDS closure covers, with plug-in system on both sides for forming packages, for the later installation of media lines using KRASO System Sealing Insert (not included in the scope of supply) or for connecting empty pipe hoses using KRASO System Cover (not included in the scope of supply). Optionally available: KRASO Spacer 40 mm for KDS/DFW 150 double wall penetration for the enlargement of the centre distance from 210 mm to 250 mm | DafStB waterproof concrete guideline: stress class 1 + 2 Compatible, tight, secure - the double wall penetration system+ Compatible with all other current systems! Tight due to our water pressure tight KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS 150 double wall penetration with trowel flange
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal, incl. 2 KDS closure covers, with trowel flange, tissue coated or roughened, surrounding approx. 7 cm for a secure connection of bitumen or reactive sealing (e.g. KMB) or a fresh concrete composite system, for later installation of media lines using KRASO System Sealing Insert KDS 150 or for connection of empty pipe hoses using KRASO System Cover KDS 150 | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the double wall penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings: public buildings, hospitals, technical-scientific institutions or in the industrial or commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45 ° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Cable Penetration KDS 150 single wall penetration with trowel flange
cable penetration system for concreting, with gas- and water pressure tight surrounding KRASO 4 Seal, incl. KDS closure cover, with trowel flange, tissue coated or roughened, surrounding approx. 7 cm, for a secure connection of bitumen and reactive sealing or a fresh concrete composite system, for later installation of media lines using KRASO System Sealing Insert KDS or for connecting empty pipe hoses using KRASO System Cover | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -ECompatible, tight, secure - the single cable penetration system + Compatible with all other current systems! Tight due to the water pressure tight surrounding KRASO 4 Seal! Secure due to break-resistant solid wall material! + The intelligent, all-purpose and flexible cable penetration system for complex new buildings:public buildings, hospitals, technical-scientific institutions or in the industrial and commercial sector+ Horizontal and vertical combination possible, installation at an angle of 45° with pre-installed clamps possible, also available for precast walls or as integration into the sealing of larger areas+ The matching accessories for every purpose! + DafStB waterproof concrete guideline: stress class 1 + 2
