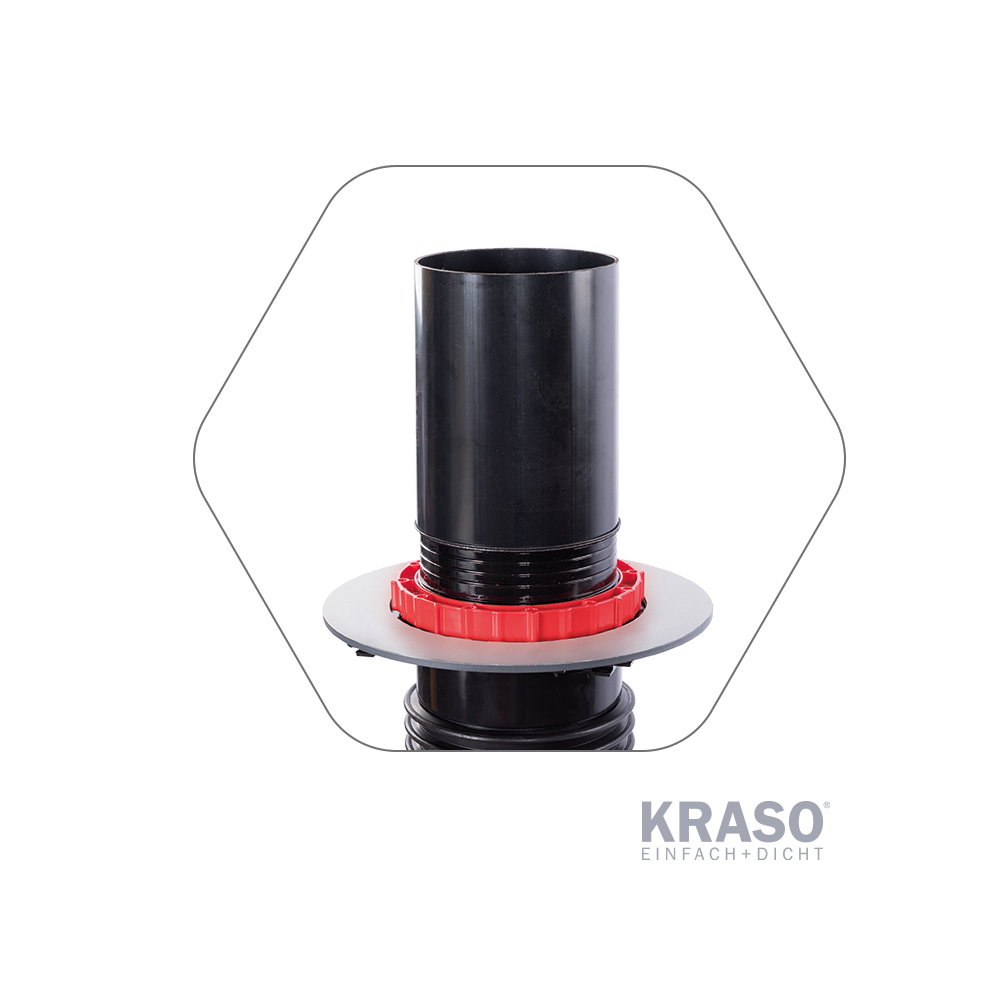

KRASO Builder's Convenience Box - floor - 150
KRASO Builder's Convenience Box - floor - 150
single utility connection for supply lines, for buildings without basement, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1-E
The safe multi utility connection for larger media lines
+ The safe utility connection for larger media lines for buildings without basement, e.g. electricity or water for residential buildings or commercial buildings
+ Usable with KRASO Sealing Insert with large flange as utility connection entry or outlet: e.g. for charging stations in residential buildings (flat ownership modernisation law - WEMoG)
+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!
+ Radon-tight
+ Stable installation device incl. rigid empty pipe with bending radius from 1000 mm
+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover
+ Including empty pipe insert (25 cm, internal diameter: 150 mm) for a flexible floor construction
+ Internal installation of media lines via KRASO Sealing Inserts: various designs with stepless onion ring technology
+ External optional connection possibilities: connection to KRASO FLS, cable protective hoses DN 110 or DN 160 or KG empty pipe systems with DN 160
+ Optionally available: KRASO Trowel Flange
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
rigid empty pipe 150 incl. stable installation device, empty pipe insert ID150, approx. 25 cm, KRASO Sealing Insert with large flange for the installation in KRASO Empty Pipe Insert, KRASO System Cover for the connection of on-site empty pipe
Downloads
|
Type / Item |
KRASO BKP - floor - 150 |
|||
|
Height to TEUF in mm |
approx. 1220 |
|||
|
Height-adjustable to TEFF in mm to max. |
approx. 1470 |
|||
|
Bending radius mm |
1000 |
|||
|
KRASO Sealing Insert large flange: |
Design 1 |
Design 2 |
Design 3 |
Design 4 |
|
Stepless onion ring technology: external DN cable from ... to ... in mm |
3 x 6 - 52 mm |
4 x 6 - 18 mm and |
6 x 6 - 38 mm |
1 x 50 - 92 mm |
|
KRASO System Cover - either: |
|
|||
|
|
||||
|
KRASO BKP - floor - 150 |
821 € |
|||
|
optional: KRASO Trowel Flange |
93 € |
|||
