KRASO Basement Drain

Type
Foil flange

KRASO Basement Drain

for installation in areas without traffic and for the connection of 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E


For a dry basement

+ KRASO Basement Drain with integrated removable backwater and odour stopper!

+ For the connection of up to 3 intake pipes!

+ Drainage capacity: 1,8 l per second!

+ With height-adjustable insert frame from 30 to 60 mm.

+ Either with plastic or stainless steel grate.

+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!

+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.

+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E

Info

Scope of supply:

KRASO
Basement Drain with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20x20 cm, class K3 • KRASO Basement Drain with foil flange, with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20 x 20 cm, class K3

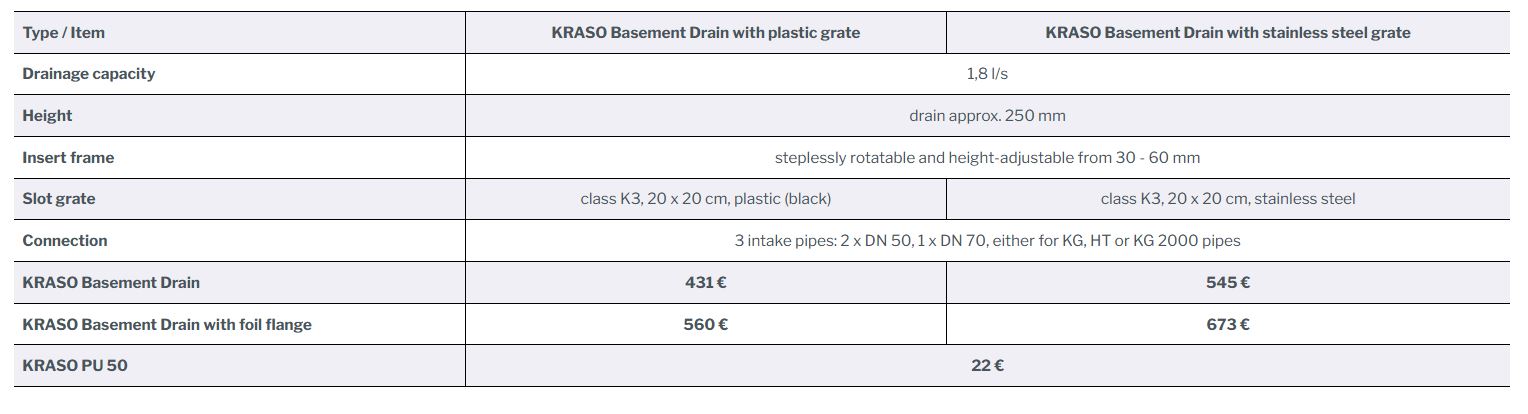

Type / Item

KRASO Basement Drain with plastic grate

KRASO Basement Drain with stainless steel grate

Drainage capacity

1,8 l/s

Height

drain approx. 250 mm

Insert frame

from 30 - 60 mm can be rotated and is fully height-adjustable

Slot grate

class K3, 20 x 20 cm, plastic (black)

class K3, 20 x 20 cm, stainless steel

Connection

3 intake pipes: 2 x DN 50, 1 x DN 70, either for KG, HT or KG 2000 - pipes

KRASO Drains - Accessories
accessories for KRASO Drains + KRASO Basement Drain insert frame extension+ KRASO Yard-/Parking Level Drain Type 1,5 insert frame extension
KRASO Yard-/Parking Level Drain
for installation in areas with traffic, drainage capacity: 4,3 l/s according DIN EN 1253, with water pressure tight surrounding, thermally welded KRASO 4 Seal The high-performance drain for e.g. underground car parks + KRASO Yard-/Parking Level Drain with 4,3 l/s drainage capacity according DIN EN 1253. + With frost proof odour barrier and removable sand trap basket. + Load class A up to 1,5 t or load class B up to 12,5 t. + Connection either for KG/HT or KG 2000 pipes DN 110. + With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
KRASO Type LES
light shaft drainage system for concrete shafts| DafStB waterproof concrete guidline: Stress class 1 + 2 Light shaft drainage system for concrete shafts+ Flexible drainage system - for precast factories and in situ concrete. + Manifold components for individual demands. + Also available for retrofit installation. + DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Floor Drain
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Inside and outside - tight and dry + For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight! + Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs! + High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates. + Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Floor Drain - KG 2000
according DIN EN 1253 - for the installation in interior areas without traffic, for the drainage of grey water, drainage capacity: 1,79 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E Inside and outside - tight and dry + For interior areas, for basements, yards and parking levels: KRASO Drains for a reliable and water pressure tight drainage of water! Radon-tight! + Walkable and fit for traffic, frost proof and odour tight, backwater safe and thermally insulated: manifold versions for different needs! + High-quality components for a secure installation and use: solid wall material with thermally welded KRASO 4 Seal, plastic- or stainless steel grates.+ Additional accessories as completion for individual needs.+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
