KRASO Floor Penetration Type BDF

KRASO Floor Penetration Type BDF

floor penetration for the installation in waterproof base plates, for connection to KG/HT pipes

Also available as KG 2000!
for the installation in waterproof base plates with formed plug-in sleeve on one side, for the connection to system KG 2000 lines

Advantages of system KG 2000
» Polypropylene (PP)
» High impact strength
» Mineral-filled
» Smooth walls
» Long-lasting

Info

KRASO Type BDF
Scope of supply:
KRASO Type BDF with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Installation Cover

KRASO Type BDF with foil flange
Scope of supply:
KRASO Type BDF with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeve on one side, KRASO Foil Flange, oil- and bitumen resistant, surrounding app. 15 cm and KRASO Installation Cover
For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50

KRASO Type BDF - KG 2000
Scope of supply:
KRASO Type BDF - KG 2000  with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side and KRASO Installation Cover

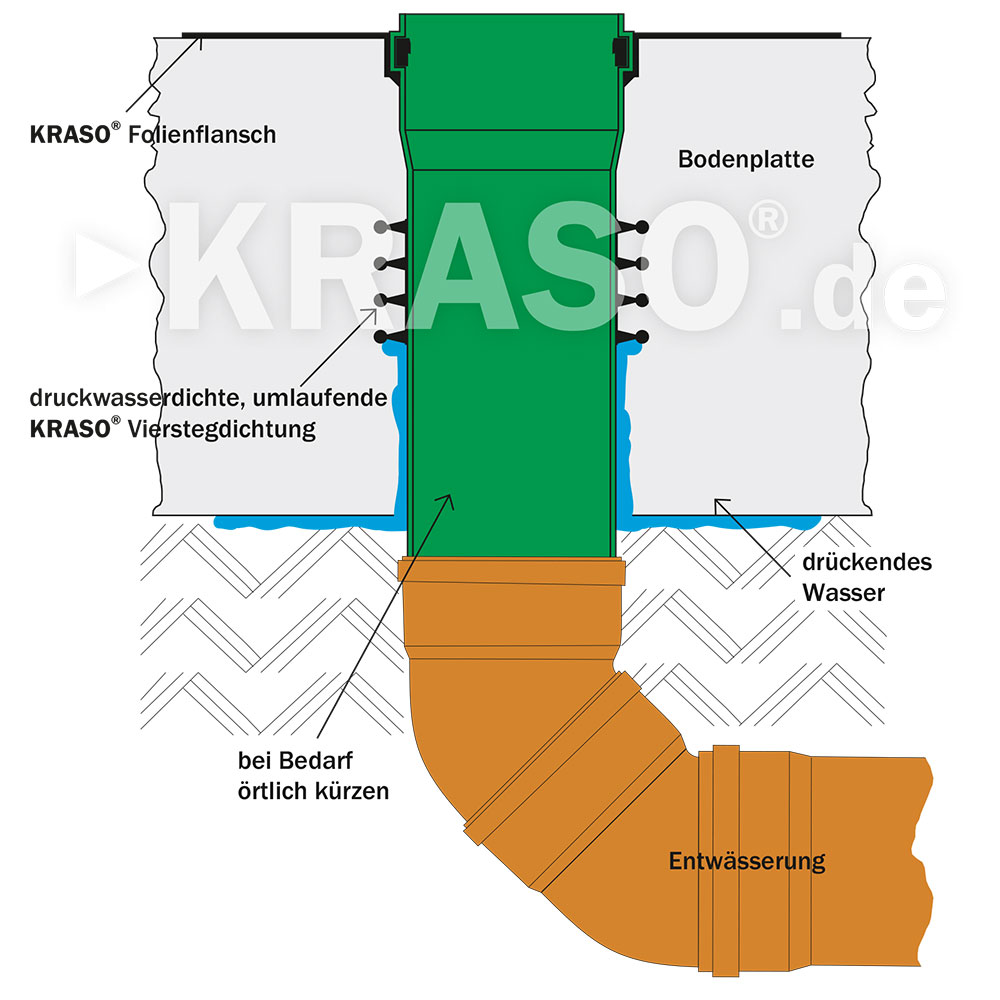

KRASO Type BDF - KG 2000 with foil flange
Scope of supply:
KRASO Type BDF - KG 2000 with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, KRASO Foil Flange, oil- and bitumen resistant, surrounding app. 15 cm and KRASO Installation Cover. For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50.
