KRASO Wall Penetration Type SML
grey iron waste water pipe according to DIN EN 877 for installation in waterproof concrete walls for connection to SML pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, styrofoam recess core on both sides
| DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
KRASO Type SML incl. 2 styrofoam recess cores on both sides
KRASO Type SML incl. 2 styrofoam recess cores on both sides
Downloads

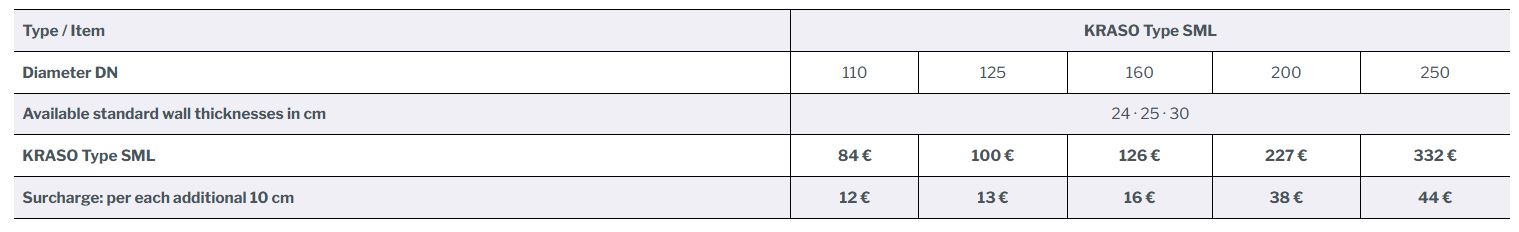

KRASO Wall Penetration Type SML
|
Type / Item |
KRASO Type SML |
||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
|
Available standard wall thicknesses in cm |
24 · 25 · 30 |
||||
|
KRASO Type SML |
84 € |
100 € |
126 € |
227 € |
332 € |
|
Surcharge: per each additional 10 cm |
12 € |
13 € |
16 € |
38 € |
44 € |
slide 6 to 8 of 6
KRASO Wall Penetration Type FR
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right direction of flow
+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight+ Dimensionally and pressure resistant solid material: low abrasion, easy installation at low temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FBV-FR
wall penetration for a compliant integration of fresh concrete composite films | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction using FBV system
+ Wall Penetration for a compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at our factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thanks to the KRASO Wall Penetration Type FR, waste water always maintains the correct flow direction! Unnecessary edges are prevented. Blocked pipes: impossible!
+ Due to the flexible yet watertight connection to the pipe system, stresses occurring caused by the setting of the KG pipes are minimised!
+ The basement remains dry and is protected against radon thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal!+ Made of solid wall material! Also available in KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStb waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FR for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at lower temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
