KRASO Wall Penetration Type B/SF 5 for KG 2000
KRASO Wall Penetration Type B/SF 5 for KG 2000
for installation in waterproof concrete walls for connection to KG 2000 pipes on both sides, with trowel flange on one side with dovetail groove for the secure connection of bitumen thick coating and reactive sealings, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Secure connection of bitumen and reactive sealings
+ Dimensionally stable and pressure-resistant solid wall material: low abrasion, installation even at lower temperatures
+ For KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting
+ Pipe and pipe material in accordance with DIN EN 14758 (KG 2000)
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Surrounding approx. 5 cm trowel flange on one side, for secure connection of bitumen thick coating such as KMB or reactive sealings: roughened or tissue coated
+ Trowel flange made of PP with dovetail groove as KRASO Type B/SF 5 - KG 2000 for the secure gripping of bitumen thick coating
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Type B/SF 5 for KG 2000, 2 KRASO Covers as an installation aid
KRASO Type B/SF 5 for KG 2000, 2 KRASO Covers as an installation aid
Further diameters and wall thicknesses available on request!
Downloads
KRASO Wall Penetration Type B/SF 5 for KG 2000

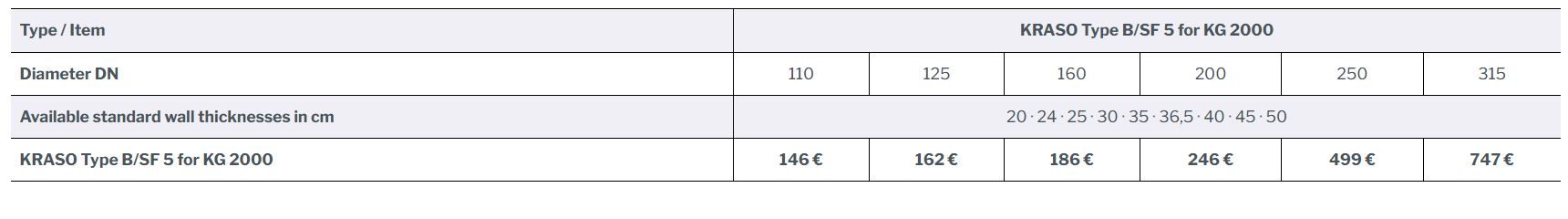

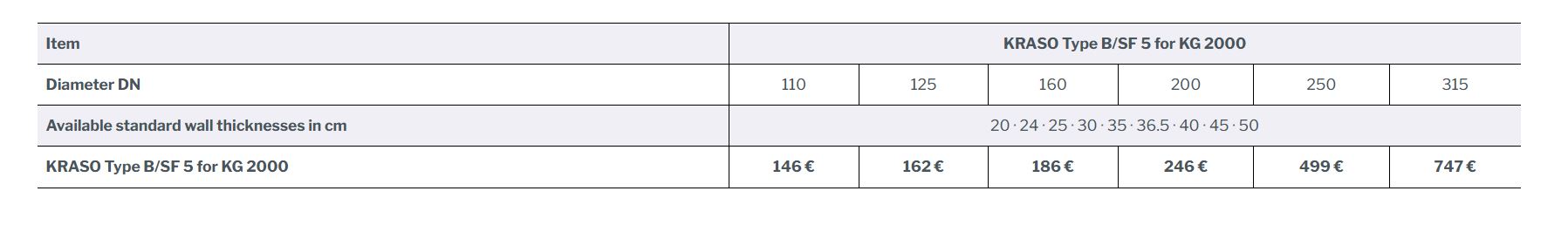

Item |
KRASO Type B/SF 5 for KG 2000 |
|||||
|
Diameter DN |
110 |
125 |
160 |
200 |
250 |
315 |
|
Available standard wall thicknesses in cm |
20 · 24 · 25 · 30 · 35 · 36.5 · 40 · 45 · 50 |
|||||
|
KRASO Type B/SF 5 for KG 2000 |
146 € |
162 € |
186 € |
246 € |
499 € |
747 € |
KRASO Wall Penetration Type FR for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid
| DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ For KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting + Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at lower temperatures+ In accordance with DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FR
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction+ One flow direction!+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid material: low abrasion, easy installation at low temperatures+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available for KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type FBV-FR
wall penetration for a compliant integration of fresh concrete composite films | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction using FBV system
+ Wall Penetration for a compliant integration of fresh concrete composite films+ Independent from the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at our factory+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Thanks to the KRASO Wall Penetration Type FR, waste water always maintains the correct flow direction! Unnecessary edges are prevented. Blocked pipes: impossible!
+ Due to the flexible yet watertight connection to the pipe system, stresses occurring caused by the setting of the KG pipes are minimised!
+ The basement remains dry and is protected against radon thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal!+ Made of solid wall material! Also available in KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting+ DafStb waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B for KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides, 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made for KG 2000 + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ For KG 2000: polypropylene (PP-M), mineral- filled, smooth walls, long-lasting
+ In accordance with DIN EN 14758 (KG 2000)+ Formed plug-in sleeve on both sides for connection to KG 2000 pipes+ Including two KRASO Covers as installation aid!+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material + KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon-tight!+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting+ Formed plug-in sleeve on both sides for connection to KG/HT pipes+ Including two KRASO Covers as an installation aid+ Also available as thermally insulated wall penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2
KRASO Wall Penetration Type Universal
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for KG/HT pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal, with markings for a simple shortening on-site to standard wall thicknesses
| DafStB waterproof concrete guideline: stress class 1 + 2The proven wall penetration made of solid wall material+ KRASO 4 Seal - MPA-tested up to 10 bar!+ IAF-tested: radon tight! + Dimensionally and
pressure resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG)+ KRASO Type Universal B: with formed plug-in sleeve on both sides for the connection of KG/HT pipes on both sides+ KRASO Type Universal D: with integrated push-through sleeve+ Markings for a simple shortening on-site to standard wall thicknesses
+ Including two KRASO Covers as installation aid
+ DafStB waterproof concrete guideline: stress class 1 + 2
Häufig gestellte Fragen (FAQ)
Wofür wird die KRASO Wanddurchführung Typ B/SF 5 für KG 2000 eingesetzt?
Die KRASO Wanddurchführung Typ B/SF 5 für KG 2000 wird für die sichere Durchführung von KG 2000 - Rohren durch WU-Betonwände eingesetzt und ermöglicht ein beidseitiges Anschließen der Rohrleitung.
Für welche Rohrarten ist die Wanddurchführung geeignet?
Sie ist speziell für KG 2000 - Rohre aus Polypropylen (PP) nach DIN EN 14758 konzipiert.
In welchen Wandarten kann die KRASO Wanddurchführung eingebaut werden?
Die Wanddurchführung ist für den Einbau in WU-Betonwände („Weiße Wanne“) geeignet.
Welche Abdichtungen können an den Spachtelflansch angeschlossen werden?
Der einseitige Spachtelflansch mit Schwalbenschwanznut ermöglicht eine sichere Anbindung an Bitumenabdichtungen und Reaktivabdichtungen.
Ist die KRASO Wanddurchführung druckwasserdicht?
Ja, die integrierte KRASO Vierstegdichtung ist MPA-geprüft bis 10 bar und sorgt für eine dauerhaft wasserdichte Rohrdurchführung.
Ist das Produkt auch radondicht?
Ja, die KRASO Wanddurchführung Typ B/SF 5 für KG 2000 ist IAF-geprüft und radondicht.
Welche Normen und Richtlinien erfüllt die Wanddurchführung?
Sie entspricht der WU-Richtlinie (Beanspruchungsklasse 1 + 2) sowie DIN 18533 W1 -E und W2.1 -E.
Welche Durchmesser und Wandstärken sind verfügbar?
Standardmäßig sind Durchmesser von DN 110 bis DN 315 sowie Wandstärken von 20 bis 50 cm erhältlich. Abweichende Maße sind auf Anfrage möglich.
Was ist im Lieferumfang enthalten?
Zum Lieferumfang gehören die KRASO Wanddurchführung Typ B/SF 5 für KG 2000 sowie 2 KRASO Deckel als Einbauhilfe.
Welche Vorteile bietet der Werkstoff Polypropylen (PP)?
Polypropylen ist mineralverstärkt, glattwandig und langlebig.
