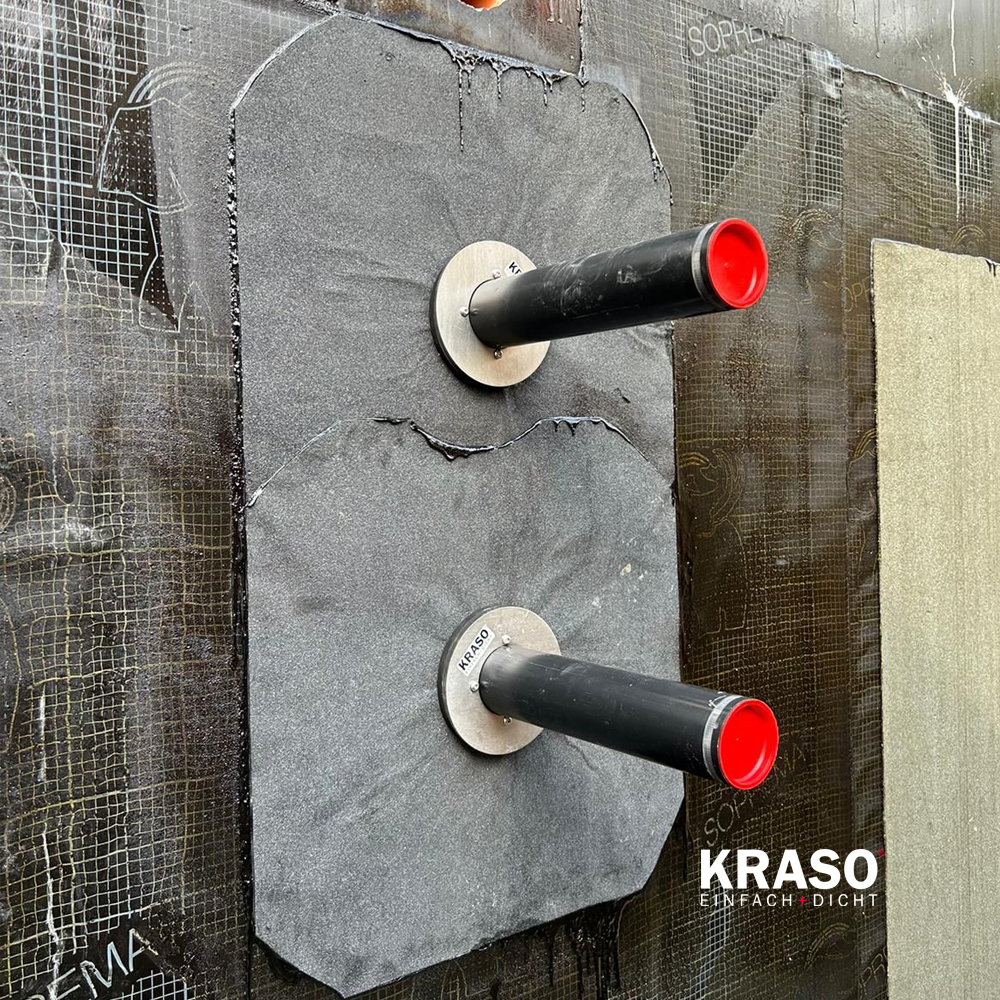

KRASO Builder's Convenience Box - wall - ESH

single utility connection for supply lines (gas, water, electricity or telecommunication) for buildings with basement, incl. extension set | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

Convenient, safe, tight connection to the network -  gas, water, electricity or telecommunication



+ Simple and safe single utility connection for new buildings or rehabilitation for buildings with basement

+ Flexible installation: gas, water, electricity or telecommunication - including installation/mounting set

+ Double installation possible: electricity and telecommunication!

+ DVGW-certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!

+ For core drilling and casing DN 100 (99 - 103 mm). For precast walls and in-situ concrete walls!

+ For wall thicknesses from 160 - 500 mm

+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)

+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm

+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!

+ Gas and odour-tight - high-quality in terms of TA-Air!

+ Split end plugs for easy installation!

+ Including extension set

+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

Info

From 05-01-2026: price increase + 4.7%

Scope of supply:

KRASO Builder’s Convenience Box - wall - ESH including

as well as one of the following BKP gas installation kits:
• internal sealing element with pre-installed casing pipe incl. protective cover for the installation of supply lines such as gas, water, electricity, telecommunication
- external sealing element
- installation instructions KRASO BKP - wall - ESH


• KRASO BKP - wall - ESH - Extension Set including
- double sleeve DN 75
- 2 x sealing ring
- lubricant


• Schuck DN 25 consists of primary and secondary sealing as well as gas end plug
• RMA DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 32 consists of primary and secondary sealing as well as gas end plug

Downloads

Item

KRASO BKP - wall - ESH

Wall thickness from ... to ... in mm

160 - 500

Diameter casing or core drilling min ... max ... in mm

99 - 103

Length complete system in mm

630

Length x width internal sealing element in mm

120 x 120

Seal width internal sealing element in mm

40

Diameter external sealing element with flange seal in mm

160

Seal width external sealing element with flange seal in mm

80

Internal diameter casing pipe in mm

68

External diameter casing pipe in mm

75

KRASO BKP - wall - ESH

277 €
KRASO Cable Inlet Box System KDS 150
KRASO Cable Inlet Box System KDS 150
for the installation of cables and utility lines such as e.g. water - electricity - telecommunication etc. in buildings without basement. Attention: do not use a KRASO System Sealing Insert KDS 150 for the sealing of media lines, but use KRASO Sealing Inserts instead! | DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -EThe flexible system for industry and commercial buildings+ The secure and reliable way for the installation of cables and pipes right into buildings: with a radius of 650 mm or 1000 mm, main pipes and cable protective hoses can be connected at a 90-degree angle to buildings without basement+ KRASO Cable Penetration System KDS 150: flexible and combinable in various ways+ The KRASO Cable Inlet Box System KDS 150 can be expanded to any number of rows thanks to the plug-in system - depending on your requirements!+ For the installation of cables and pipes such as water, electricity, telecommunication etc. into buildings without a basement: the perfect solution for industrial and commercial buildings!+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal+ With stable installation device for correct positioning before concreting+ Flexible plug-in possibilities on the outer side using KRASO Cable Penetration System KDS 150+ Additional media pipe sealing from the inside using KRASO Sealing Inserts+ Included in the scope of supply: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E
Cable Inlet Box KDS 150 - special
Cable Inlet Box KDS 150 - special
bending radius approx. 200 cm, for the secure connection of supply lines like e.g. water - electricity - telecommunication into buildings without basement. With installation device, empty pipe extension 20 cm and water pressure tight surrounding KRASO 4 Seal and 2 KRASO KDS Closure Covers
KRASO Y-Wrench
KRASO Y-Wrench
Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150 + With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO FLS - Flexible Empty Pipe System
KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4 and 3 bar, under-pressures of 0.7 and 0.5 bar , heavy design for high mechanical load, smooth interior for smooth cable pulling, smooth exterior for optimal sealing, flexible, enhanced resistance against pressure and vacuum, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)KRASO KDS - Accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

Häufig gestellte Fragen (FAQ)

Das KRASO Bauherren-Komfortpaket - Wand - ESH ist eine Einsparten-Hauseinführung für unterkellerte Gebäude. Es dient der sicheren Einführung einer einzelnen Versorgungsleitung für Gas, Wasser, Strom oder Telekommunikation durch die Kellerwand.

Das System ist flexibel belegbar für Gas, Wasser, Strom oder Telekommunikation. Zusätzlich ist auch eine zweifache Belegung mit Strom und Telekommunikation möglich.

Ja. Das Bauherren-Komfortpaket verfügt über eine DVGW-Zulassung nach VP 601 und ist auf Gas- und Druckwasserdichtigkeit bis 1 bar geprüft.

Die Hauseinführung eignet sich für Ortbetonwände und Fertigteilwände bei Neubau und Sanierung. Der Einbau erfolgt über Kernbohrung oder Futterrohr DN 100 (99–103 mm).

Das KRASO BKP - Wand - ESH ist für Wandstärken von 160 bis 500 mm ausgelegt. Ein Verlängerungsset ist bereits im Lieferumfang enthalten, sodass keine zusätzlichen Komponenten benötigt werden.

Ja. Es ist für WU-Betonkonstruktionen mit Beanspruchungsklasse 1 und 2 geeignet. Das Außendichtelement erfüllt die Anforderungen der DIN 18533 W1- E und W2.1- E (ständig oder zeitweise drückendes Wasser).

Ja. Das System ist radondicht (IAF geprüft) gemäß FHRK Merkblatt MB 101, methangasbeständig sowie gas- und geruchsdicht im Sinne der TA-Luft.

Im Lieferumfang sind enthalten:

  • Innendichtelement mit vormontiertem Mantelrohr und Schutzkappe
  • Außendichtelement mit Flanschdichtung
  • Dichteinsatz für Strom/Wasser mit Primär- und Sekundärdichtung
  • Geteilte Endstopfen für einfache Montage
  • Verlängerungsset (Doppelsteckmuffe DN 75, Dichtungsringe, Gleitmittel)
  • Montageanleitung
Damit ist das System komplett montagefertig.

Die geteilten Endstopfen ermöglichen eine besonders einfache und zeitsparende Montage, da Leitungen nicht aufwendig eingefädelt werden müssen – ideal für die Baustelle.

Das System ist ideal für private Bauherren, Installateure und Planer, die eine kompakte, normkonforme und geprüfte Einspartenlösung suchen – zuverlässig umgesetzt von KRASO.
