KRASO BKP - floor - NFE - installation kit

optional available installation kit for KRASO Builder's Convenience Box - floor - NFE, consisting of:

KRASO Sealing Insert Type DD/GR - GF for ribbed pipes, with large flange, MPA tested up to 1,0 bar
central pressure distribution for internal fixing of the district heating line

Info

Scope of supply:

KRASO Sealing Insert Type DD/GR - GF for ribbed pipes, with large flange, MPA tested up to 1,0 bar
central pressure distribution for internal fixing of the district heating line

Downloads

Produktinformation

Produktinfo_KRASO_bkp_nfe_basis (8.06 MiB)

Prüfzeugnis

Prüfbericht_KRASO_Dichteinsatz_Typ_DD_GR (3.51 MiB)

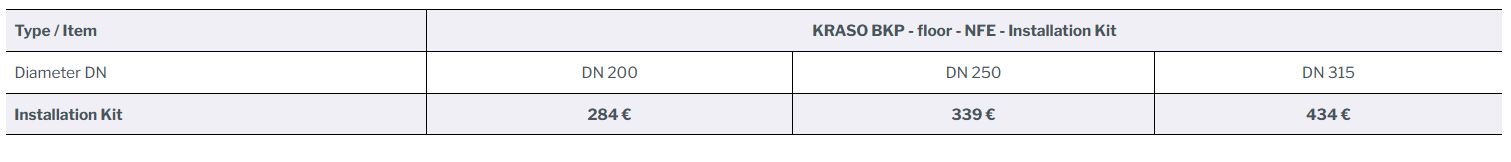

Type / Item	KRASO BKP - floor - NFE - installation kit
Diameter DN	DN 200	DN 250	DN 315
