KRASO Sealing Insert Type SD 30 - split - Special

KRASO Sealing Insert Type SD 30 - split - Special

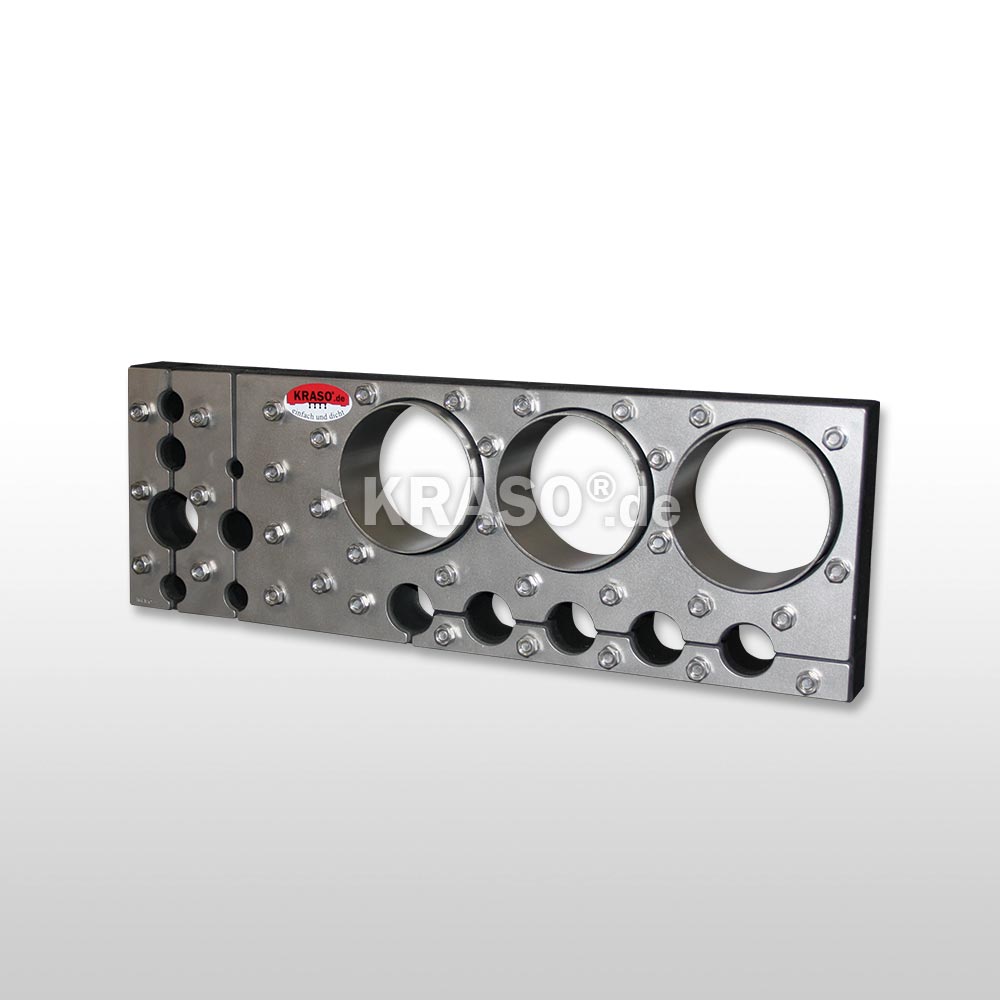

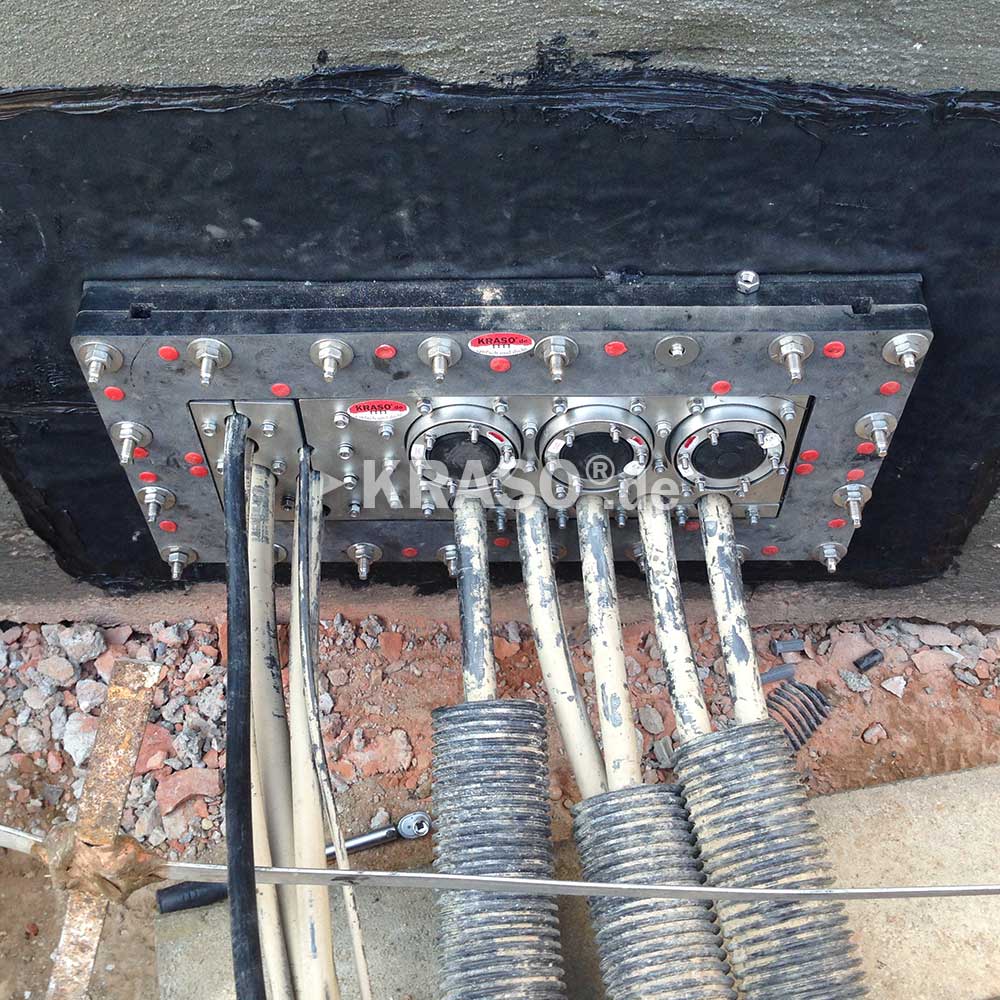

KRASO Sealing Insert Type SD 30 - split - special
external diameter: 550 x 190 mm, non-corrosive stainless steel V2A
for the sealing of the following media pipes or cables:
1 x 19 mm; 1 x 21 mm; 1 x 40 mm; 1 x 16 mm; 1 x 10 mm;
1 x 26 mm; 1 x 17 mm; 3 x 31 mm; 2 x 32 mm
including three welded stainless steel pipe sockets DN 100,
with 3 KRASO Sealing Inserts Type Universal 100 DD,
against pressing water, MPA tested up to 2,5 bar, 30 mm seal

BV: Jena

Info

KRASO Special Designs - stainless steel

» KRASO Special Designs made of stainless steel: thanks to modern water-jet- and laser cutting techniques we are able to produce precise special mounting parts made of stainless steel according your requirements.
