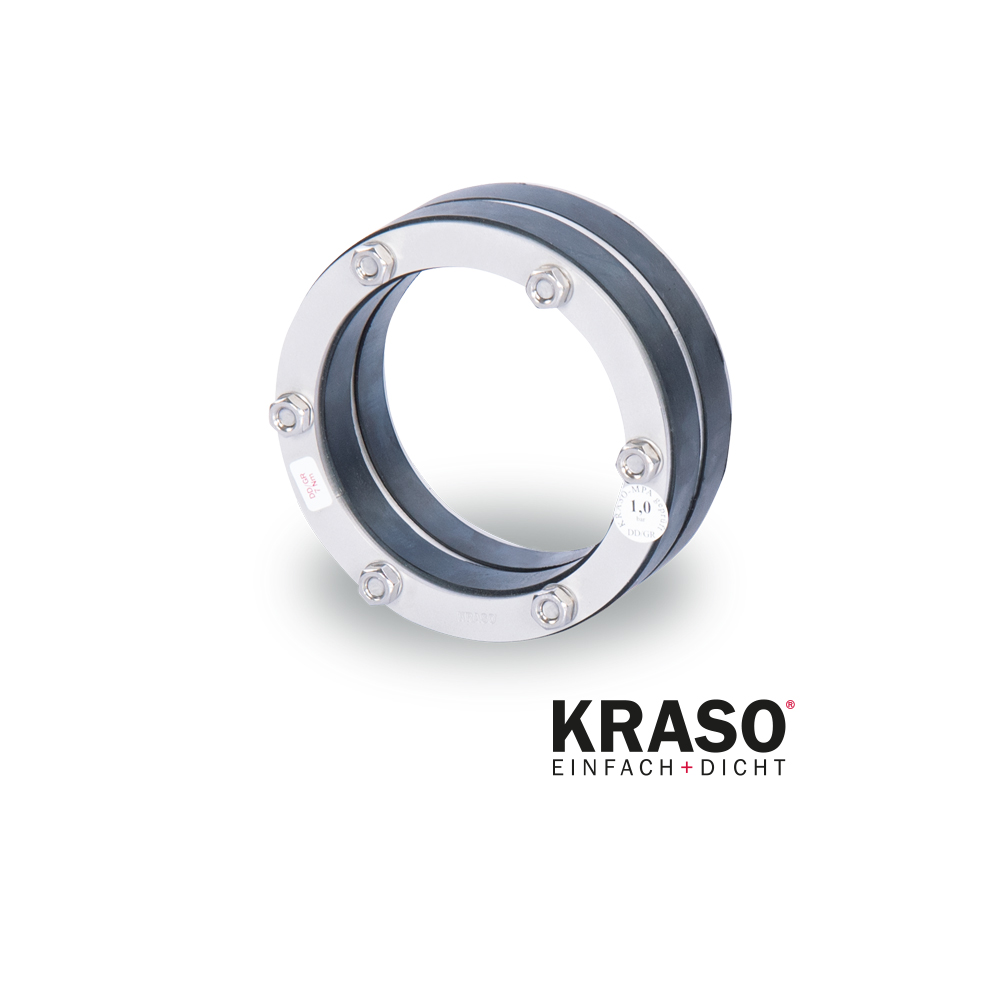

KRASO Sealing Insert Type GR
for ribbed or corrugated media pipes, against pressing water up to 1,0 bar, with 40 mm (DD) or 80 mm (VD) specially soft seal and central pressure distribution plate for evenly distribution of pressure with corrugated media pipes, prevents damages or leaks, non-corrosive stainless steel V2A

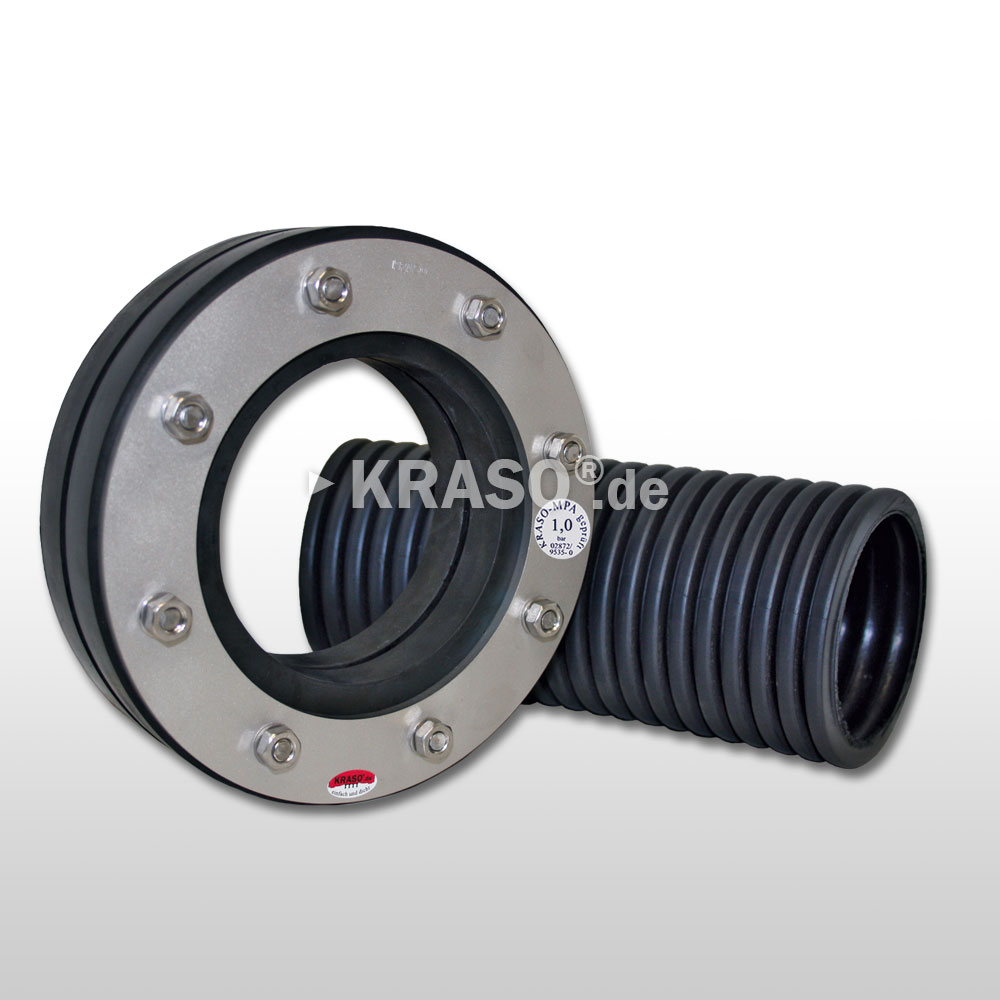

The sealing insert for ribbed media pipes
» Double sealing with 40 mm seal (2 x 20 mm) or four-fold sealing with 80 mm seal (2 x 40 mm) and specially soft sealing rubber
» 5 mm thick clamping plates made of non-corrosive stainless steel V2A
» With central pressure distribution plate for the reliable sealing of ribbed and corrugated media pipes
» More studs for even pressure distribution
» Welded-on studs instead of through-bolts

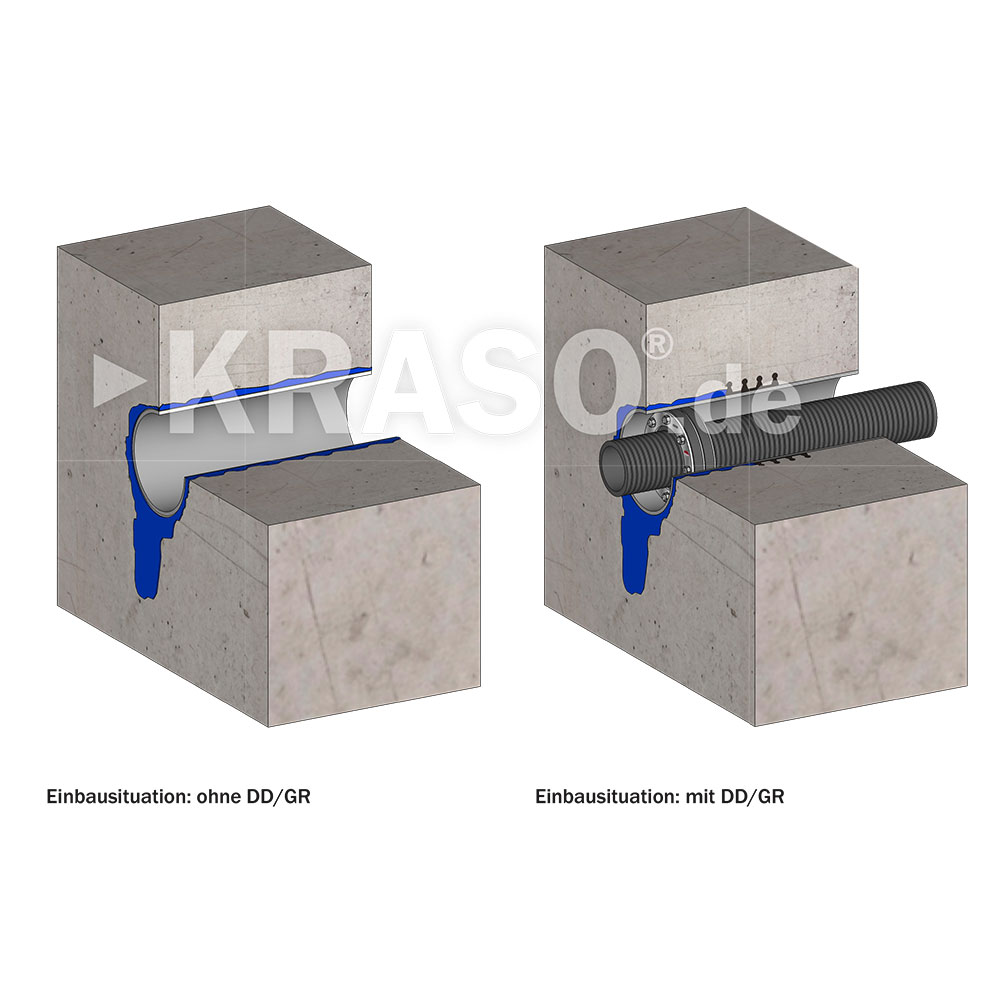

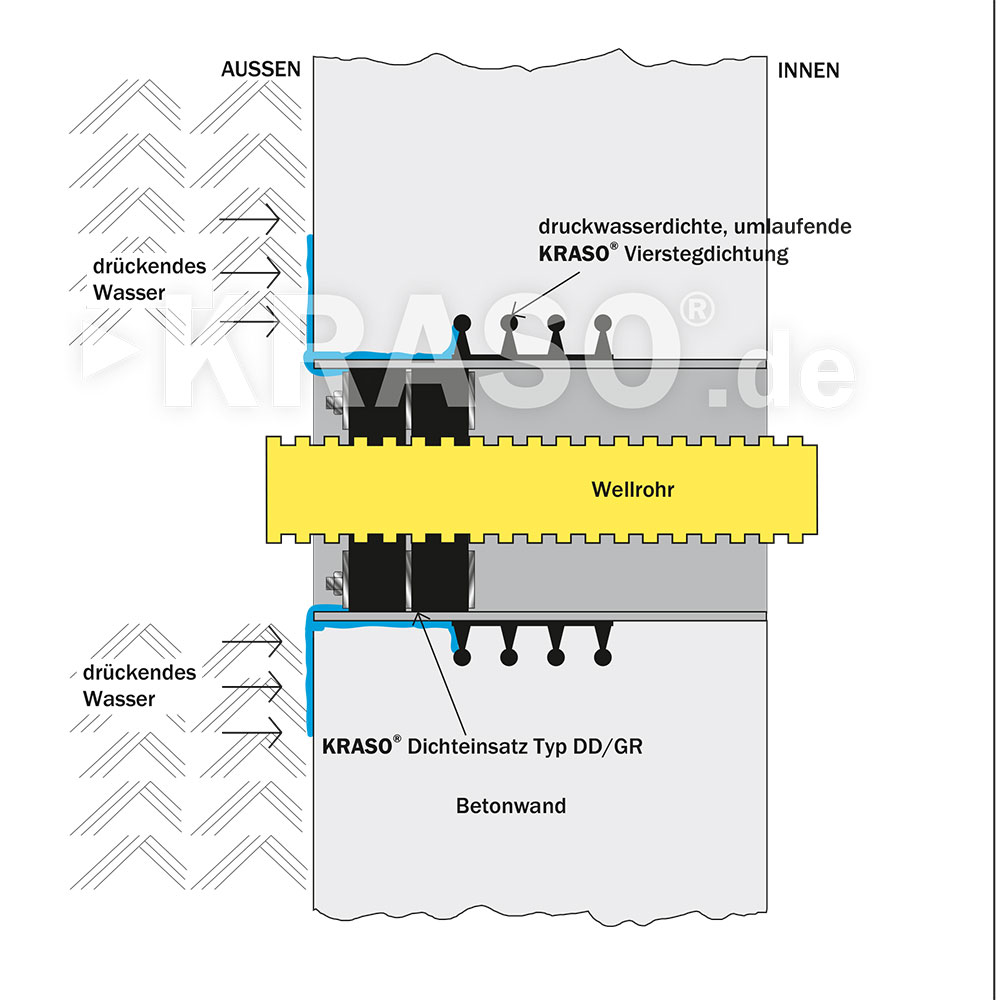

Corrugated and ribbed pipes have become essential for the installation of media lines and pipes in residential and industrial buildings. We developed the KRASO Sealing Insert Type GR so that these as well can be sealed reliably against pressurised water. Thanks to the especially soft sealing rubber and a central pressure distribution plate, the media pipes can be sealed off securely without any risk of damage.
Info
KRASO Sealing Insert Type GR/DD
Scope of supply:
KRASO Sealing Insert Type GR/DD, double sealing, against pressing water up to 1,0 bar, with 40 mm specially soft seal and central pressure distribution plate
KRASO Sealing Insert Type GR/VD
Scope of supply:
KRASO Sealing Insert Type GR/VD, four-fold sealing, against pressing water up to 1,0 bar, with 80 mm specially soft sealing and central pressure distribution plate
